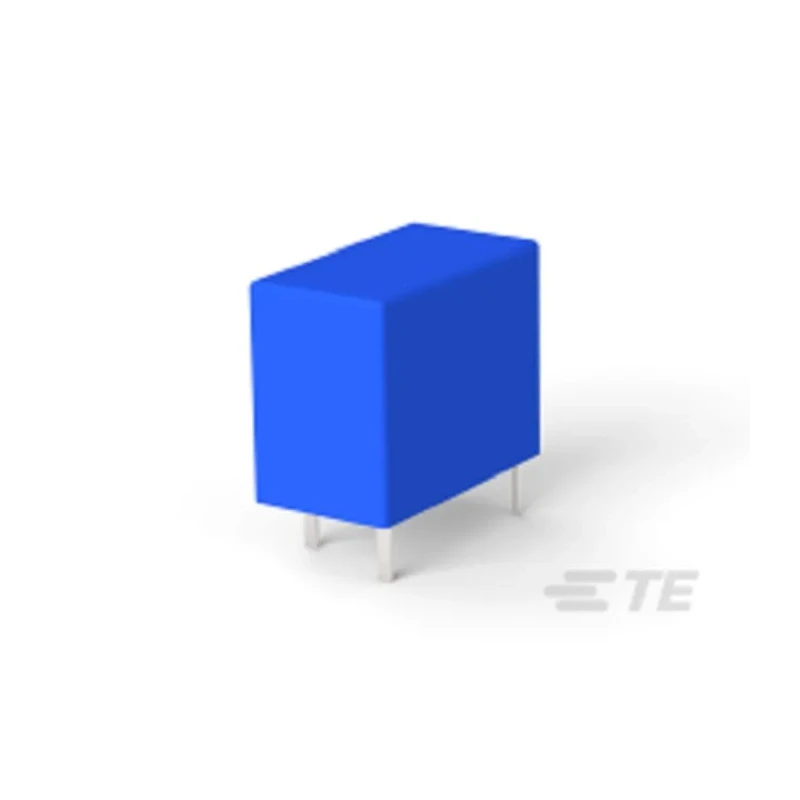

TE Connectivity PCB Monostable Relay 12V DC Coil 10A Switching Current SPST 1461402-6
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, RoHS |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Designed for printed circuit board (PCB) mounting with solder terminals.
- Operates efficiently between -40°C to 85°C temperature range.
- Constructed with silver alloy contacts for reliable connectivity.
- Coil resistance of 100 ohms with 400mW coil power consumption.
- Supports switching voltages up to 30V DC and 250V AC.
- Compact form factor with dimensions 20mm length, 15mm height, and 10mm width.
- Complies with UL and RoHS standards ensuring quality and environmental safety.
- Contact resistance rated at 50 milliohms for low loss switching.
Product Description
TE Connectivity 1461402-6 PCB Monostable Relay is a compact and high-performance relay designed for printed circuit board applications. It features a 12V DC coil with a rated switching current of 10A, configured as Single Pole Single Throw (SPST), making it suitable for a wide range of electrical and automation controls.
The relay supports operational temperatures from -40°C to 85°C, ensuring robust performance in various industrial environments. Its silver alloy contact material provides excellent conductivity and durability, while the coil resistance is maintained at 100 ohms, with a low coil power consumption of 400mW. This makes the relay energy efficient and well-suited for sensitive control circuits.
Dimensions are compact with 20mm length, 15mm height, and 10mm width, enabling easy integration into PCB designs. The relay can switch DC voltages up to 30V and AC voltages up to 250V, supporting diverse application needs.
PCB mount type with solder terminal connections. UL and RoHS certified ensuring adherence to safety and environmental standards. Contact resistance of 50mΩ ensures minimal signal loss during switching. Designed for industrial, laboratory, HVAC, manufacturing, and automation use cases requiring reliable relay switching.
This TE Connectivity relay is made in China with stringent quality controls for reliability. It is ideal for engineers and technicians designing control circuits, industrial automation systems, and signal conditioning modules.
Explore more high-quality relays and Power Relays on EnvMart to optimize your electronics and electrical projects with trusted brands and detailed technical specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a rated switching current of 10A.
It operates with a coil voltage of 12V DC.
The dimensions are 20mm in length, 15mm in height, and 10mm in width.
It can operate efficiently between -40°C and 85°C.
This relay is designed for PCB mounting with solder terminals.
The contact configuration is Single Pole Single Throw (SPST).
It supports switching voltages up to 30V DC and 250V AC.
The contact resistance is rated at 50 milliohms (50mΩ).
The coil resistance is 100 ohms.
It complies with UL and RoHS standards.
The coil power consumption is 400mW.
This relay is manufactured in China.
