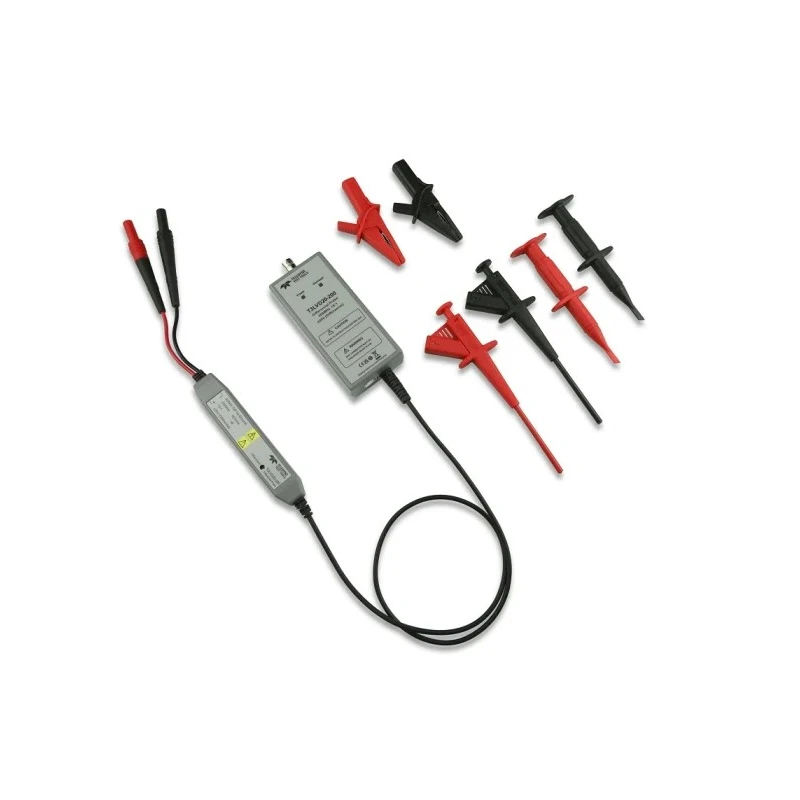

Teledyne LeCroy Differential Oscilloscope Probe, 200 MHz Bandwidth, 10:1 Attenuation, BNC Connector T3LVD20-200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Teledyne LeCroy |
| Model | T3LVD20-200 |
| Connector Type | BNC |
| Bandwidth | 200MHz |
| Probe type | Differential |
| Rise Time | 1.75ns |
| Attenuation | 10:1 |
| 10 | 1 |
| Safety Category Level | CAT III |
| Maximum Common Mode Input Voltage | 20V |
| Teledyne LeCroy T3LVD20-200 Oscilloscope Probe, Differential Type, 200 MHz, 10 | 1, BNC Connector |
Key Features
- Active differential probe designed for low voltage signals with 200 MHz bandwidth.
- Offers ±20 V differential input and ±60 V maximum common mode input voltage.
- High common mode rejection ratio exceeding 50 dB at 10 MHz for accurate measurements.
- Fast rise time of 1.75 ns enables capturing sharp signal transitions.
- Compatible with oscilloscopes having 50 Ω or 1 MΩ BNC input impedance.
- CAT III safety rated for use in industrial environments.
- Ideal for embedded power design, consumer electronics, automotive, and industrial control applications.
- Features combined single ended and differential measurement capability.
Product Description
Teledyne LeCroy T3LVD20-200 is a differential oscilloscope probe designed for precise measurement of low voltage signals with bandwidth up to 200 MHz and 10:1 attenuation. This active probe supports ±20 V differential input signals (DC plus peak AC) and can tolerate up to ±60 V maximum common mode voltage with high rejection of noise and interference.
The probe features a fast rise time of 1.75 nanoseconds allowing capture of sharp transitions and accurate waveform reproduction. With a high common mode rejection ratio greater than 50 dB at 10 MHz, it ensures signal integrity in challenging measurement environments.
This model connects using a standard BNC connector compatible with oscilloscopes having input impedances of 50 Ω or 1 MΩ, offering flexibility across various test instruments. Its CAT III safety rating makes it suitable for use in industrial and laboratory environments where electrical safety standards are critical.
Applications include testing embedded low voltage power designs, power components, consumer electronics, photovoltaic system designs, automotive electronics, military and industrial control electronics, and communication buses such as CAN, LIN, I2C, SPI, UART, and MIL-STD-1553B.
The device is built to provide combined single ended and differential measurement capability while imposing low loading on the test circuit, ensuring accurate and reliable results. Manufactured in China, the probe is delivered new and ready for deployment in demanding electronics test and measurement tasks.
Active differential probe with 200 MHz bandwidth and 10:1 attenuation. ±20 V differential input and ±60 V maximum common mode voltage input. High common mode rejection ratio for noise-free measurements. Fast rise time of 1.75 ns for sharp waveform capture.
BNC connector compatible with standard oscilloscopes. CAT III safety rating for industrial use. Applicable in various electronic and industrial control domains. For professional test and measurement requirements, browse more Teledyne LeCroy Oscilloscope Probes and related accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This differential oscilloscope probe has a bandwidth of 200 MHz, allowing it to accurately capture signals within that frequency range.
The T3LVD20-200 can handle a maximum common mode input voltage of ±60 V, providing flexibility in various measurement scenarios.
It uses a standard BNC connector, making it compatible with oscilloscopes that have 50 Ω or 1 MΩ input impedance.
The rise time of this probe is 1.75 nanoseconds, which enables it to capture sharp signal transitions effectively.
The T3LVD20-200 has an attenuation ratio of 10:1, which is suitable for measuring low voltage signals.
This model is rated as CAT III, making it suitable for use in industrial environments where safety standards are important.
It provides combined single ended and differential measurement capabilities, allowing for versatile testing options.
This probe is ideal for applications in embedded power design, consumer electronics, automotive electronics, and industrial control systems.
The T3LVD20-200 features a high common mode rejection ratio exceeding 50 dB at 10 MHz, ensuring accurate measurements in noisy environments.
It supports a differential input voltage range of ±20 V, accommodating both DC and peak AC signals.
This probe is manufactured in China, ensuring it meets the necessary production standards.
It is compatible with oscilloscopes that have either 50 Ω or 1 MΩ input impedance, providing versatility for various testing setups.
