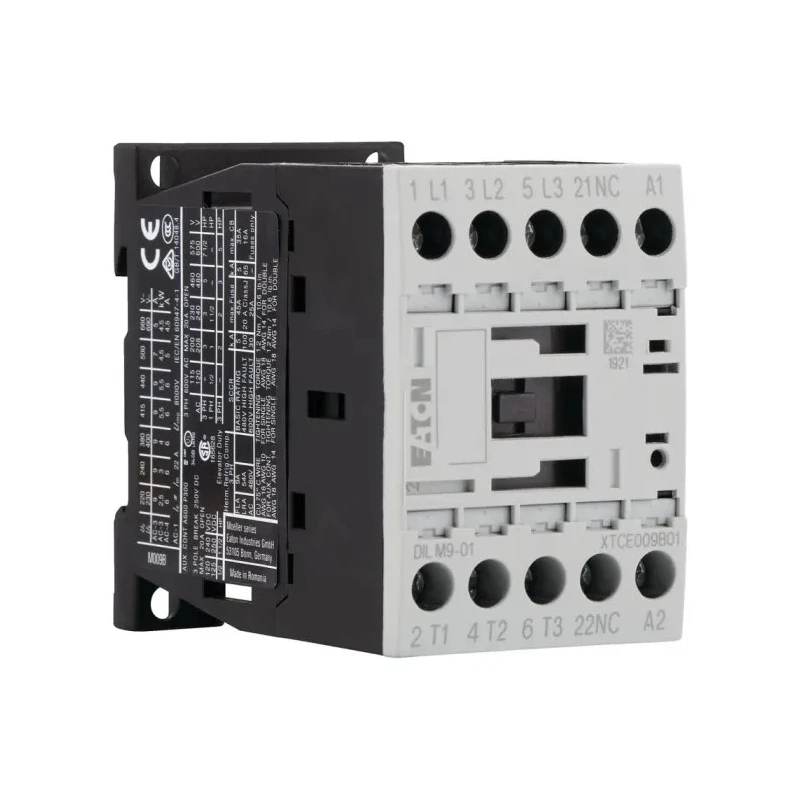

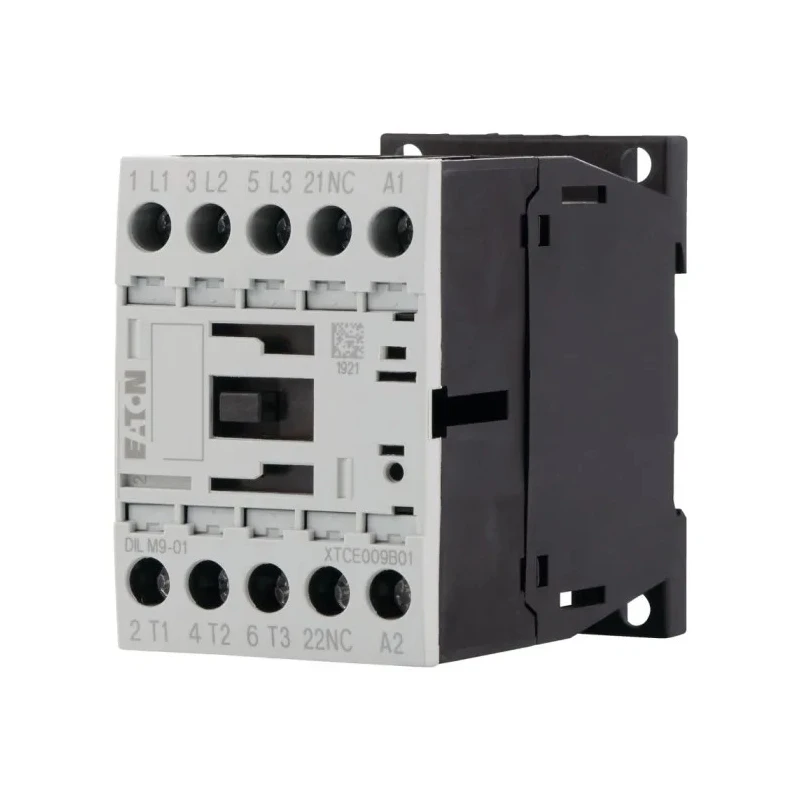

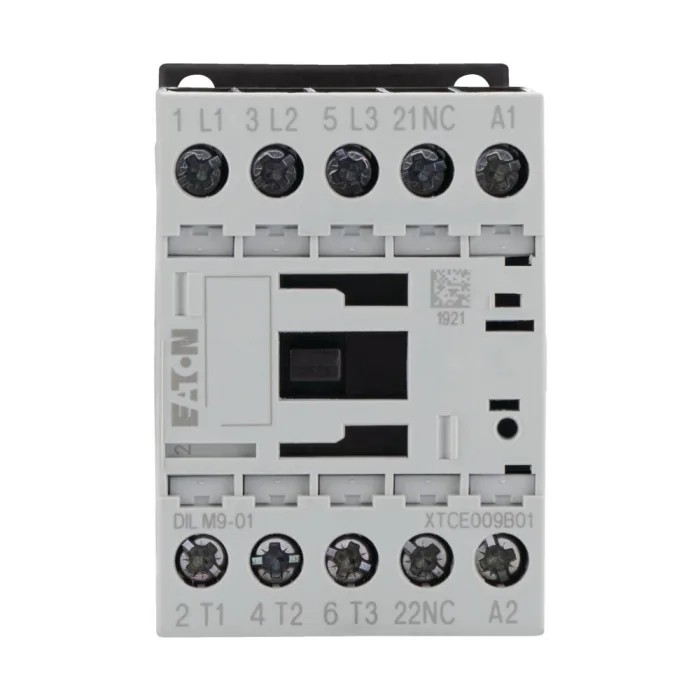

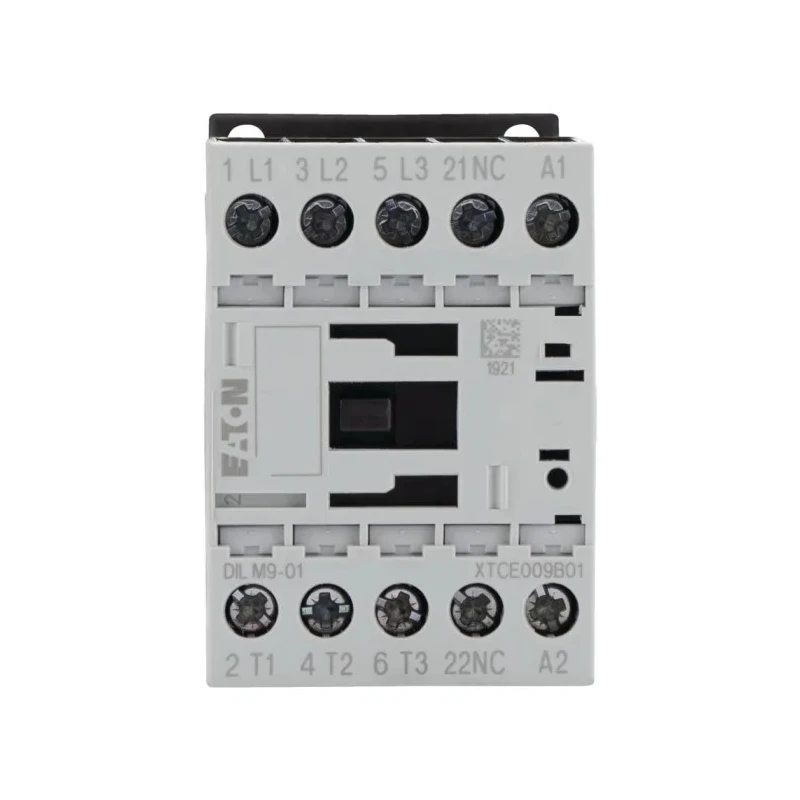

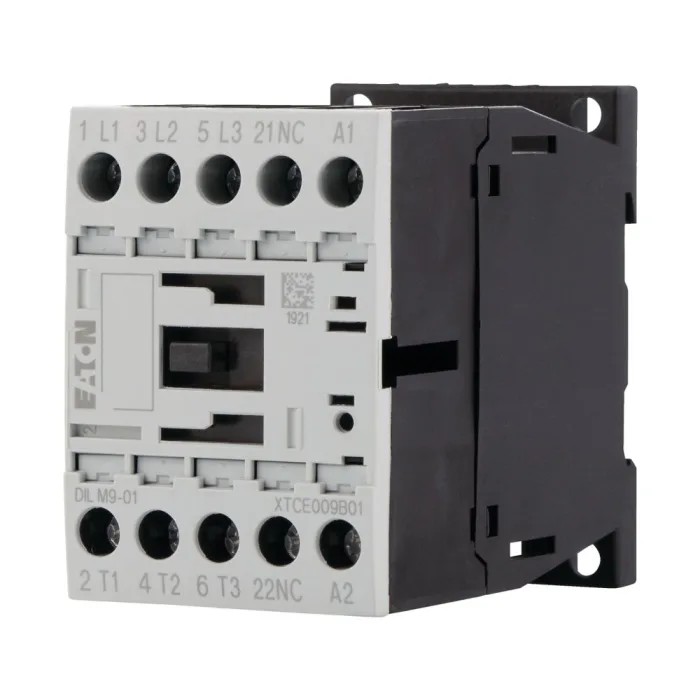

Eaton Motor Control Contactor 24V AC Coil, 3-Pole, 9 A, 4 kW, 400V, 1 NC - Model 276712 DILM9-01(24V50HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Reversing |
| Length | 75mm |
| Model | 276712 DILM9-01(24V50HZ) |
| Depth | 75mm |
| Width | 45mm |
| Series | DILM |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, CSA, IEC/EN 60947, UL |
| Contact Voltage | 400V |
| Coil Voltage | 24V ac |
| Normal State Configuration | 1 NC |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor |
| Pole and Throw Configuration | 3 |
Key Features
- Features a 3-pole design suitable for three-phase motors.
- Operates with a coil voltage of 24V AC and contact voltage of 400V.
- Supports a maximum contact current rating of 9 A and power load up to 4 kW.
- Includes 1 normally closed (NC) auxiliary contact for enhanced safety.
- Equipped with screw terminals for secure and easy installation.
- Supports motor reversing functions with reliable operational current of 9 A.
- Operates within a temperature range of -25°C to 60°C for varied industrial conditions.
- Compliant with multiple standards including VDE 0660, CSA, IEC/EN 60947, and UL.
Product Description
Eaton 276712 DILM9-01(24V50HZ) motor control contactor features a 24V AC coil, designed for effective switching and motor control in industrial environments. This device is built to operate 3-pole circuits with a contact current rating of 9 A and power rating of 4 kW at 400V, making it ideal for controlling three-phase AC induction motors.
The contactor supports reversing operations, aided by the normally closed (NC) auxiliary contact, enhancing operational flexibility and safety. Its screw terminal design facilitates straightforward, reliable wiring installation conforming to industrial standards.
Operating temperature range from -25°C to 60°C allows deployment in diverse environments with varying thermal conditions. The product complies with several international standards such as VDE 0660, CSA, IEC/EN 60947, and UL, ensuring performance and safety compliance.
The contactor's robust construction supports mechanical shock resistance and is suitable for automation, manufacturing, HVAC, and motor-driven pump, fan, and conveyor applications. Dimensionally compact at 75mm length, 45mm width, and 75mm depth, it fits efficiently into control panels.
Features a 3-pole design suitable for three-phase motors. Operates with a coil voltage of 24V AC and contact voltage of 400V. Supports a maximum contact current rating of 9 A and power load up to 4 kW. Includes 1 normally closed (NC) auxiliary contact for enhanced safety.
Equipped with screw terminals for secure and easy installation. Supports motor reversing functions with reliable operational current of 9 A. Operates within a temperature range of -25°C to 60°C for varied industrial conditions.
Compliant with multiple standards including VDE 0660, CSA, IEC/EN 60947, and UL. Dimensionally compact with 75mm length, 45mm width, and 75mm depth. Manufactured in Romania ensuring high product quality and reliability.
This Eaton contactor is an excellent choice for industrial automation systems requiring dependable motor control with reversing capabilities. Explore more Contactors and control devices in the Electronics & Electricals Automation & Control Gear category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V AC.
It supports a maximum contact current rating of 9 A.
The power rating is 4 kW at a contact voltage of 400V.
This contactor features a 3-pole design, suitable for three-phase motors.
It operates within a temperature range of -25°C to 60°C.
Yes, it includes 1 normally closed (NC) auxiliary contact.
It is equipped with screw terminals for secure and easy installation.
It complies with multiple standards including VDE 0660, CSA, IEC/EN 60947, and UL.
The dimensions are 75mm in length, 45mm in width, and 75mm in depth.
This model is suitable for motor control applications, including HVAC and motor-driven pumps, fans, and conveyors.
It functions as a motor control device and supports reversing operations.
This contactor is manufactured in Romania.
