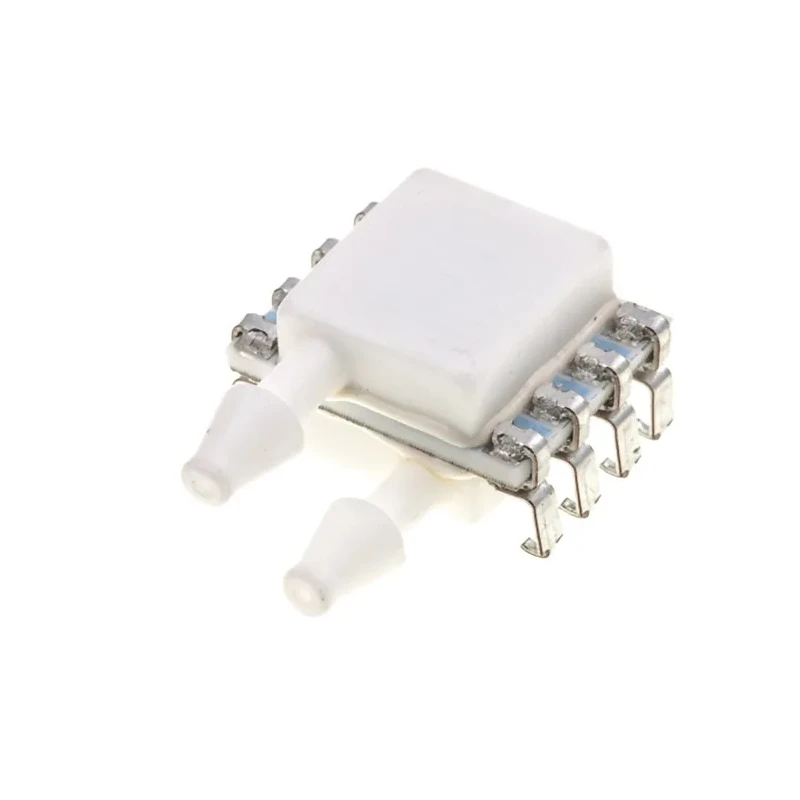

TE Connectivity Pressure Sensor PCB Mount Differential 8 Pin Dual Sideport 3.3V 14-bit Digital Output 4525DO-DS3BK001DPL
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | TE Connectivity |
| Maximum Operating Pressure | 150 psi |
| Height | 9.9mm |
| Length | 12.5mm |
| Model | 4525DO-DS3BK001DPL |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | PCB |
| Series | MS4525DO |
| Maximum Operating Temperature | 105°C |
| Port Type | Dual Side |
| Package Type | Dual Sideport |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | EN 61000-4-2 |
| Pin Count | 8 |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | 1psi |
| Maximum Overload Pressure | 300psi |
Key Features
- Operates at 3.3 volts supply voltage for efficient low-power operation.
- Offers high precision with an accuracy of ±0.25% for reliable pressure measurements.
- Maximum operating pressure rated at 150 psi with a maximum overload of 300 psi.
- Compact dimensions measuring 12.5 mm length and 9.9 mm height suitable for PCB mounting.
- Dual sideport design supports differential pressure sensing applications.
- Wide operating temperature range from -25°C to 105°C for harsh environments.
- Equipped with 8 pins for robust electrical connectivity on printed circuit boards.
- Constructed using proprietary UltraStable™ ceramic technology for durability and stability.
Product Description
TE Connectivity 4525DO-DS3BK001DPL is a high-performance pressure sensor IC designed for printed circuit board mounting. This ceramic-based differential pressure sensor features a dual sideport package with 8 pins, enabling precise digital pressure and temperature readings via its advanced 14-bit pressure and 11-bit temperature output. Its proprietary UltraStable™ technology ensures measurement stability and reliability.
The sensor operates at a supply voltage of 3.3V and accommodates a maximum operating pressure of 150 psi, with a maximum overload pressure of 300 psi. It functions reliably within a temperature range of -25°C to 105°C, suitable for industrial, laboratory, and automotive environments that do not require automotive certification.
This IC is compact with a length of 12.5 mm and a height of 9.9 mm, fitting easily onto standard PCBs. Dual side ports provide enhanced flexibility for differential pressure sensing applications in HVAC systems, water treatment, manufacturing process control, and environmental monitoring.
The device meets EN 61000-4-2 standards for electromagnetic compatibility, ensuring robust performance in electrically noisy environments. Made in China, it is part of the MS4525DO series tailored for reliable pressure measurements across various industrial sectors.
Operates at 3.3V supply voltage for low power consumption. High accuracy digital pressure output with ±0.25% precision. Supports maximum operating pressure of 150 psi. Dual sideport package with 8 pins for PCB mounting. Wide temperature operation from -25°C to 105°C.
Constructed using UltraStable™ ceramic sensor technology. Compliant with EN 61000-4-2 electromagnetic compatibility. Suitable for industrial, laboratory, and process control applications. Compact form factor measuring 12.5 mm by 9.9 mm.
Manufactured in China as part of the MS4525DO series. Explore the full range of TE Connectivity Pressure Sensor ICs and related electronic components available at EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 150 psi, with a maximum overload pressure of 300 psi.
It operates at a minimum supply voltage of 3.3V for efficient low-power operation.
The sensor measures 12.5 mm in length and 9.9 mm in height, making it compact for PCB mounting.
It functions reliably within a wide operating temperature range from -25°C to 105°C.
This model is equipped with 8 pins for robust electrical connectivity on printed circuit boards.
It features a dual sideport design that supports differential pressure sensing applications.
The device meets EN 61000-4-2 standards for electromagnetic compatibility, ensuring performance in electrically noisy environments.
It is constructed using proprietary UltraStable™ ceramic technology for durability and stability.
It is suitable for industrial, laboratory, and process control applications, particularly in HVAC systems and environmental monitoring.
The model number of this pressure sensor is 4525DO-DS3BK001DPL, part of the MS4525DO series.
The minimum operating pressure for this model is 1 psi.
