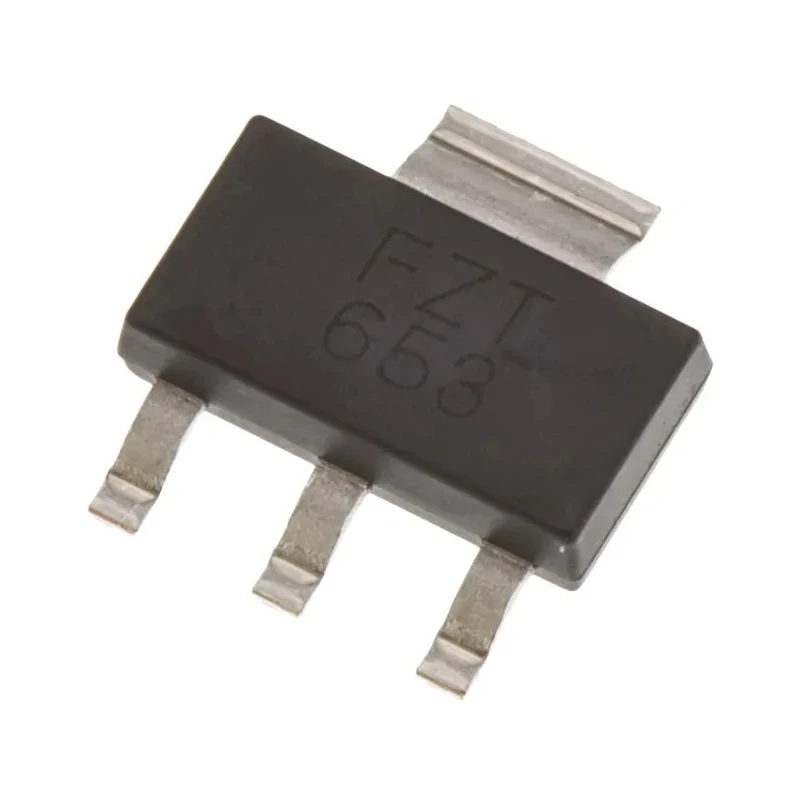

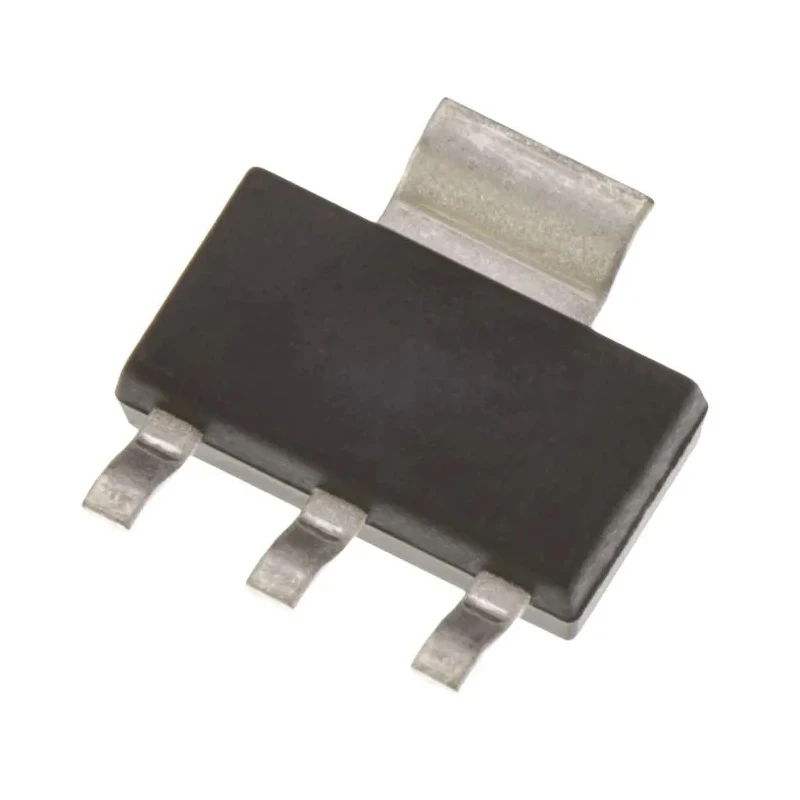

DiodesZetex 2 A NPN Bipolar Transistor 100 V Surface Mount SOT-223 Package FZT653TA

The DiodesZetex FZT653TA is a high-performance NPN bipolar transistor designed for surface mount applications. Housed in a compact SOT-223 package with 4 pins, it supports a maximum collector current of 2A and can handle collector-emitter voltages up to 100 V. The device is suited for use in amplification and switching circuits within industrial, automotive, and electronic manufacturing industries.

Featuring a low saturation voltage of less than 300 mV at 1 A, the FZT653TA transistor offers efficient power handling which reduces heat dissipation, enhancing circuit reliability. Its robust power dissipation rating of 2 W ensures stable operation under typical operating conditions. Operating temperatures range from -55°C to 150°C, allowing for resilience in harsh environments.

The transistor package dimensions are approximately 6.55 mm length, 7.1 mm width, and 1.65 mm height, making it suitable for compact PCB designs. Compliance with environmental standards such as RoHS, and freedom from halogens and antimony, demonstrate DiodesZetex’s commitment to eco-friendly manufacturing.

Further, the FZT653TA is qualified to AEC-Q101 automotive standards, marking it appropriate for automotive electronic applications requiring high reliability and performance under stress conditions.

The transistor features an NPN configuration suitable for general amplification and switching applications. Maximum collector current rating is 2A ensuring robust performance in medium power circuits. Collector-emitter voltage of up to 100 V allows operation in a wide range of voltage applications.

The Surface Mount Technology (SMT) SOT-223 package offers compact size with reliable thermal dissipation. Maximum power dissipation is 2 W for maintaining device stability under load. Low saturation voltage VCE(SAT) less than 300 mV at 1A enhances energy efficiency.

The device complies with RoHS and is lead-free, halogen and antimony free, supporting environmental safety standards. Qualified to automotive standard AEC-Q101, ensuring high reliability in automotive and industrial uses.

This transistor is commonly used in automotive, industrial electronics, power management, and general electronic component manufacturing. It is ideal for engineers seeking reliable and compact bipolar transistors for medium power applications.
