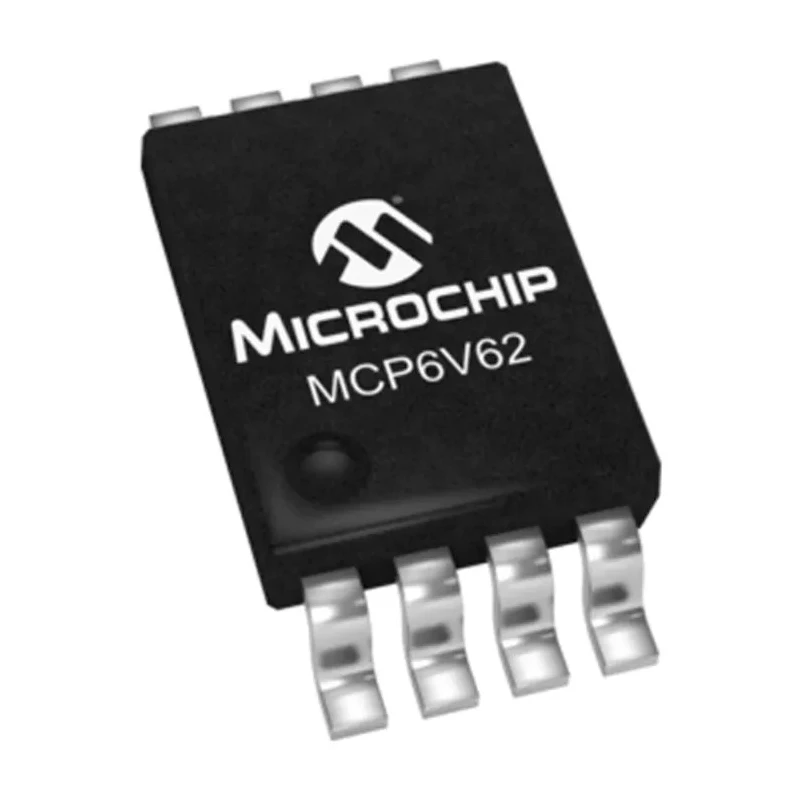

Microchip Operational Amplifier 1 MHz Gain Bandwidth 5.5 V 8-Pin Surface Mount MSOP MCP6V62-E/MS

Microchip MCP6V62-E/MS operational amplifier is a precise and low noise device designed for demanding electronic applications requiring stable gain and fast response. Featuring a 1 MHz gain bandwidth product with a single channel in a compact 8-pin MSOP surface mount package, it operates reliably at supply voltages from 1.8 V up to 5.5 V.

The device benefits from Microchip's zero drift architecture that achieves a maximum input offset voltage of 8 μV and minimizes offset drift, delivering consistent performance across a wide temperature range of -40°C to 125°C. A slew rate of 0.45 V/μs and an output current capability of up to 30 mA enable effective amplification of analog signals.

It maintains low quiescent current (~80 μA per amplifier), contributing to energy-efficient circuit designs. The MCP6V62-E/MS also features high power supply rejection ratio and common-mode rejection ratios, providing stability against interference and variations in supply voltage.

Environmental considerations are met with RoHS compliance, supporting sustainable electronics manufacturing. Its enhanced electromagnetic interference rejection of 101 dB at 1.8 GHz ensures immunity against common EMI sources, making it ideal for industrial, automotive electronics, instrumentation, and communication equipment.

Delivers low input offset voltage of 8 μV for precise signal amplification. Operates with supply voltage range from 1.8 V to maximum 5.5 V. Offers slew rate of 0.45 V/μs ensuring fast response to input signal changes. Typical quiescent current is 80 μA per amplifier for efficient power consumption.

Extended operating temperature range from -40°C to 125°C for reliable industrial use. RoHS compliant, suitable for environmentally conscious designs. Single channel amplifier with maximum output current of 30 mA. Compact dimensions: 3 mm length, 3 mm width, and 0.95 mm height.

Incorporates zero drift architecture minimizing offset voltage drift over temperature. High noise immunity with enhanced EMI rejection of 101 dB at 1.8 GHz.

This operational amplifier is suitable for use in a wide range of industrial and electronic applications such as sensor signal amplification, industrial control systems, data acquisition, medical instrumentation, and communication devices. Its compact size and surface mount design facilitate high-density PCB mounting.
