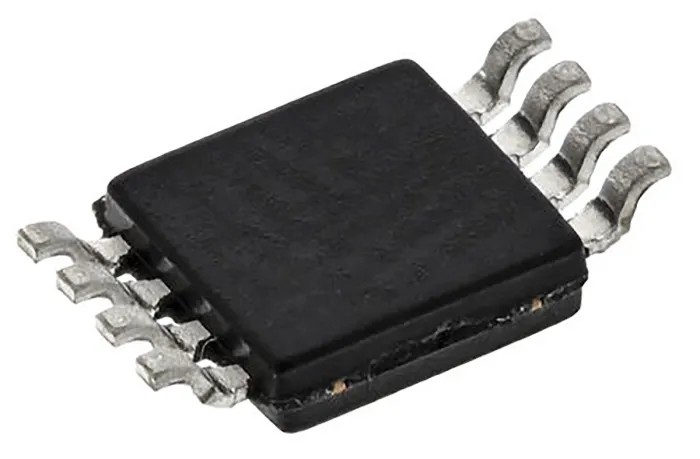

Microchip Digital to Analogue Converter 12 Bit SPI Interface 8-Pin MSOP MCP4821-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP4821-E/MS |
| Width | 3mm |
| Mount Type | Surface |
| Settling Time | 4.5μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Interface Type | SPI |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- 12-bit resistor string architecture ensures precise voltage output.
- Single channel DAC supports analogue voltage output.
- Operates over a voltage range of 2.7V to 5.5V.
- Compact 8-pin MSOP surface-mount package with 3mm x 3mm x 1.1mm dimensions.
- Fast settling time of 4.5 microseconds for rapid signal conversion.
- Wide operating temperature range from -40°C to 125°C for harsh environments.
- SPI interface facilitates easy microcontroller communication.
- Internal voltage reference simplifies design integration.
Product Description
Microchip MCP4821-E/MS is a reliable digital to analogue converter (DAC) designed for precision voltage output in electronic circuits. Featuring a 12-bit resolution and resistor string architecture, this DAC provides accurate and stable analogue voltage conversion from digital inputs.
Its SPI interface enables seamless communication with microcontrollers and embedded processors, facilitating integration into a variety of applications. The device is housed in a compact 8-pin MSOP surface-mount package, measuring 3mm by 3mm with a height of 1.1mm, allowing for space-efficient PCB layouts.
Designed to operate within a wide supply voltage range of 2.7 V to 5.5 V and across a broad temperature spectrum from -40°C to 125°C, the MCP4821-E/MS is suitable for industrial and harsh environment use cases. The fast 4.5 microsecond settling time supports applications requiring quick response times.
Key technical features include a single channel output, internal voltage reference, and analogue voltage output type. This DAC is ideal for use in electronic component manufacturing, instrumentation systems, and other industrial applications where precise voltage conversion is critical.
12-bit resistor string architecture ensures precise voltage output. Single channel DAC supports analogue voltage output. Operates over voltage range of 2.7V to 5.5V. Compact 8-pin MSOP surface mount package, 3mm x 3mm x 1.1mm.
Fast settling time of 4.5 microseconds. Wide operating temperature range from -40°C to 125°C. SPI interface enables easy microcontroller communication. Internal voltage reference simplifies application design. Suitable for industrial, electronic components, and instrumentation applications.
Explore more Microchip semiconductors and Digital to Analogue Converters on EnvMart to enhance your electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP4821-E/MS has a resolution of 12 bits, allowing for precise voltage output from digital inputs.
It operates over a supply voltage range of 2.7V to 5.5V, making it versatile for various applications.
The settling time for the MCP4821-E/MS is 4.5 microseconds, supporting rapid signal conversion.
This model uses an SPI interface, facilitating easy communication with microcontrollers and embedded systems.
The device is housed in an 8-pin MSOP package with dimensions of 3mm x 3mm and a height of 1.1mm.
The MCP4821-E/MS can operate in a wide temperature range from -40°C to 125°C, suitable for harsh environments.
This digital to analogue converter supports a single channel output for analogue voltage.
It provides an analogue voltage output, which is essential for various electronic applications.
It features a resistor string architecture, ensuring accurate and stable voltage conversion.
The MCP4821-E/MS is manufactured in India.
This model has a pin count of 8, suitable for compact PCB layouts.
Yes, it includes an internal voltage reference, simplifying design integration.
