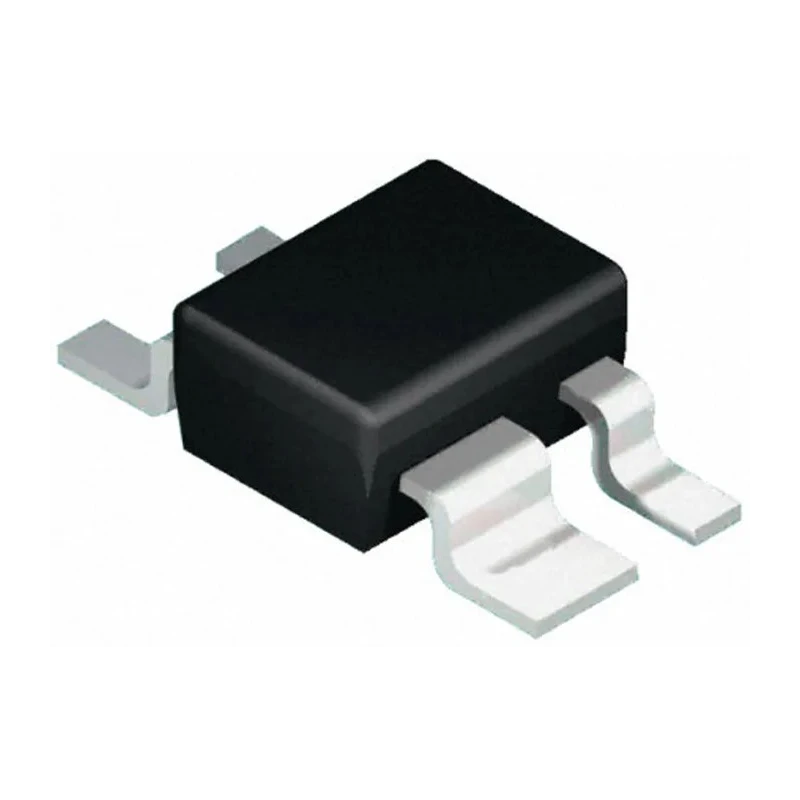

Nexperia Schottky Diode 40 V 120 mA Surface Mount 4-Pin SOT-143 BAS40-07,215

Name: Nexperia Schottky Diode 40 V 120 mA Surface Mount 4-Pin SOT-143 BAS40-07,215
Brand: Nexperia
SKU: 292479
Price: 0.09 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	BAS40-07,215
Width	1.4mm
Mount Type	Surface
Series	BAS40-07
Maximum Operating Temperature	150°C
Package Type	SOT-143
Minimum Operating Temperature	-65°C
Pin Count	4
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	120mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Isolated
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	200mA
Maximum Forward Voltage Vf	500mV

Key Features

Offers a maximum continuous forward current of 120 mA for reliable performance.
Features a peak reverse repetitive voltage of 40 volts ensuring effective blocking capabilities.
Compact 4-pin SOT-143 package facilitates space-saving PCB design.
Supports operating temperature range from -65°C to 150°C, suitable for harsh environments.
Low forward voltage of 500 mV minimizes power losses in high-efficiency circuits.
Equipped with AEC-Q101 automotive qualification for enhanced reliability in automotive applications.
Negligible leakage current with peak reverse current of only 10 μA ensures minimal power consumption.
Mechanical dimensions are 3 mm length, 1.4 mm width, and 1.1 mm height for compact integration.

Product Description

Nexperia BAS40-07,215 Schottky diode is a highly efficient discrete semiconductor device designed for electronic and electrical applications requiring low forward voltage and fast switching.

This diode features a surface mount 4-pin SOT-143 package, making it ideal for compact PCB assemblies in consumer electronics, automotive, and industrial circuits. The device supports a maximum continuous forward current of 120 mA and a peak reverse repetitive voltage rating of 40 volts, balancing performance and durability.

Optimized for low forward voltage drop of 500 mV, the diode reduces power losses and heat generation, enhancing circuit efficiency. It operates reliably within a temperature range of -65°C to 150°C, suitable for demanding environments including automotive systems, supported by the AEC-Q101 standard certification.

The diode’s low peak reverse current of 10 μA and non-repetitive surge current rating of 200 mA improve switching performance with minimal leakage and robust surge tolerance. With mechanical dimensions of 3 mm length, 1.4 mm width, and 1.1 mm height, this device supports miniaturized designs without compromising electrical performance.

Maximum continuous forward current: 120 mA. Peak reverse voltage: 40 V. Surface mount 4-pin SOT-143 package. Operating temperature range: -65°C to 150°C. Forward voltage drop: 500 mV. AEC-Q101 automotive qualified. Low peak reverse current of 10 μA.

Compact mechanical dimensions for dense PCB layouts.

This Schottky diode is widely used in industrial electronics, power management circuits, automotive electronic control units (ECUs), and general purpose signal rectification applications.

Choose Nexperia BAS40-07,215 for reliable, efficient, and durable diode performance in compact SMD form factors. Explore more semiconductor products with EnvMart for advanced electronics solutions.
