| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | 74AHC1G00QSE-7 |
| Mount Type | Surface |
| Output type | Push Pull |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | AHC |
| Logic Function | NAND |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 9.5ns |
| Maximum Low Level Output Current | 8mA |
| Number of Inputs per Gate | 2 |

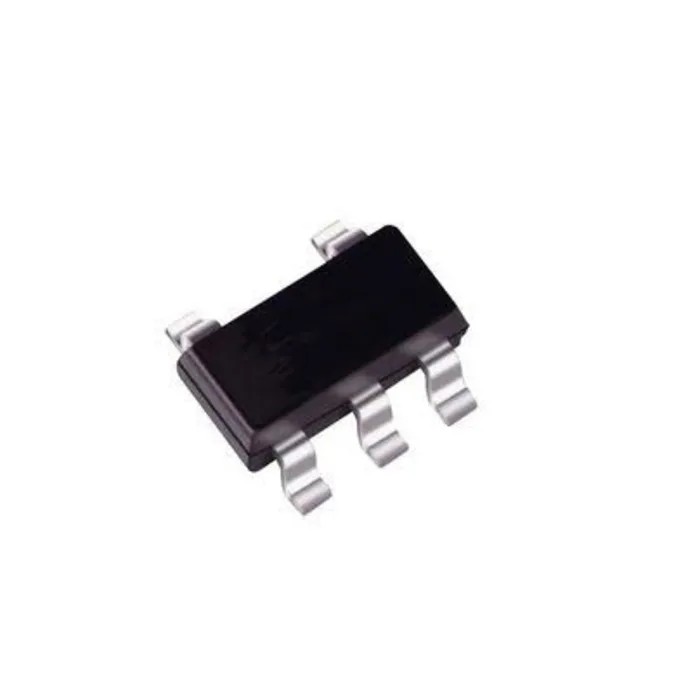

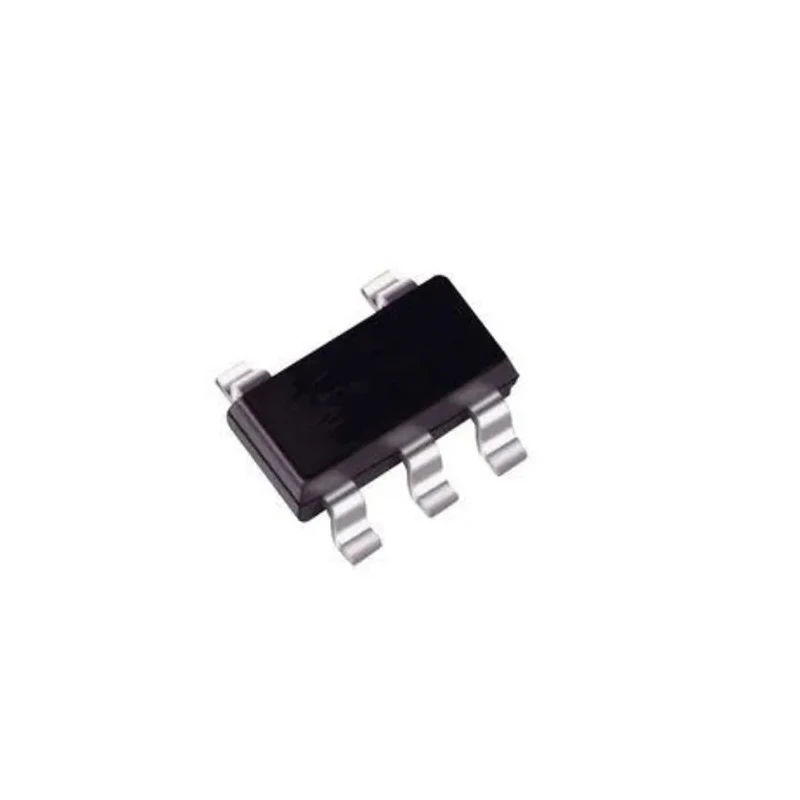

DiodesZetex 74AHC1G00QSE-7 is a 1 2-Input NAND Schmitt Trigger Logic Gate designed for surface mount applications. It features a compact 5-Pin SOT-323 package with dimensions 2.2mm in length and 1mm in height. This device integrates a Schmitt trigger input, providing enhanced noise immunity and input signal conditioning, ideal for stable logic level conversion and robust digital circuit design.
Operating within a supply voltage range of 2V to 5.5V, it ensures flexible integration into various low voltage electronic systems. The single gate with two inputs implements standard NAND logic with precise balanced propagation delays, supporting high-speed switching.
The output stage provides a push-pull output type capable of sourcing or sinking up to 8mA, ensuring effective driving of subsequent digital stages. Designed to perform under ambient conditions from -40°C to 125°C, it is suitable for challenging industrial and automotive environments. The component conforms to the AEC-Q100 automotive standard, demonstrating its quality and reliability for critical applications.
This logic gate IC is ideal for applications in industrial automation, embedded systems, consumer electronics, and automotive electronics where compact footprint and reliable digital logic gating are essential.
Features a Schmitt trigger input for noise immunity and input signal conditioning. Operates with a supply voltage range from 2V to 5.5V suitable for various electronic circuits. Single gate design with two inputs providing NAND logic functionality.
Offers balanced propagation delays and drive capability for consistent performance. Supports a wide operating temperature range from -40°C to +125°C for industrial applications. Packages in a compact 2.2mm length and 1mm height SOT-323 surface mount footprint.
Push-pull output type delivering up to ±8mA output current capability. Automotive grade AEC-Q100 compliant ensuring robustness and reliability. Suitable for use in electronic, industrial automation, and embedded system applications.
Set includes 1 Pc DiodesZetex 74AHC1G00QSE-7 NAND Logic Gate IC. Explore comprehensive electronic component categories and DiodesZetex products on EnvMart for your project needs.
