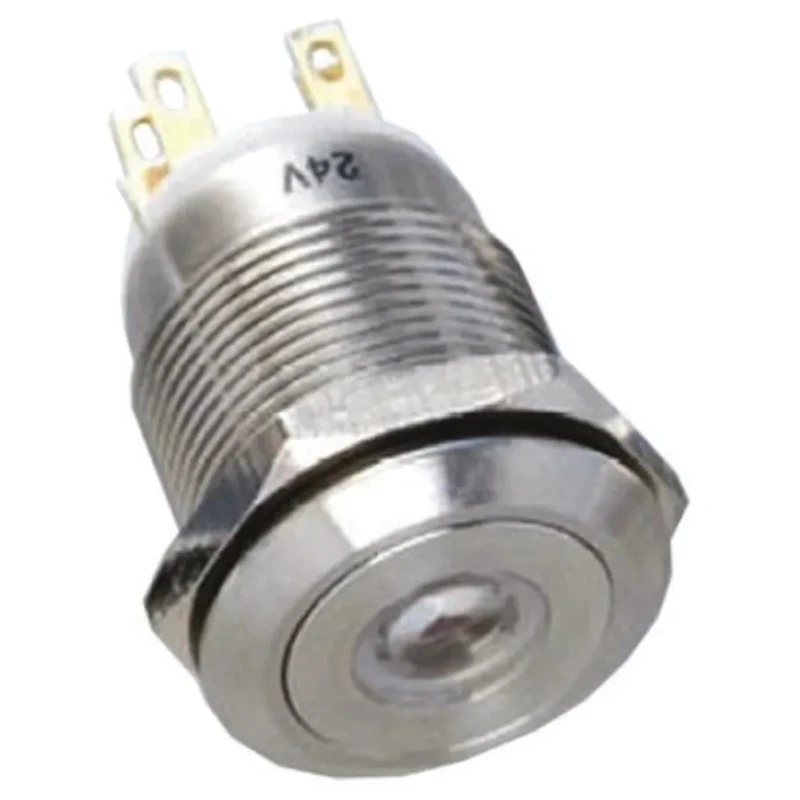

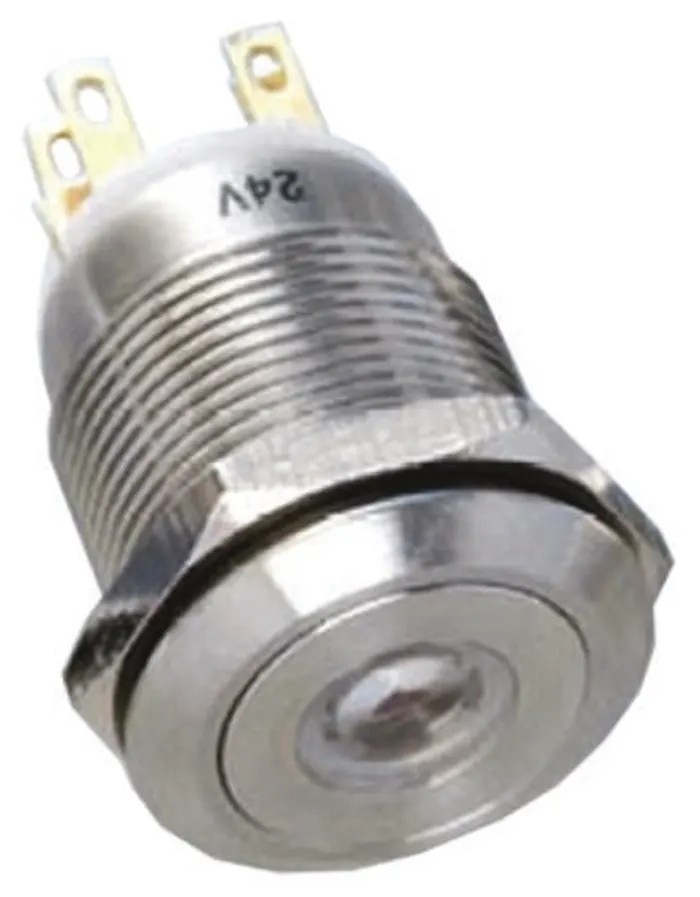

EOZ R Series Illuminated Momentary Push Button Switch DPDT 250 V AC Green LED IP65 Panel Mount R19FFSSPAGDG24
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19FFSSPAGDG24 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch is vandal resistant with IK09 impact protection equivalent to 10 joules.
- It is sealed to IP65 rating ensuring protection from dust and low pressure water jets.
- The actuator color is silver with a button style and solder terminal type.
- Operation temperature range is -20°C to 55°C suitable for industrial environments.
- Ideal for access control systems, machinery, kiosks, and exposed public areas.
- The green LED ring illumination emits light when pressed to indicate operation.
- Switch contact current rating is 5 A with 1 NO/1 NC switch configuration.
- Manufactured in France with RoHS compliance.
Product Description
EOZ R19FFSSPAGDG24 is a high-quality illuminated push button switch designed for momentary operation in demanding industrial and commercial applications.
This panel-mounted switch features a rugged silver actuator styled as a button and requires a 19 mm panel cutout for installation. Its double pole double throw (DPDT) contact configuration supports versatile circuit switching under a rated AC voltage of 250 V.
The green LED illumination is centrally positioned to provide clear indication when the button is pressed, enhancing user feedback in control panels, kiosks, vending machines, and access control systems.
Engineered for durability, the switch offers impact resistance to IK09 standards, protecting against mechanical shocks equivalent to a 5 kg mass dropped from 200 mm height.
Its IP65 ingress protection rating guarantees reliable performance in harsh environments with protection from dust ingress and low-pressure water jets from any direction. The operating temperature range from -20°C to 55°C broadens its suitability for various use cases.
The solder terminal type ensures secure electrical connections and ease of integration into systems requiring momentary switching. The switch is vandal resistant and suitable for exposed public or industrial spaces. Rated for 5 A contact current, supporting typical control circuits.
Meets RoHS standards, ensuring compliance with environmental regulations. Manufactured in France ensuring high build quality and reliability.
This EOZ R Series illuminated Push Button Switch is ideal for use in industrial automation, manufacturing, public kiosks, access control panels, and other commercial electrical applications requiring robust and reliable user interface components.
Explore EnvMart's extensive catalog for compatible EOZ switches and industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration, which allows for versatile circuit switching.
The maximum operating temperature for this model is 55°C, making it suitable for various industrial environments.
This switch has an IP65 ingress protection rating, ensuring it is protected from dust and low-pressure water jets.
The switch requires a 19 mm panel cutout for installation.
It uses solder terminals, which provide secure electrical connections and facilitate integration into various systems.
The switch has a contact current rating of 5 A, suitable for typical control circuits.
The LED illumination on this switch is green, providing clear indication when the button is pressed.
The minimum operating temperature for this model is -20°C, allowing it to function in colder environments.
Yes, its IP65 rating and vandal-resistant design make it suitable for outdoor use in exposed public areas.
This switch complies with RoHS standards, ensuring it meets environmental regulations.
It is designed for applications such as access control systems, machinery, kiosks, and other commercial electrical applications.
This switch is manufactured in France, ensuring a high level of build quality and reliability.
