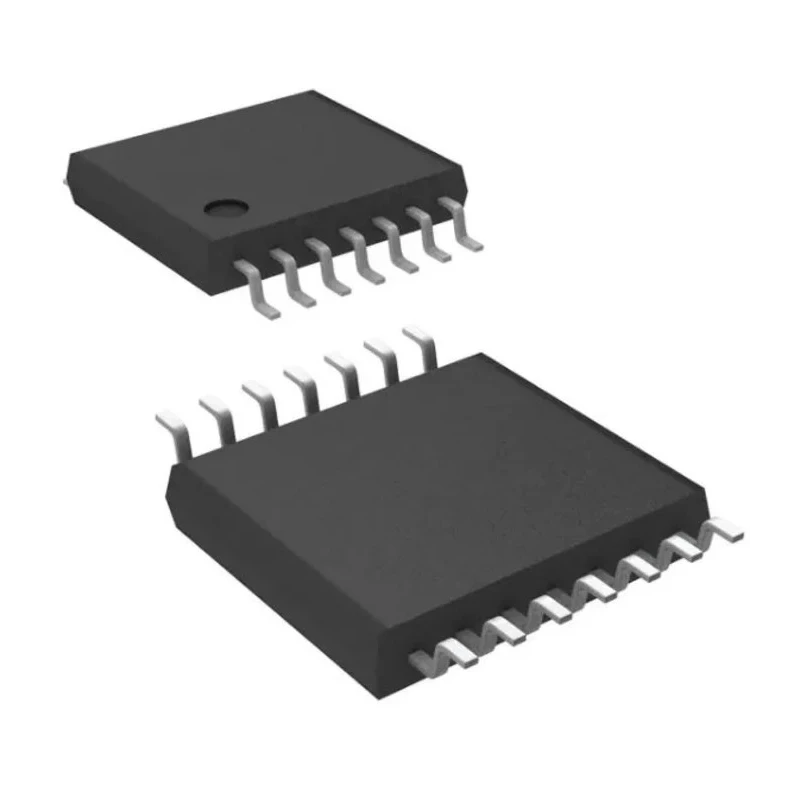

STMicroelectronics Operational Amplifier 4 MHz 14-Pin Surface Mount TSSOP TL084IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | TL084IPT |
| Width | 4.48mm |
| Mount Type | Surface |
| Series | TL084I |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 16V/μs |
| Input Offset Current | 100 pA |
Key Features
- The device contains 4 independent channels for multi-signal amplification.
- It supports a supply voltage range from 3 V to 36 V for flexible operation.
- High input impedance JFET input stage reduces signal distortion.
- Slew rate of 16 V/μs ensures fast response in transient signals.
- Low input bias current and offset current improve measurement accuracy.
- Built with internal frequency compensation to ensure stable operation.
- Robust output short-circuit protection enhances device reliability.
- Temperature operating range from -40°C to 125°C suits industrial applications.
Product Description
STMicroelectronics TL084IPT is a high-performance, quad operational amplifier designed for industrial and automotive applications requiring precise analog signal amplification. Featuring a 4 MHz gain bandwidth, this 14-pin TSSOP packaged device suits surface mounting on compact circuit boards.
The quad channel amplifier incorporates matched high-voltage JFET and bipolar transistors, delivering low input bias and offset currents for high accuracy. The internal frequency compensation and latch-up free design enable reliable operation over a wide temperature range from -40°C to 125°C.
Its high slew rate of 16 V/μs and wide common-mode voltage up to VCC+ provide rapid response capability and enhanced input signal flexibility. The device includes short-circuit protection on the output stage for enhanced durability in industrial and automotive environments.
Typical applications of this operational amplifier include analog signal processing in instrumentation, control systems, sensor conditioning, and automotive electronics. Its RoHS compliance and adherence to automotive standards AEC-Q100 and AEC-Q3 certify its suitability for stringent quality requirements.
The compact 5.1 mm by 4.48 mm by 1.2 mm TSSOP package facilitates high-density PCB layouts. The TL084IPT operational amplifier supports supply voltages ranging from 3 V up to 36 V, making it versatile across low- and high-voltage designs.
Contains 4 independent amplifier channels for multi-signal tasks. Surface mount TSSOP package for efficient PCB integration. Wide operating voltage supports diverse power system designs. Robust automotive qualification per AEC-Q100 and AEC-Q3.
Designed for industrial, automotive, laboratory, and embedded systems.
EnvMart provides this STMicroelectronics TL084IPT Operational Amplifier with assured quality and detailed technical support for electronics professionals and manufacturing environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL084IPT operational amplifier has a gain bandwidth product of 4 MHz.
It supports a supply voltage range from 3 V to 36 V, allowing for flexible operation in various applications.
This operational amplifier contains 4 independent channels for multi-signal amplification.
The operating temperature range for the TL084IPT is from -40°C to 125°C, making it suitable for industrial applications.
The slew rate of this model is 16 V/μs, ensuring fast response in transient signals.
It comes in a TSSOP package type, which is suitable for surface mounting on compact circuit boards.
The dimensions of this model are 5.1 mm in length, 4.48 mm in width, and 1.2 mm in height.
This operational amplifier is compliant with automotive standards AEC-Q100 and AEC-Q3, ensuring it meets stringent quality requirements.
The input bias current for the TL084IPT is 200 pA, which helps improve measurement accuracy.
Yes, it includes robust output short-circuit protection to enhance device reliability in various applications.
The input offset voltage for this operational amplifier is 10 mV, contributing to its overall accuracy.
Yes, the TL084IPT is RoHS compliant, indicating it meets environmental standards for hazardous substances.
