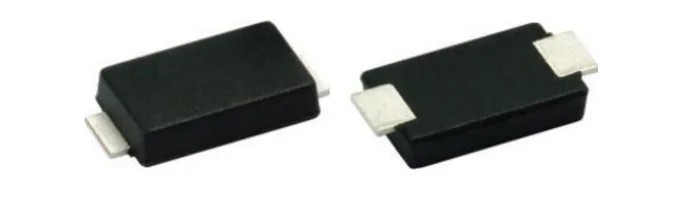

Vishay 100 V 5 A Surface Mount Rectifier & Schottky Diode DO-221AC VSSAF510HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 5.35mm |
| Model | VSSAF510HM3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-221AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JESD 201 Class 2 whisker test, RoHS, UL 94 V-0, AEC-Q101 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.75V |
Key Features
- Features a low forward voltage drop of 0.75 V for efficient operation.
- Supports peak non-repetitive forward surge current of 100 A.
- Operates reliably from -40°C to 150°C, suitable for harsh environments.
- Innovative Trench MOS Schottky technology minimizes power losses.
- Ideal for DC/DC converters, inverters, freewheeling, and polarity protection.
- Meets automotive standard AEC-Q101 for high reliability applications.
- Compact dimensions of 5.35 mm length, 2.7 mm width, and 1 mm height enable automated surface mounting.
- Complies with JESD 201 Class 2 whisker test, RoHS directive, and UL 94 V-0 flammability standard.
Product Description
Vishay VSSAF510HM3/H is a surface mount Rectifier & Schottky Diode in a DO-221AC package providing 5 A continuous forward current and a peak reverse repetitive voltage of 100 V. It features advanced Trench MOS Schottky technology, promising low forward voltage (0.75 V) and high efficiency with minimal power loss.
The diode supports a wide operating temperature range from -40°C to 150°C, making it suitable for industrial, automotive, and commercial electronic applications. Its peak non-repetitive forward surge current rating of 100 A ensures durability under transient conditions.
Mechanically designed for surface mount assembly with compact dimensions (5.35 mm length, 2.7 mm width, 1 mm height), it meets standards including JESD 201 Class 2 whisker test, RoHS compliance, and UL 94 V-0. The device is AEC-Q101 qualified, confirming its suitability for automotive quality requirements.
Common use cases for the VSSAF510HM3/H include use in low-voltage, high-frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits in industrial, commercial, and automotive electronics.
Low forward voltage drop for optimized efficiency. Supports high surge current and wide temperature operation. AEC-Q101 automotive grade qualification for enhanced reliability. Compact surface mount design compatible with automated PCB assembly.
Compliance with international standards and environmental directives.
This product is ideal for engineers and designers looking for a robust Schottky diode offering low losses and high reliability across diverse applications. Browse more Vishay components and related Schottky diode products on EnvMart for your electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
