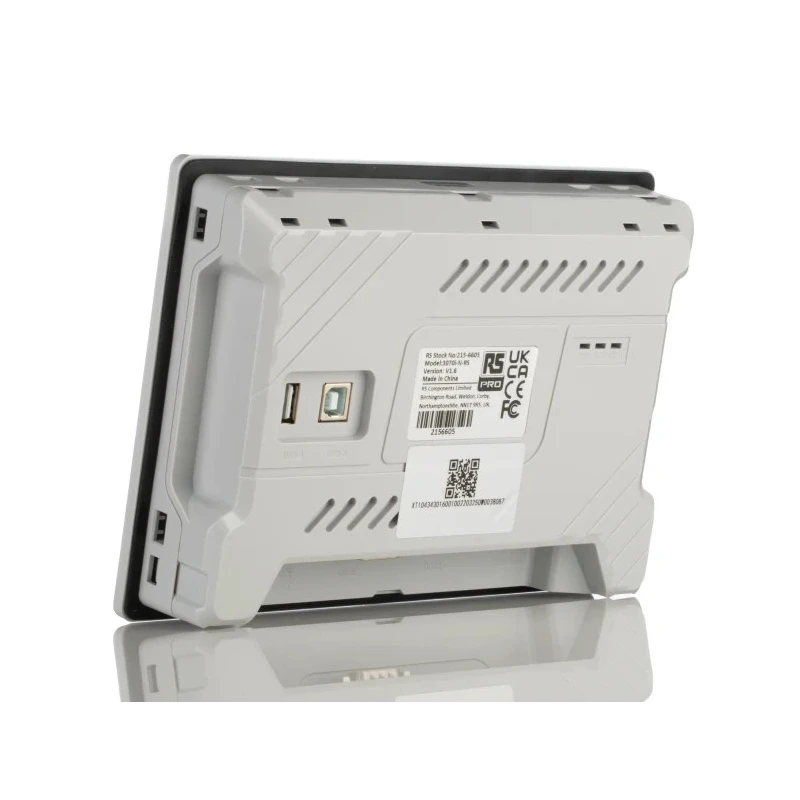

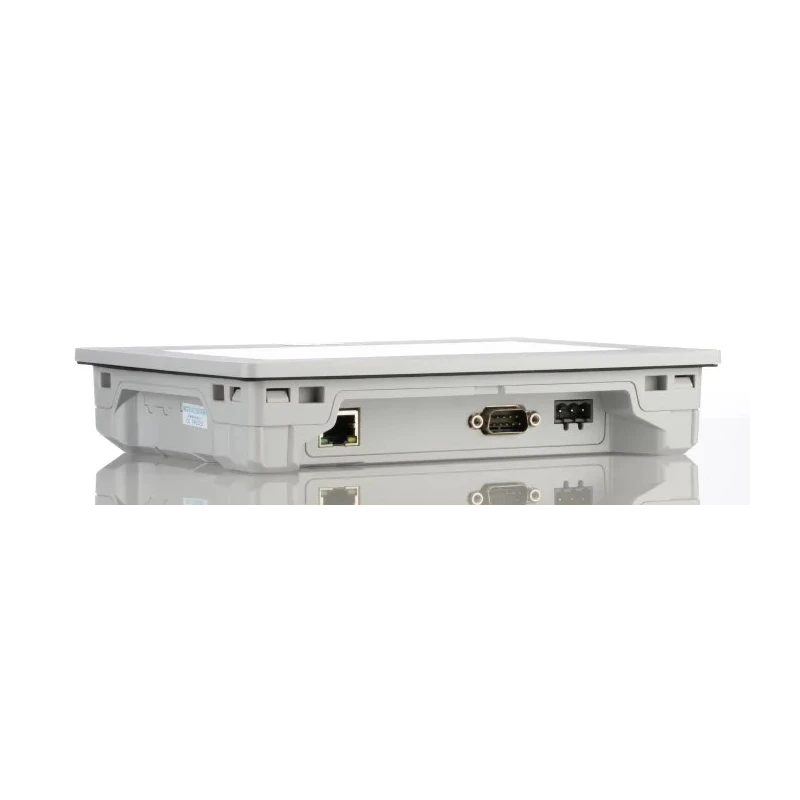

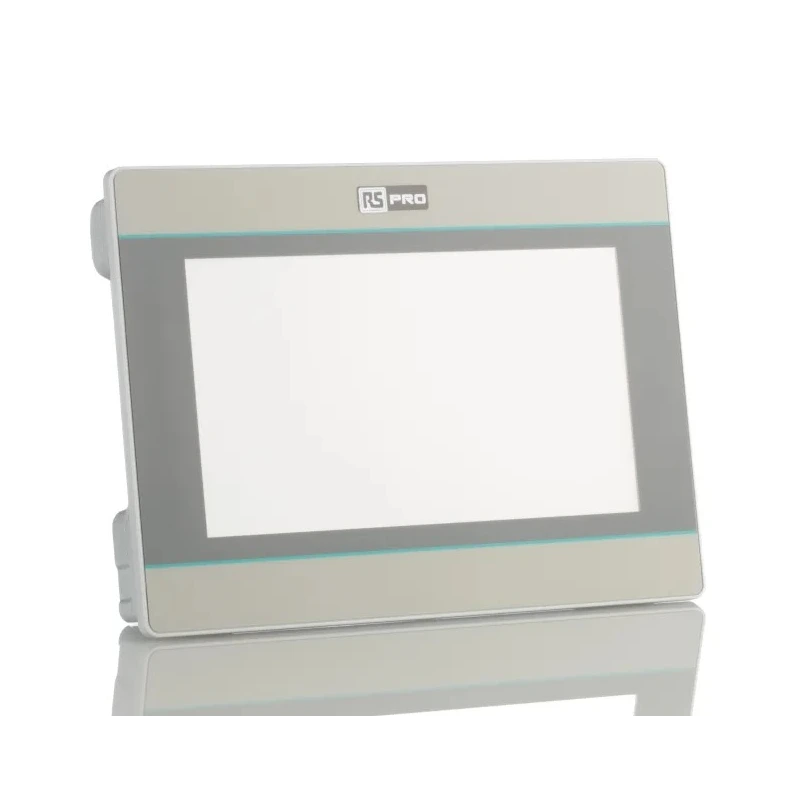

RS PRO HMI Panel 7 in TFT LCD Display 177.8 mm 800 x 480 pixel 215-6605

Free Delivery in India | Lowest Global Shipping Charges

RS PRO HMI Panel 7 in TFT LCD Display 177.8 mm 800 x 480 pixel 215-6605

Name: RS PRO HMI Panel 7 in TFT LCD Display 177.8 mm 800 x 480 pixel 215-6605
Brand: RS PRO
SKU: 287881
Price: 403.5 USD
Availability: InStock



Category HMI Panel Brand RS PRO Condition New

Specifications

Country of Origin	China
Display Type	TFT LCD
Display	7in colour display
Brand	RS PRO
Operating Temperature	-10 °C to 60 °C
Interface	USB/ Ethernet
Length	201.2mm
Memory	128M FLASH, 128M DDRAM
Model	215-6605
Depth	39mm
IP Rating	IP65
Width	201mm
Series	RS PRO
Number Of Ports	3
Display Resolution	800 x 480 pixel
Maximum Operating Temperature	60°C
Port Type	RS422/485, Ethernet, RS232, COM, USB 2.0
Minimum Operating Temperature	-10°C
Standards/Approvals	CE, RoHS
RS stock no	215-6604
Onboard Memory	128MB
Diagonal Display Size	177.8mm

Key Features

The panel features a 7 inch colour TFT LCD display for clear, vibrant visuals.
It includes USB and Ethernet interfaces for versatile communication.
Robust IP65 rating ensures protection against dust and water ingress.
Operates reliably in temperatures from -10 °C to 60 °C.
Equipped with 128MB onboard memory for efficient performance.
Powered by Cortex A7 processor delivering fast boot time and smooth operation.
Compact dimensions of 201.2 mm length, 201 mm width, and 39 mm depth enable easy panel mounting.
Complies with CE and RoHS standards ensuring safety and environmental compliance.

Product Description

RS PRO 215-6605 HMI Panel is a high-quality 7 inch touch-screen human-machine interface featuring a bright TFT LCD display with 800 x 480 pixel resolution. Designed for industrial and commercial automation, this panel provides clear visual monitoring and control of machinery and processes.

Equipped with a powerful Cortex A7 processor, it ensures rapid boot times and fluent touch operation. The unit includes USB and Ethernet interfaces plus multiple port options such as RS422/485 and RS232 for versatile network connectivity.

Its IP65 rating confers resistance to dust and water, supporting reliable operation across a wide temperature range from -10 °C to 60 °C. The device features 128MB memory for efficient data handling and supports enhanced software security.

The compact design measures 201.2 mm x 201 mm x 39 mm, suitable for panel mounting within industrial control cabinets. CE and RoHS certifications ensure compliance with safety and environmental standards.

The panel delivers fast screen updates and smooth switching between screens. Its touchscreen interface supports easy operation in process control applications. Stable communication performance across Ethernet, serial ports, and USB enhances integration into industrial networks.

Built for use in industrial automation, manufacturing monitoring, and commercial control systems. Standard dimensions and mounting options facilitate straightforward installation.

This RS PRO HMI Panel 215-6605 is ideal for manufacturers and system integrators seeking robust, high-performance interface solutions. Explore the full RS PRO range on EnvMart for compatible industrial automation products.
