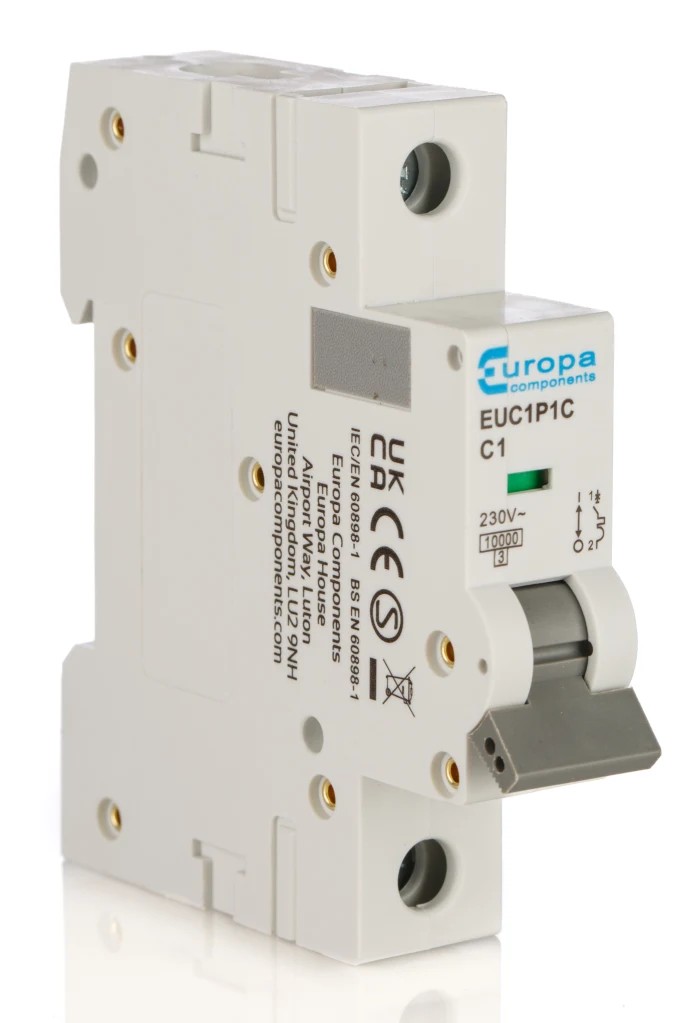

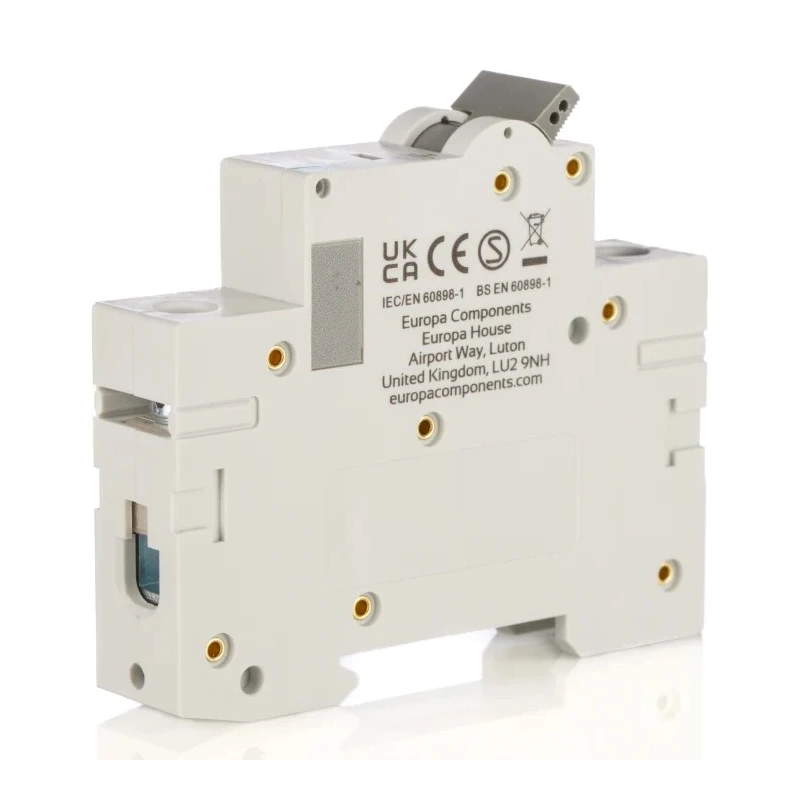

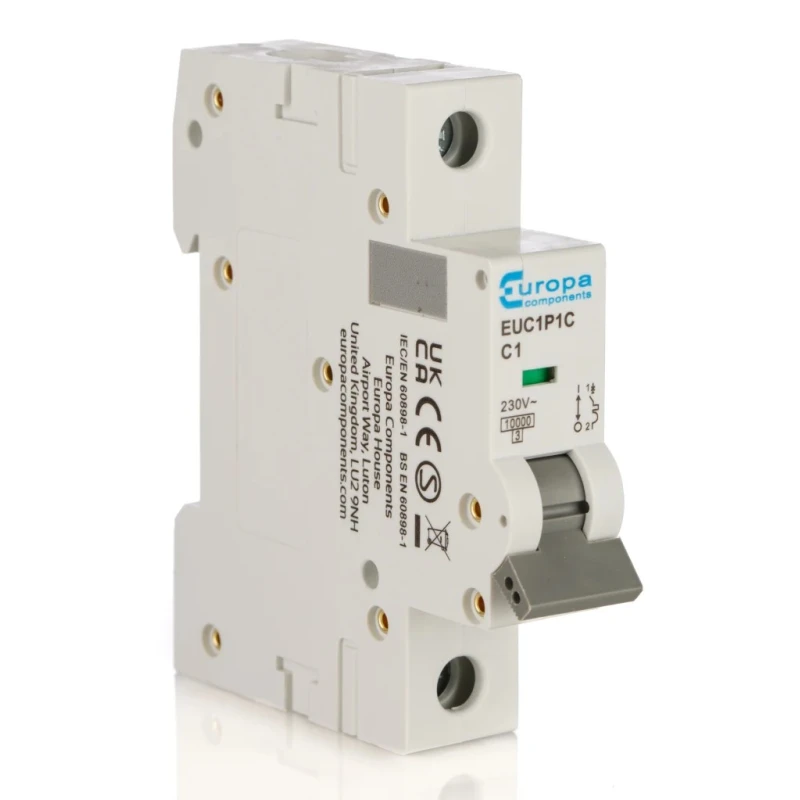

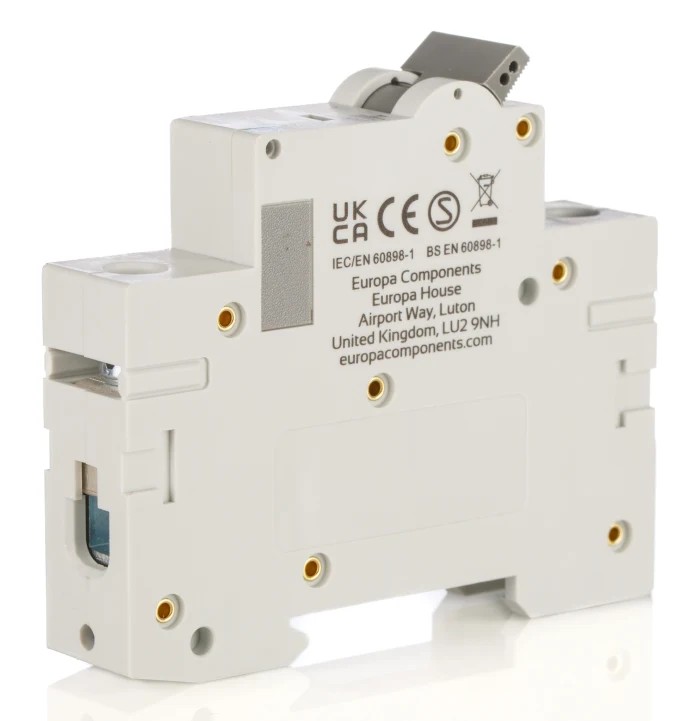

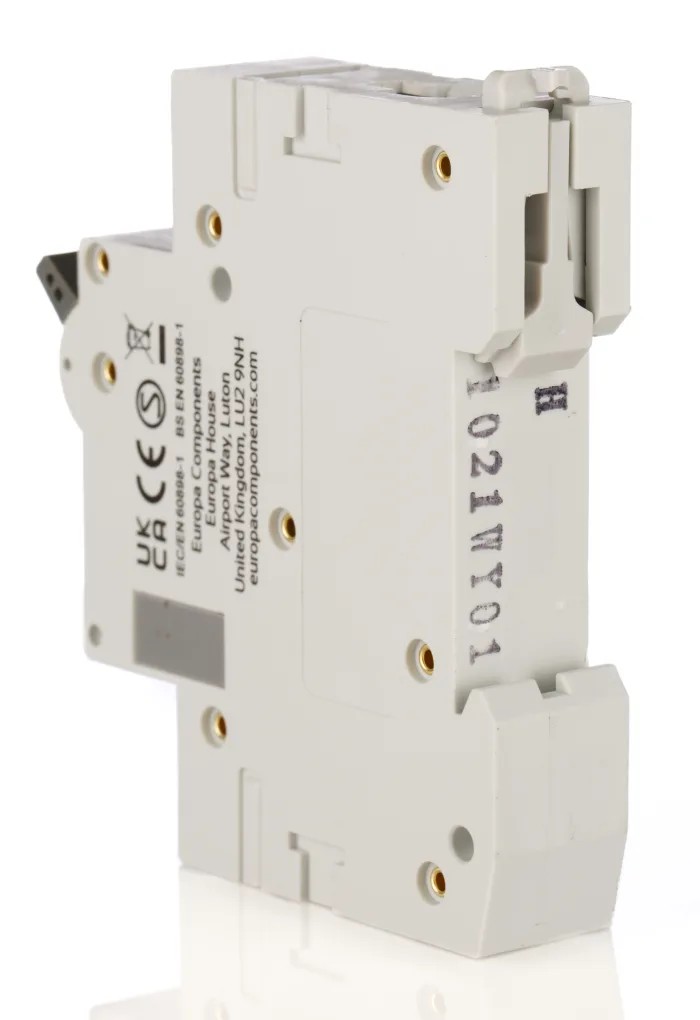

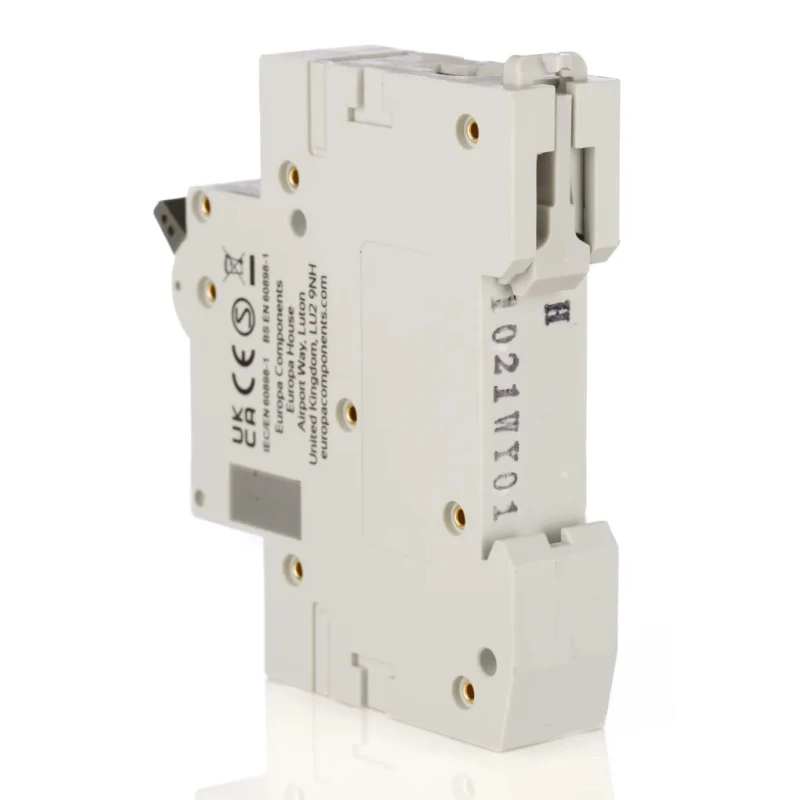

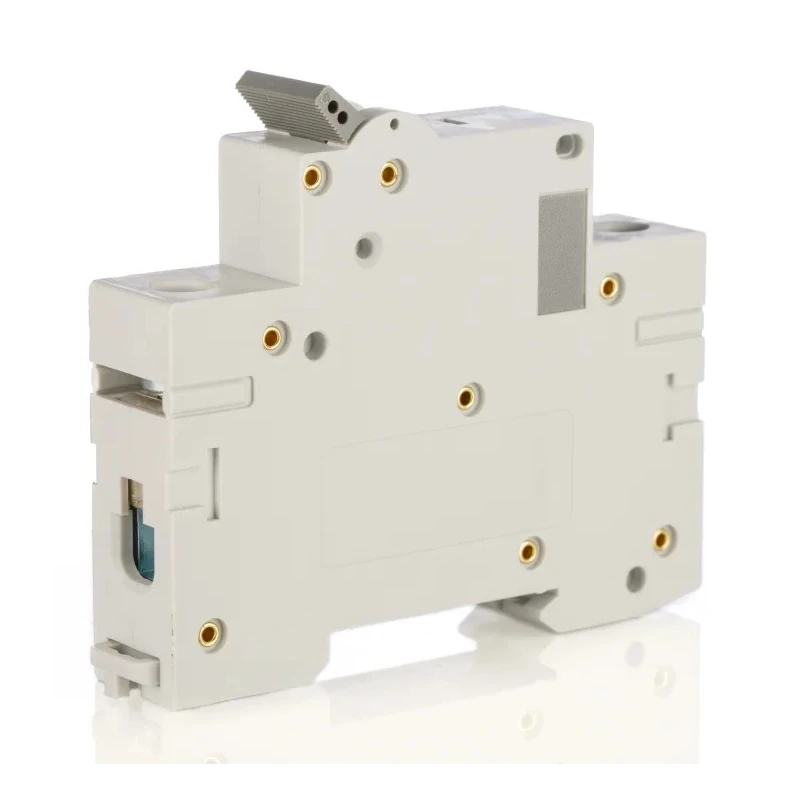

Europa Miniature Circuit Breaker 1-Pole 1A Type C 400V AC 10 kA Breaking Capacity EUC1P

Europa EUC1P Miniature Circuit Breaker (Model EUC1P) is a high-quality 1-pole circuit protection device designed for electrical installations operating at 400V AC with a current rating of 1A. It features Type C tripping characteristics suitable for protection from overload and short circuit conditions in domestic and industrial environments.

Engineered to provide reliable performance, this MCB has a breaking capacity of 10 kA, making it capable of handling high fault currents safely. Its toggle switch actuator allows easy manual reset after trips. The compact dimensions of 78mm in width, 18mm in height, and 87mm in depth enable efficient space utilization in electrical panels.

The device mounts conveniently on a standard 35mm DIN rail, facilitating straightforward installation. With terminal capacity supporting wiring sizes from 1mm² to 25mm² and a tunnel-type terminal for secure connections, it assures excellent versatility in varied wiring configurations.

Compliant with standards IEC 60898 and EN 60898 and certified by CE and SEMKO, it meets stringent safety and performance criteria. The IP20 ingress protection rating ensures protection against access to hazardous parts with a finger but does not provide protection against liquids.

Rated for 400V AC operation ensuring consistent performance. Type C tripping characteristic for overload and short circuit protection. Toggle switch reset actuator for easy manual operation. Standard 35mm DIN rail mounting compatible with most consumer units.

Terminal capacity from 1mm² to 25mm² supports a range of cable sizes. Compact build allows space-saving in control panels. Ingress protection IP20 for safety against solid foreign objects. Meets IEC 60898 and EN 60898 standards for quality assurance.

Provides a high breaking capacity of 10 kA. Manufactured in China with quality control.

This miniature circuit breaker is ideal for use in residential, commercial, and light industrial electrical installations, offering reliable circuit protection to prevent damage to wiring and equipment caused by overcurrent events. It is suitable for electrical distribution boards and consumer units requiring reliable, tested MCB solutions.
