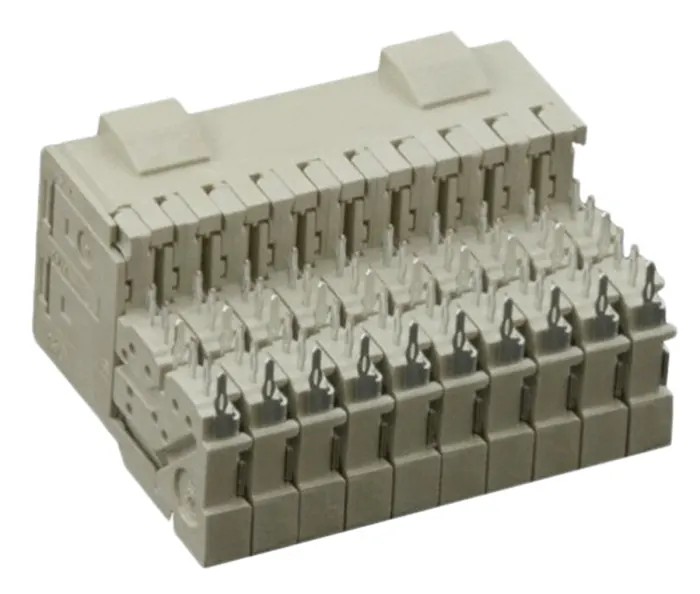

TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch High Speed Hard Metric Backplane Connector 250V AC 700mA Right Angle 6469028-1

Free Delivery in India | Lowest Global Shipping Charges

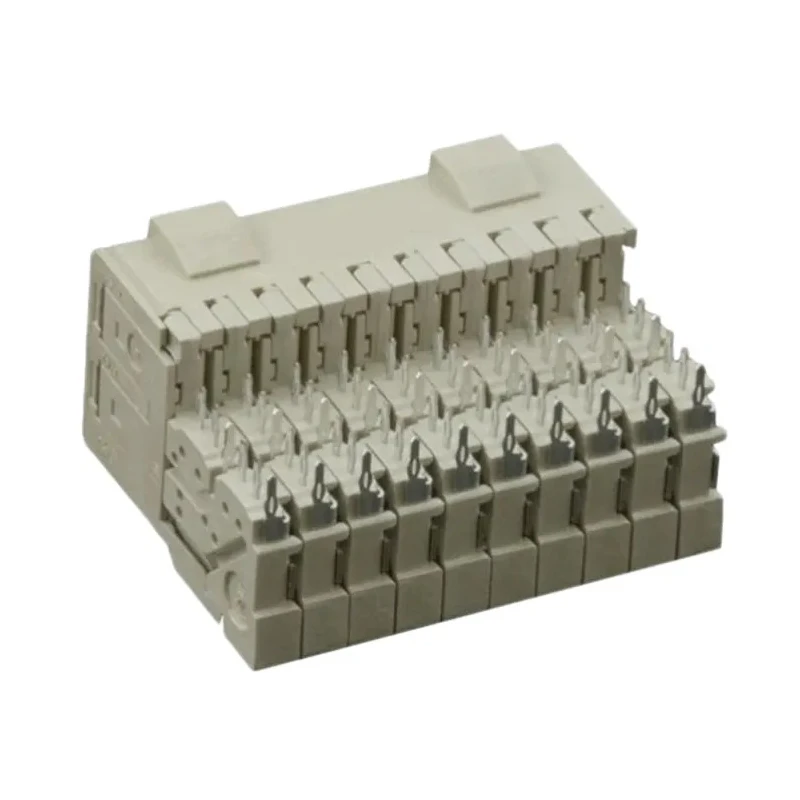

TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch High Speed Hard Metric Backplane Connector 250V AC 700mA Right Angle 6469028-1

Name: TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch High Speed Hard Metric Backplane Connector 250V AC 700mA Right Angle 6469028-1
Brand: TE Connectivity
SKU: 286344
Price: 27.21 USD
Availability: InStock



Category Backplane Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	TE Connectivity
Orientation	Right Angle
Current	700mA
Mount Type	Through Hole
Housing Material	Polyethylene Terephthalate
Contact Material	Copper Nickel Silicon
Series	Z-PACK HM-Zd
Termination Type	Press-in
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	4
Number of columns	10
Pitch	2.5mm
Contact Plating	Gold over Nickel
Number of Contacts	40
Contact Gender	Female
Connector Gender	Female
Backplane Connector Type	High Speed Hard Metric

Key Features

The connector features a right angle female orientation for versatile PCB mounting.
It includes 40 contacts arranged in 10 columns and 4 rows to support high-density connections.
Rated for up to 700mA current with a voltage rating of 250V AC, ensuring reliable electrical performance.
Constructed with polyethylene terephthalate housing and copper nickel silicon contacts for durability.
Gold over nickel plating on contacts enhances corrosion resistance and electrical conductivity.
Designed for through hole mount type with press-in termination for secure fitting.
Operates effectively within a temperature range of -65°C to 105°C, suitable for harsh environments.
Compatible with PICMG 3.x (ATCA) industry standard, ideal for backplane interconnect applications.

Product Description

TE Connectivity 6469028-1 High Speed Hard Metric Backplane Connector features a 2.5 mm pitch and is designed for robust board-to-backplane interconnection. It serves as a female right angle connector with a 10 column by 4 row configuration, offering 40 contact points to support complex, high-density electronic assemblies.

The connector supports a current capacity of 700mA and voltage rating of 250V AC, making it suitable for power and signal transmission in demanding electronic environments. The housing is made of polyethylene terephthalate, providing resilience and mechanical strength, while the contacts are composed of copper nickel silicon, plated with gold over nickel for enhanced conductivity and durability.

The mount type is through hole with press-in termination, ensuring a secure and robust mechanical and electrical connection to printed circuit boards. The connector is rated for operating temperatures from -65°C up to 105°C, supporting reliable performance in extreme thermal conditions.

This product is ideal for industrial, telecommunications, data communication, and computing applications requiring PICMG 3.x (ATCA) compliant backplane connectors. It enables high speed differential signaling with rates from 3 to 6.4 Gb/s, catering to advanced system interconnect requirements.

The connector's high speed interface supports differential signal integrity. Polyester glass-filled housing enhances structural durability. Press fit PCB through hole mounting offers easy assembly and maintenance. Gold over nickel contact plating minimizes corrosion and contact resistance.

Suitable for industrial, telecommunications, and computing backplane applications. Complies with IEC61076-4-101 extension standards. Designed and manufactured with quality standards from TE Connectivity. Set includes: 1 Pc TE Connectivity Z-PACK HM-Zd Backplane Connector with 40 contacts.

Explore more Backplane Connectors and electronic components at EnvMart for your industrial and manufacturing needs.
