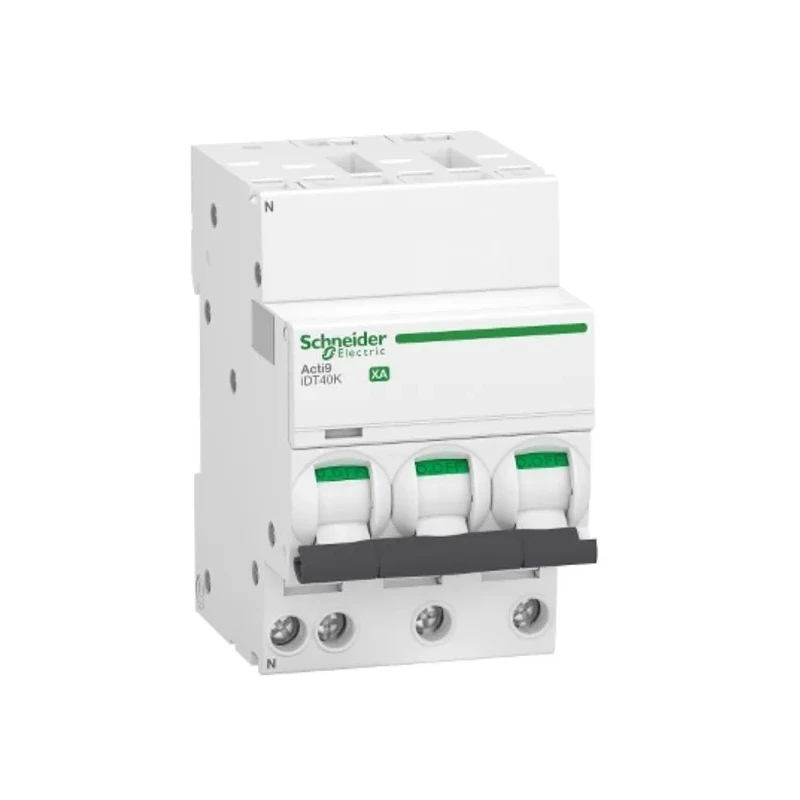

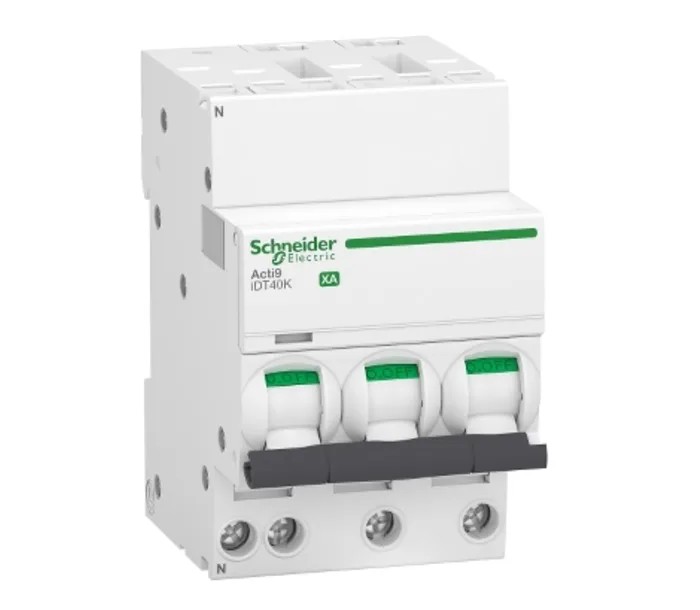

Schneider Electric Acti9 Acti9 iDT40K XA Miniature Circuit Breaker 3+N-Pole 16A Type C 230V AC 4500A Breaking A9PK1716

Schneider Electric A9PK1716 Miniature Circuit Breaker from the Acti9 iDT40K XA series is engineered for efficient electrical circuit protection in residential, commercial, and industrial environments operating at 230V AC.

This 3+N-pole MCB offers a current rating of 16A with Type C tripping characteristics, which ensures accurate response to overloads and short circuits. The breaker features a thermal-magnetic tripping mechanism and a toggle switch reset actuator for user convenience and reliability.

Constructed to meet stringent international standards including EN/IEC 60898-1 and EN/IEC 60947-2, it guarantees high safety and performance levels. The device supports DIN rail mounting, facilitating easy installation in electrical distribution panels.

The A9PK1716 model offers a breaking capacity of 4500A, providing effective protection against sudden current surges. The compact form factor of 85mm height, 54mm width, and 74mm depth allows optimized space utilization. With an IP20 rating, it is suitable for indoor applications with ambient temperatures ranging from -25 to 70 °C.

Designed for durability and enhanced safety, it includes a padlockable feature for secure maintenance operations. As part of Schneider Electric’s premium Acti9 range, it ensures reliable operation, energy efficiency, and long service life.

Features a thermal-magnetic trip mechanism ensuring reliable circuit protection. Designed for DIN Rail mounting with toggle switch reset actuator. Breaking capacity of 4500A to handle sudden high currents safely. Compact dimensions of 85mm height, 54mm width, and 74mm depth suitable for panel installations.

Meets EN/IEC 60898-1 and EN/IEC 60947-2 safety standards. Provides protection against short circuits and overloads in electrical installations. Rated IP20 for indoor applications with ambient temperature operation between -25 to 70 °C.

Padlockable design offers extra security during maintenance or lockout/tagout procedures. Schneider Electric’s Acti9 series premium product ensuring quality and durability.

This Miniature Circuit Breaker is ideal for a wide range of electrical distribution systems across industrial, commercial, and residential applications. It helps ensure safe and efficient operation by protecting circuits from damage caused by overloads and faults. Browse more from the Schneider Electric Acti9 range on EnvMart for complete electrical safety solutions.
