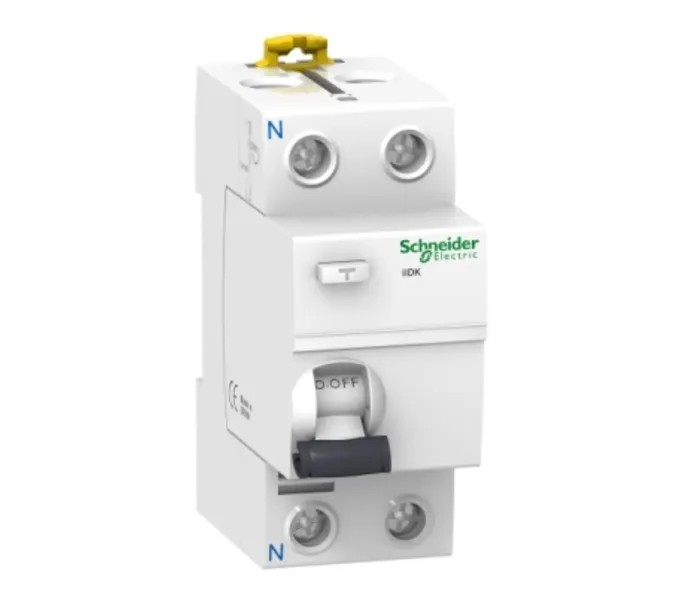

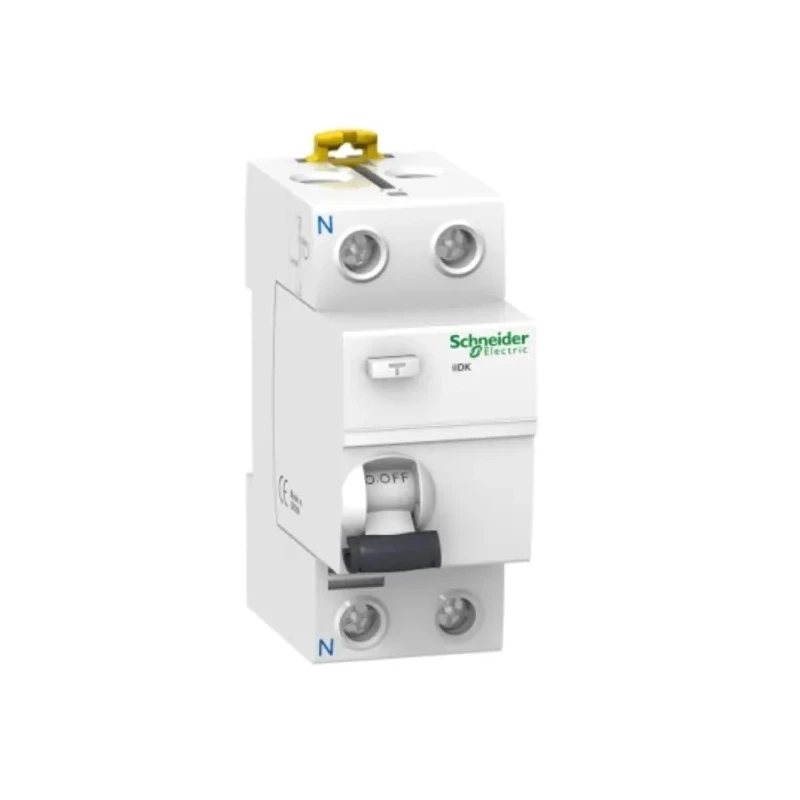

Schneider Electric Acti9 iIDK Series Residual Current Circuit Breaker 25A 2-Pole 30mA Type AC 500A 240V AC

Schneider Electric A9R55225 Acti9 iIDK Series Residual Current Circuit Breaker delivers reliable earth leakage protection with 25A current rating, 2 poles, and 30mA trip sensitivity. This Type AC circuit breaker complies with international standard EN/IEC 61008-1, ensuring high safety and operational reliability for electrical circuits.

The device features a compact design with dimensions of 85mm height, 36mm width, and 69mm depth, making it suitable for integration into various industrial and residential electrical control panels. It mounts easily onto a DIN rail, providing straightforward installation and replacement.

Equipped with a toggle switch actuator, it allows for easy ON/OFF operation and visually indicates tripping events. The instantaneous break time capability ensures immediate interruption of current flow during earth leakage faults, enhancing system protection. The screw terminal type secures electrical connections firmly, maintaining operational stability and safety.

With a robust breaking capacity of 500A and rated at 240V AC, this Residual Current Circuit Breaker is suitable for circuits subject to high fault currents. Its padlockable design provides an additional safety feature during maintenance or lockout procedures, reducing accidental operations.

These circuit breakers are engineered to operate within a wide temperature range (-25 to 70°C) and handle a relative humidity of up to 95% at 55°C, suitable for demanding environments. The impulse withstand voltage of 4 kV adds to its durability against transient electrical stresses.

Schneider Electric’s Acti9 iIDK series RCCBs are premium-class products designed for dependable earth leakage protection in industrial, residential, and commercial electrical installations.

Complies with EN/IEC 61008-1 standard for safety and performance. Mounts easily on DIN rail for convenient installation. Equipped with a toggle switch for ON/OFF operation and trip indication. Designed for industrial and residential electrical applications.

Breaking capacity of 500A suitable for high fault currents. Compact dimensions of 85mm height, 36mm width, and 69mm depth. Instantaneous break time ensures fast disconnection during faults. The screw terminal type ensures secure electrical connections.
