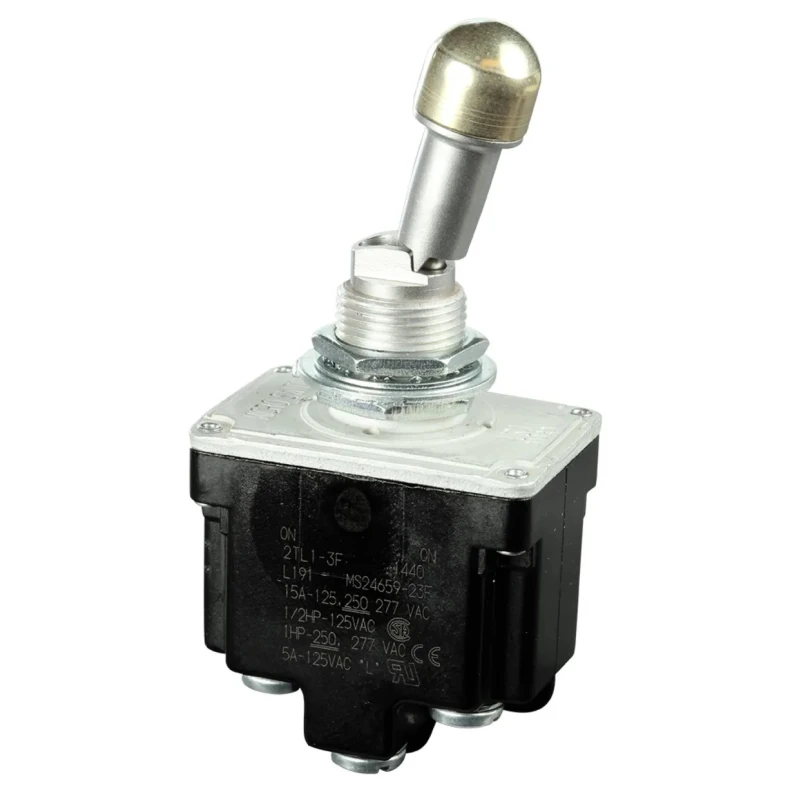

Honeywell Technologies Toggle Switch, Bushing Mount, Latching, DPDT, Screw Terminal, 28 V dc, 125 V ac 2TL1-3F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell |
| Height | 26.7mm |
| Length | 30mm |
| Model | 2TL1-3F |
| Width | 33.5mm |
| Mount Type | Bushing |
| Series | TL |
| Maximum Operating Temperature | 71°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -65°C |
| Terminal type | Screw |
| Standards/Approvals | UL, CSA, CE |
| Switch Operation | Latching |
| Actuator Length | 26.67mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 20A |
| Contact AC Voltage | 125V ac |
Key Features
- DPDT contact configuration allows simultaneous switching of two separate circuits.
- Latching switch operation maintains the selected position until manually changed.
- 20 amp contact current capacity supports heavy-duty electrical loads.
- Bushing mount design enables secure panel installation with front-mounted tightening.
- Screw terminals provide firm and serviceable wiring connections.
- Operates reliably in temperature range from -65°C to 71°C for wide ambient tolerance.
- Compact dimensions with actuator length of 26.67 mm for positive manual engagement.
- Certified to UL, CSA, and CE standards for safety and compliance requirements.
Product Description
Honeywell 2TL1-3F Toggle Switch is a robust bushing-mounted DPDT switch with a latching mechanism designed for industrial and commercial applications requiring reliable circuit isolation and control. Rated for 28 V DC and 125 V AC, it supports a 20 amp contact current for heavy-duty operation.
This toggle switch features a double-pole, double-throw (DPDT) contact arrangement enabling simultaneous control of two independent circuits, ideal for use in control panels and machinery where maintained on-on switching is required. The screw terminal wiring ensures secure mechanical and electrical connections suitable for service and maintenance.
The mechanical latching operation allows the switch to hold its position under demanding operational conditions, providing consistent and manual switching control. With an actuator length of 26.67 mm, the switch offers positive feedback for the operator.
Designed for rugged environments, the switch operates effectively over a broad temperature range from -65°C minimum to 71°C maximum ambient temperature. This ensures reliable performance in industrial, HVAC, manufacturing, and automation systems.
Installation is simplified by the bushing mount interface, which is tightened from the front of the panel providing a fixed, secure mounting method. The compact dimensions (height 26.7 mm, width 33.5 mm, length 30 mm) facilitate integration into switchboards and control panels.
The 2TL1-3F model comes with recognized international approvals including UL, CSA, and CE, meeting stringent quality and safety standards for varied industrial applications. DPDT config enables two-circuit switching for versatile control applications.
Latching operation ensures maintained selection until manual change. 20A capacity supports high current industrial demands. Bushing mount for secure panel installation. Screw terminals allow convenient and reliable wiring.
Wide operating temperature range ensures application flexibility. Compact actuator for clear tactile feedback. UL, CSA, and CE certifications confirm compliance.
This toggle switch is ideal for control panels, machinery requiring circuit isolation, relay logic switching, and is suitable for retrofitting industrial switchboards. Explore Honeywell and related products in Toggle Switch category at EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double-pole, double-throw (DPDT) contact configuration, allowing simultaneous switching of two separate circuits.
This model supports a maximum contact current capacity of 20 amps, suitable for heavy-duty electrical loads.
It is rated for a contact DC voltage of 28 V and a contact AC voltage of 125 V.
The switch operates reliably within a temperature range from -65°C to 71°C.
This toggle switch features a bushing mount design, allowing for secure installation with front-mounted tightening.
It uses screw terminals, providing firm and serviceable wiring connections.
The actuator length is 26.67 mm, which provides positive manual engagement.
This toggle switch is certified to UL, CSA, and CE standards, ensuring compliance with safety requirements.
The dimensions are as follows: height is 26.7 mm, width is 33.5 mm, and length is 30 mm.
It is suitable for control panels, machinery requiring circuit isolation, and relay logic switching.
The switch operates with a latching mechanism, maintaining its position until manually changed.
The country of origin for this toggle switch is India.
