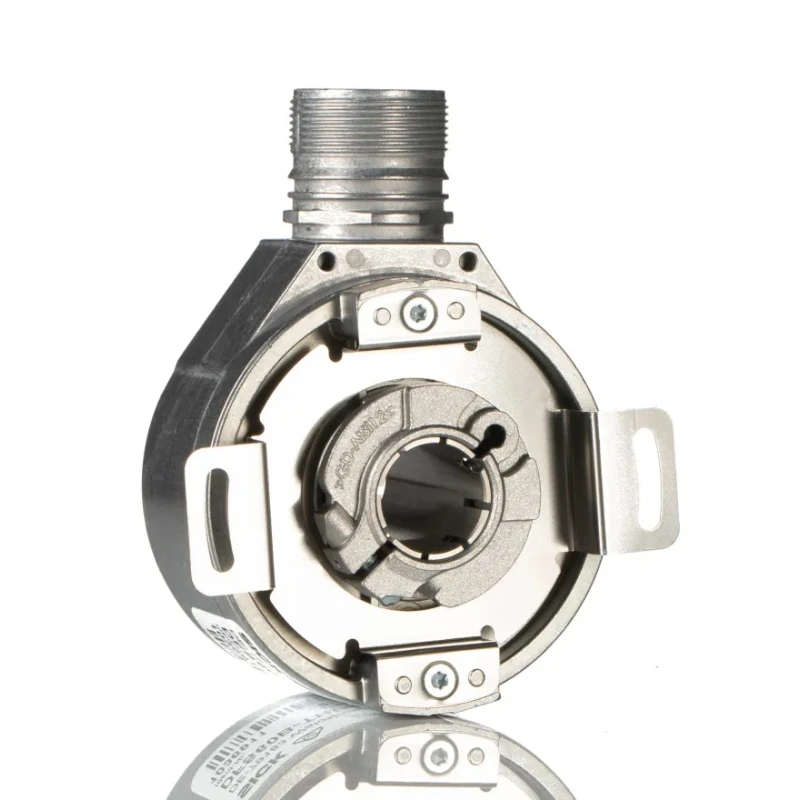

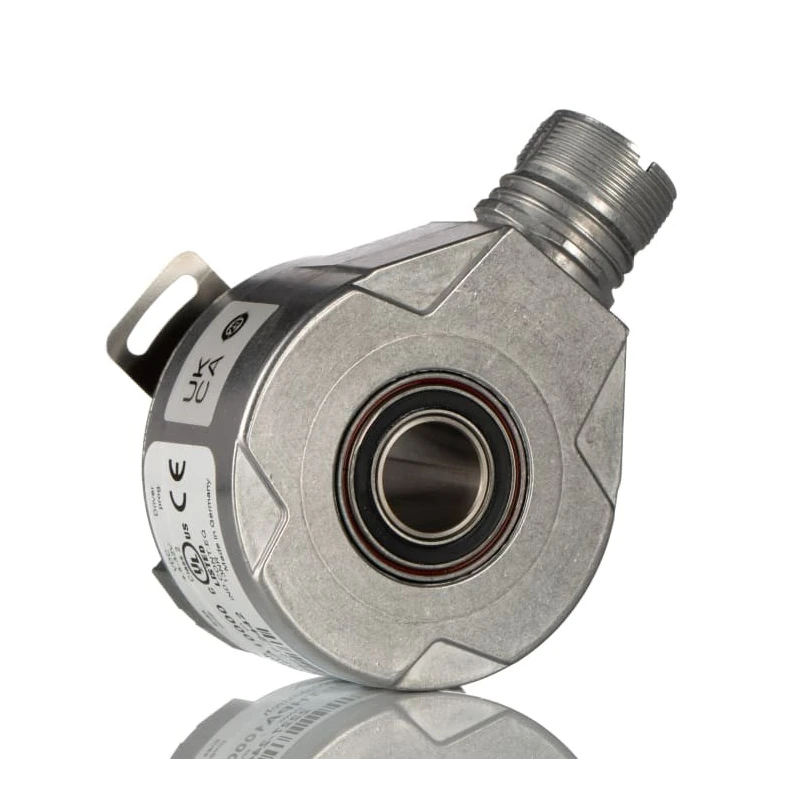

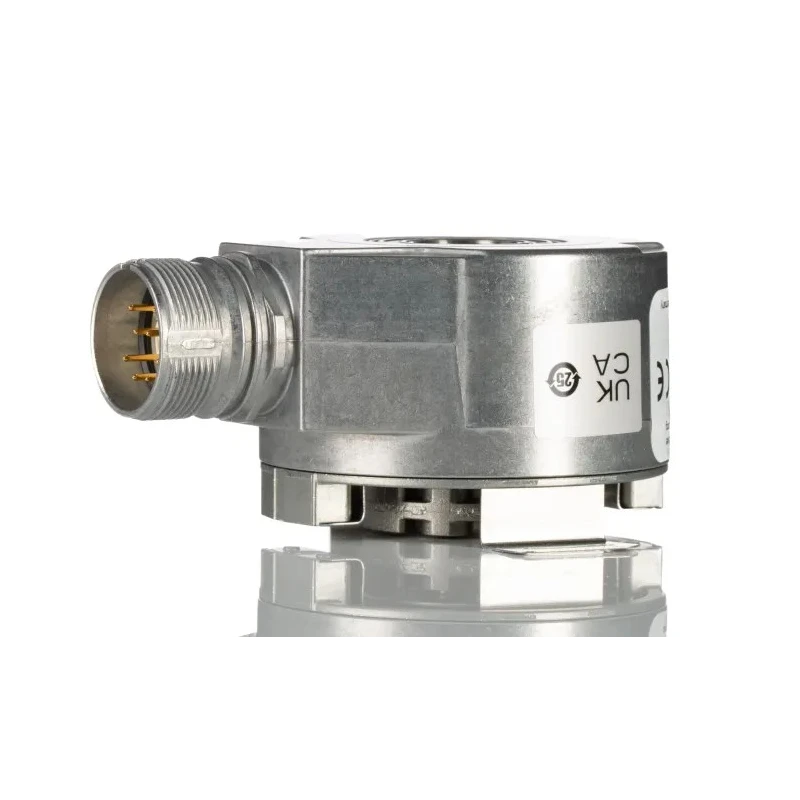

SICK DFS60 Series Incremental Encoder 32V Supply Voltage, 10000 PPR, HTL TTL Signal, Stainless Steel Shaft 15 mm DFS60

SICK DFS60 incremental encoder DFS60 is a high-resolution industrial encoder designed for precise motion control applications. It supports a maximum supply voltage of 32 volts and provides up to 10000 pulses per revolution to enable accurate rotary position and speed measurements. Constructed with a stainless steel shaft measuring 15 mm in diameter, this encoder delivers robust mechanical durability.

This encoder signals include HTL and TTL outputs compatible with a variety of control systems. Featuring a hollow shaft mount with options for face mount flanges or servo flanges, it adapts flexibly to machine interfaces. The device is IP65 rated, ensuring protection against dust ingress and water spray, making it suitable for demanding industrial environments.

The DFS60 supports extensive programmability, allowing customers to customize output voltage, zero pulse position, zero impulse width, pulse count, and counting direction using PGT-08 and PGT-10-Pro programming tools. This capability significantly reduces installation complexity and enhances operational flexibility.

Rated for operating temperatures from -30°C to 100°C and equipped with long-life ball bearings, the encoder assures reliability under extreme conditions. Its high switching frequency of 600 kHz and maximum rotational speed of 6000 rpm support dynamic applications such as loop control, speed measurement on conveyors, and precision positioning in printing or metal processing machinery.

Applications for the DFS60 Incremental Encoder include monitoring damper positions, rotary valves, belt speed tracking, dynamic freight measurement, and exact positioning of oxygen cutting torches during continuous casting processes. Its robust design and advanced features make it ideal for industrial automation, manufacturing, material handling, and water treatment sectors.

Supports up to 10000 pulses per revolution for fine measurement accuracy. Operates with a maximum supply voltage of 32V suitable for varied setups. Features stainless steel shaft with a diameter of 15 mm ensuring durability and strength.

Output signals include HTL and TTL for compatibility with multiple systems. Design includes IP65 rating providing protection against dust and water. Wide operating temperature range from -30°C to 100°C for harsh environments.

Programmable output parameters such as zero pulse position and pulse width via proprietary programming tools. Mechanical interface options include hollow shaft mount with face mount or servo flange types. High switching frequency up to 600 kHz to support fast rotary processes.

Applications include positioning, speed measurement, and loop control in manufacturing and automation. Explore our full range of sensors and encoders in the Electronics & Electricals category at EnvMart for all your automation and control gear needs.
