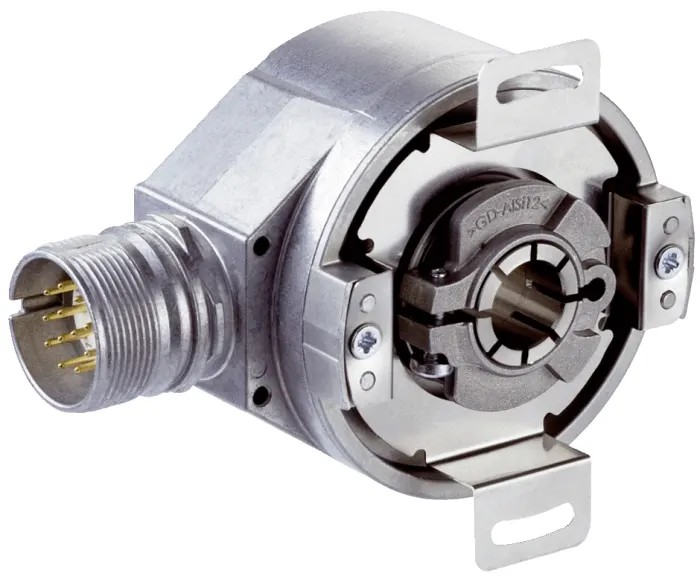

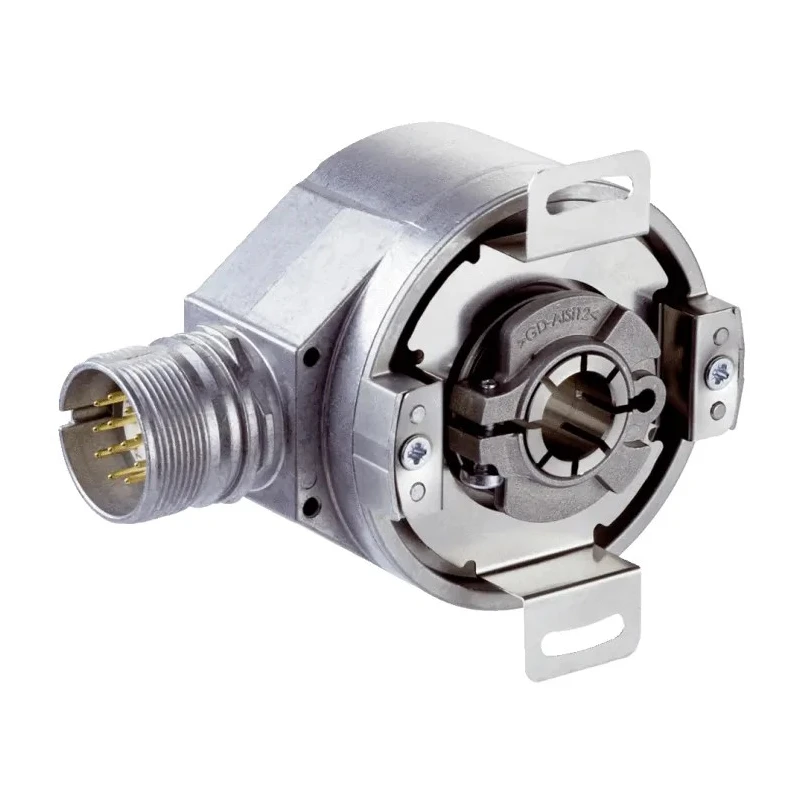

SICK DFS60 Series Incremental Encoder 32V, 10000 ppr, HTL TTL Signal, Stainless Steel Shaft 12 mm DFS60

SICK DFS60 Series Incremental Encoder is a precision motion control sensor with robust stainless steel 12 mm shaft and a very high resolution of 10000 pulses per revolution. Operating at a maximum supply voltage of 32V, it supports both HTL and TTL output signal types, allowing high flexibility for integration into automation and control systems.

This encoder offers a wide operating temperature range from -30°C to 100°C, making it suitable for demanding industrial environments. Its IP65 ingress protection rating ensures reliable operation in dusty or wet conditions. The device features a hollow shaft mount and supports maximum rotational speeds up to 6000 rpm.

Designed with ease of installation in mind, the DFS60 encoder supports both radial and axial cable connections with options for M23 or M12 male connectors. The plug-in terminal type simplifies wiring and maintenance. Additionally, a high switching frequency of 600 kHz allows use in fast dynamic applications.

The encoder is programmable via PGT-08 software and PGT-10-Pro display programming tool, enabling customization of output voltage, zero pulse position, zero impulse width, pulse count, and counting direction. These features facilitate tailored solutions to specific customer needs, reducing downtime and storage costs.

Applications for the DFS60 include precise positioning tasks in oxygen cutting torch control during continuous casting, damper position monitoring in HVAC duct systems, belt speed measurement in manufacturing conveyors, and dynamic freight measurement in logistics operations. Its high enclosure rating and robust mechanical design with face mount flange or servo flange options guarantee safety and longevity.

Offers output signal types HTL and TTL for versatile interfacing. Constructed with stainless steel shaft providing durability and reliability. Supports maximum revolution speed of up to 6000 rpm. Equipped with Plug-In terminal and IP65 rating ensuring protection against dust and water.

Operating temperature range from -30°C to 100°C suitable for harsh environments. Features hollow shaft mount type facilitating easy installation. Switching frequency capability of 600 kHz for high-speed applications. Programmable output signal and zero pulse position through dedicated software for customization.

Designed with radial or axial cable connection options and multiple connector types (M23, M12) for flexible integration. Manufactured in Germany ensuring quality and compliance with EN 61000-6-2 and EN 61000-6-3 standards.

The SICK DFS60 Series Incremental Encoder offers precise, reliable, and programmable performance suitable for a wide range of industrial, manufacturing, and automation applications. Explore more motion control sensors and encoders on EnvMart for optimized industrial automation solutions.
