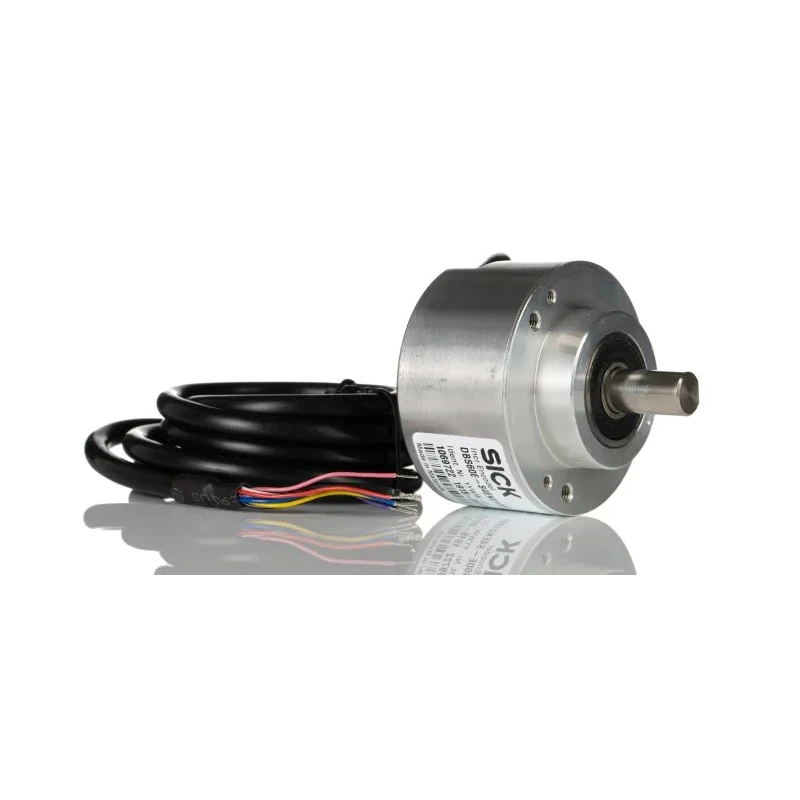

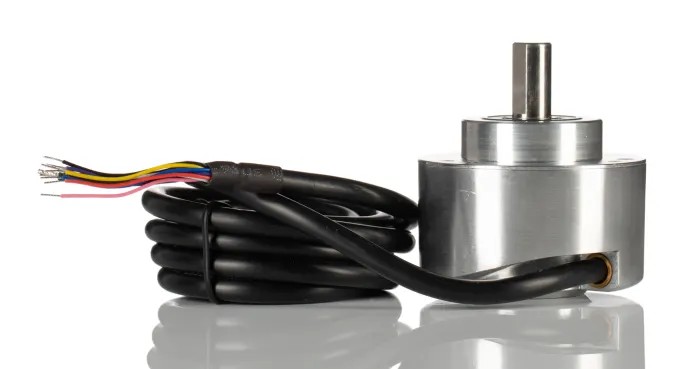

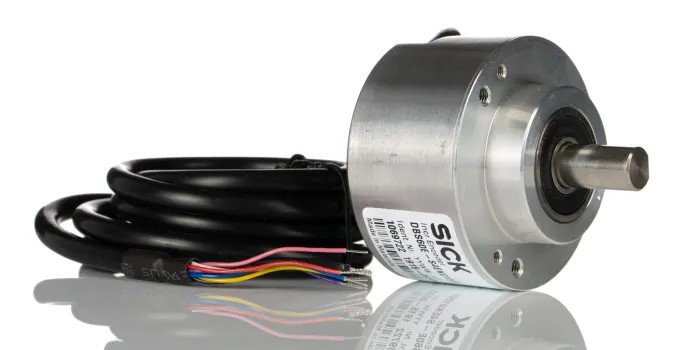

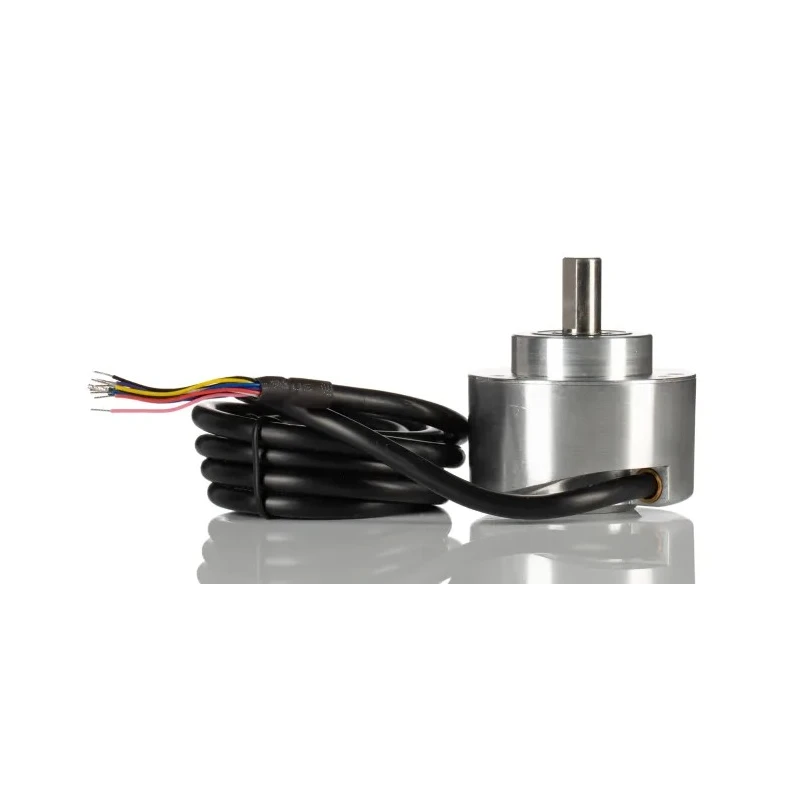

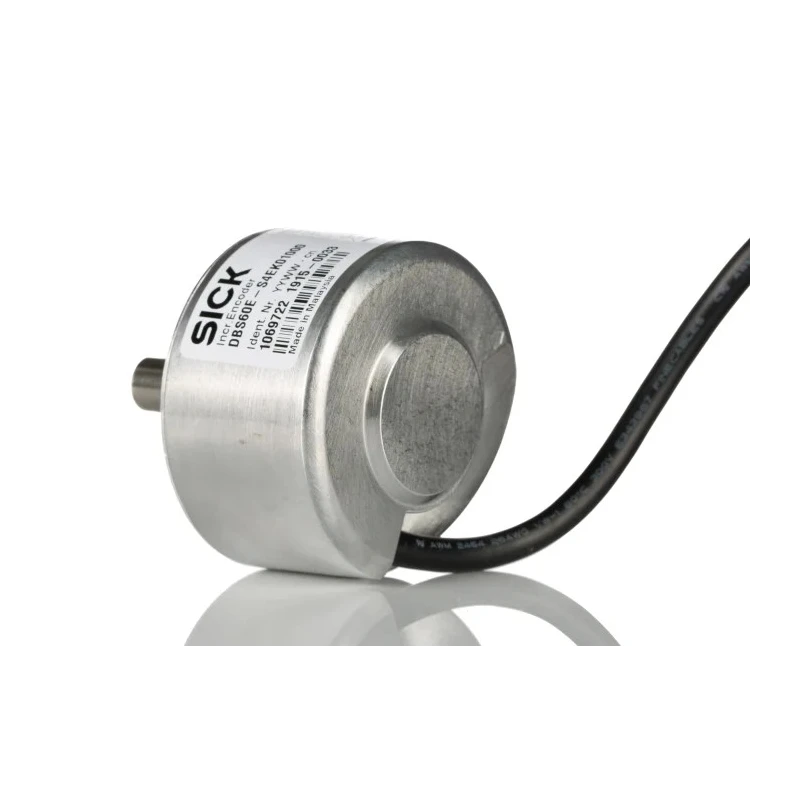

SICK DBS60 Core Series Incremental Encoder 30V, 1000 ppr, TTL and HTL Signal, Solid Shaft 10 mm DBS60
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Model | DBS60 |
| IP Rating | IP65 |
| Mount Type | Full Shaft |
| Series | DBS60 Core |
| Overall Width | 58mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -30°C |
| Shaft Diameter | 10mm |
| Overall height | 58mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Terminal type | Cable |
| Interface Type | Incremental |
| Pulses per Revolution | 1000ppr |
| Maximum Supply Voltage | 30V |
| Overall Depth | 44.35mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | TTL, HTL |
Key Features
- The encoder supports a maximum speed of 9000 rpm for high-speed operations.
- Solid shaft design with a 10 mm diameter ensures robust mechanical connection.
- Provides incremental output signals compatible with TTL and HTL interfaces.
- Compact housing of 58 mm diameter and 44.35 mm depth for easy installation.
- High IP65 protection rating allows reliable operation in harsh environments.
- Wide operating temperature range from -30°C to 100°C for industrial versatility.
- Mounting options include full shaft face mount and servo flange with multiple hole patterns.
- Constructed with rugged design and large bearing distance for extended service life.
Product Description
SICK DBS60 Core Series Incremental Encoder DBS60 operates at 30V and delivers 1000 pulses per revolution with TTL and HTL output signal options, designed for precise motion control. The solid shaft with a diameter of 10 mm provides a sturdy and reliable mechanical connection, suitable for various industrial environments.
The encoder supports a maximum rotational speed of 9000 rpm, with a compact housing diameter of 58 mm and installation depth of 44.35 mm, enabling space-saving setups. Its IP65 rating ensures protection against dust and water, making it suitable for demanding industrial conditions.
Featuring a wide temperature range from -30°C to 100°C, the DBS60 is versatile for applications with fluctuating temperatures. Mounting options include full shaft, face mount flange, and servo flange with diverse hole patterns to accommodate various assembly requirements.
The rugged design incorporates a large bearing distance for enhanced shaft load tolerance and increased lifespan. The device complies with multiple standards including EN 60068-2-27, EN 60068-2-6, EN 61000-6-2, EN 61000-6-3, and EN ISO 13849-1, attesting to its durability and quality.
Typical industrial applications encompass position, speed, and distance measurement in asynchronous motors, elevators, packaging machines, warehousing, transport logistics, conveyor speed measurement, and transfer system monitoring.
The encoder supports up to 10,000 pulses with multiple interface options including TTL and HTL. Compact and robust compact housing suits various automation and control environments. Wide operating voltage range from 4.5 V DC to 30 V DC enables flexible integration.
High enclosure rating and temperature resistance suit harsh industrial conditions. Multiple mechanical mounting and shaft configurations provide installation flexibility. Diverse connection types including cable, M12 and M23 male connector ensure adaptable cabling.
The SICK DBS60 is an ideal incremental encoder for standard industrial measurement tasks across manufacturing, logistics, and automation sectors. Explore more products in the Incremental Encoder category at EnvMart for advanced automation and sensor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DBS60 encoder supports a maximum rotational speed of 9000 rpm, making it suitable for high-speed operations.
This model provides incremental output signals compatible with TTL and HTL interfaces.
It operates within a wide temperature range from -30°C to 100°C, allowing for use in various industrial environments.
The encoder has a compact housing with a diameter of 58 mm and a depth of 44.35 mm.
It features a solid shaft with a diameter of 10 mm, ensuring a robust mechanical connection.
The encoder has an IP65 protection rating, which ensures reliable operation in harsh environments.
Mounting options include full shaft face mount and servo flange with multiple hole patterns for flexibility in installation.
The maximum supply voltage for this encoder is 30V.
This encoder delivers 1000 pulses per revolution (ppr), suitable for precise motion control applications.
The switching frequency of this model is 300 kHz, allowing for fast response times in measurement tasks.
Typical applications include position, speed, and distance measurement in asynchronous motors, elevators, and conveyor systems.
It uses a cable terminal type for connection, providing flexibility in installation.
