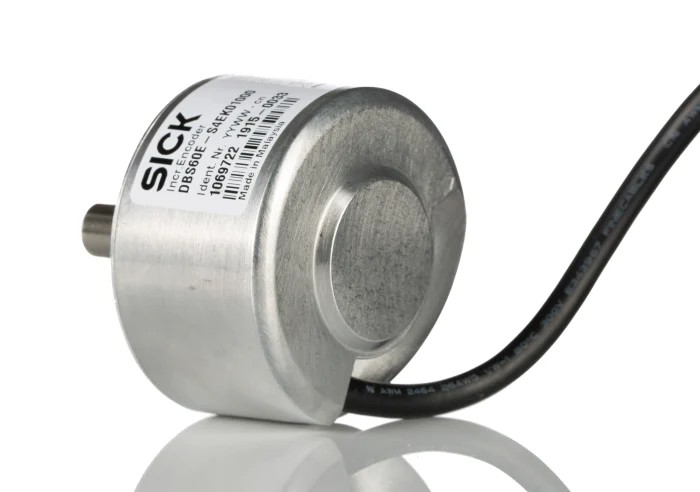

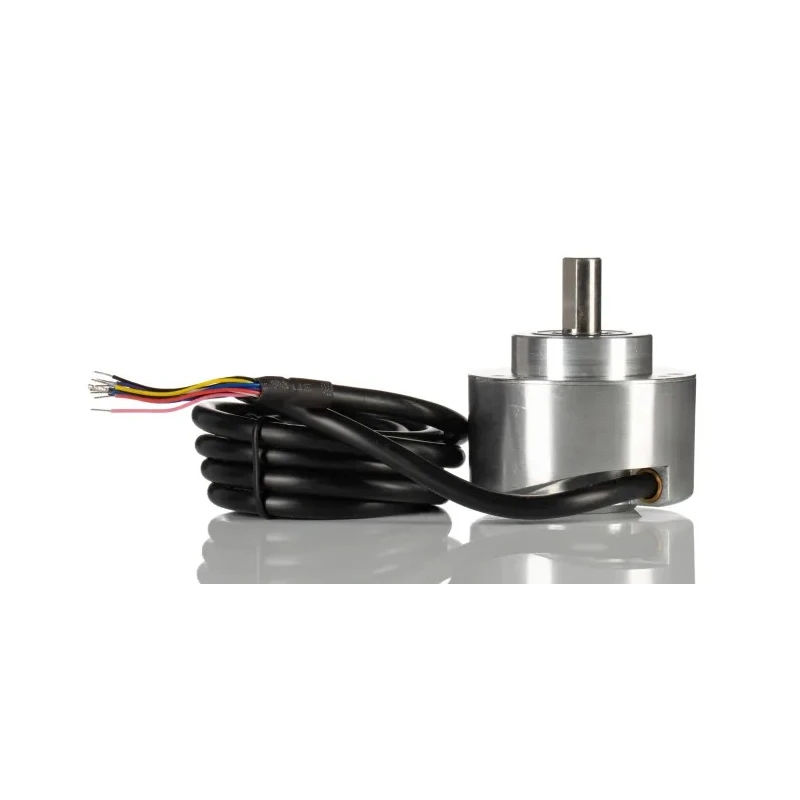

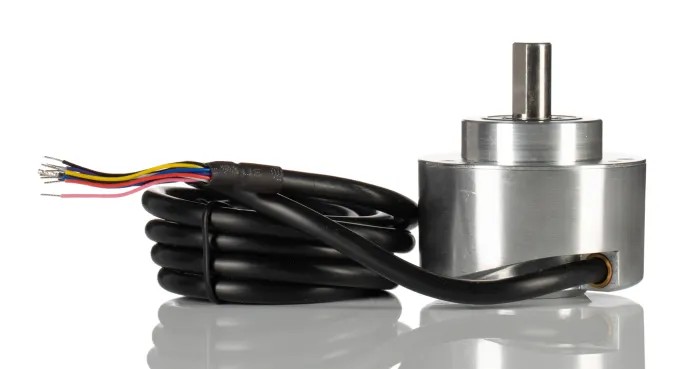

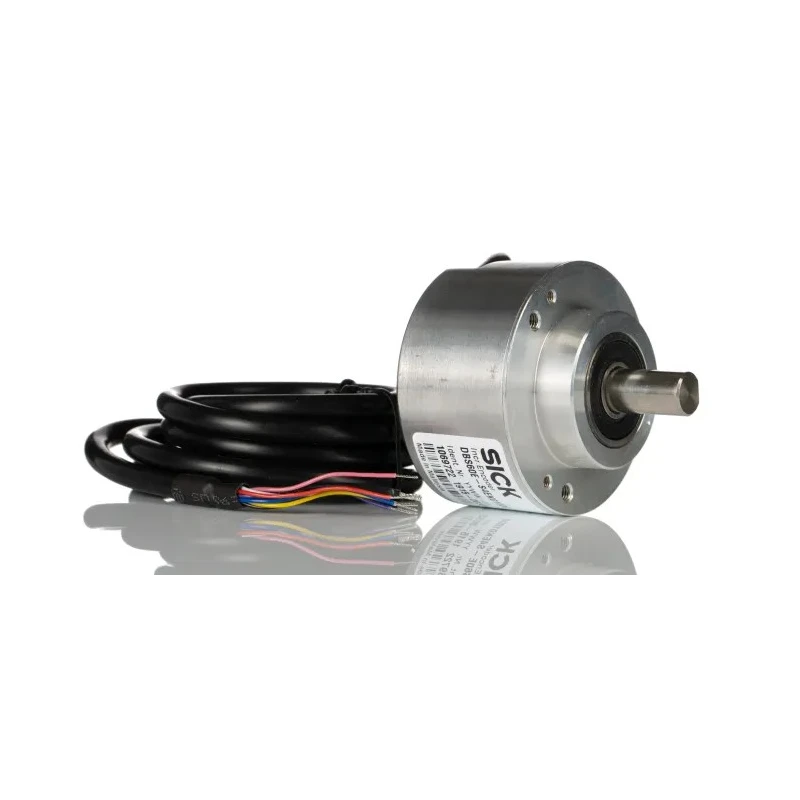

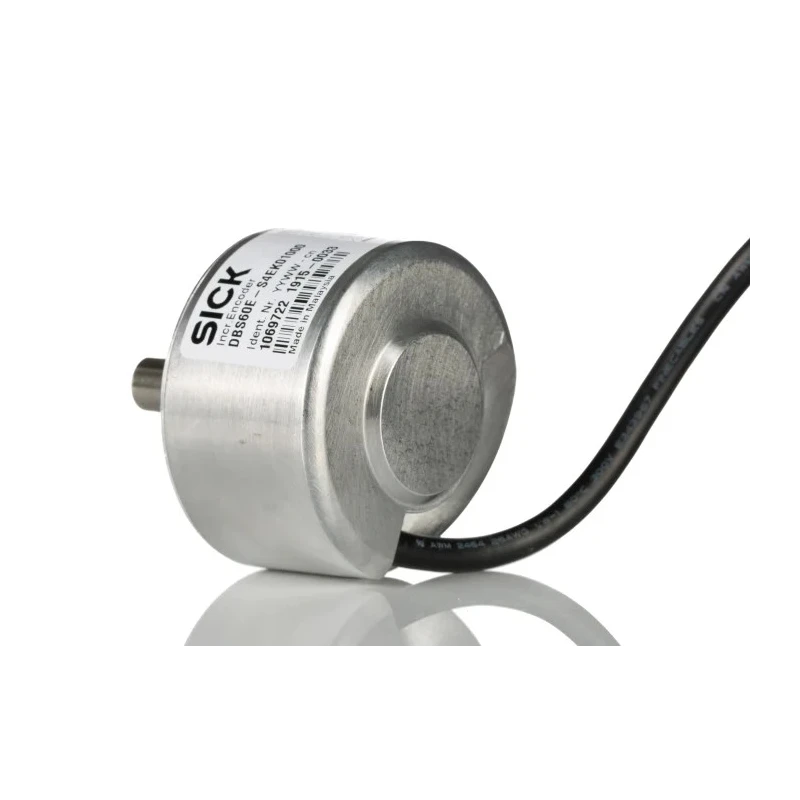

SICK Incremental Encoder 30V, 3600 PPR, HTL, TTL Signal, Solid Shaft 6 mm, IP65, DBS60

SICK DBS60 incremental encoder model DBS60 is designed with a 6 mm solid shaft and operates at a maximum supply voltage of 30V. It delivers 3600 pulses per revolution with HTL and TTL output signals, ideal for precision position and speed measurements in industrial automation and motion control applications.

The encoder features a robust IP65 rated housing that safeguards it from dust and water ingress, making it suitable for demanding environments. It supports rotational speeds up to 9000 rpm and a switching frequency of 300 kHz, ensuring high-speed performance and accurate signal output.

This device offers flexible mounting options with full shaft mount and compact overall dimensions of 58 mm height and width, and 44.35 mm depth, optimizing space usage in equipment installations. Its operating temperature range of -30°C to 85°C ensures reliability across various industrial conditions.

Compliance with EN 61000-6-2 and EN 61000-6-3 standards guarantees electromagnetic compatibility in industrial setups. The product is delivered with a cable terminal for connection and is built with a solid shaft to withstand machine stresses.

Applications include factory automation, elevators, packaging machines, warehousing logistics, roller conveyor speed monitoring, and transfer system position control. The encoder enables precise control, speed measurement, and smooth acceleration and deceleration in diverse machinery.

The encoder operates with HTL and TTL output signal types for accurate motion feedback. Compact, rugged design with IP65 ingress protection suitable for harsh environments. High pulse resolution of 3600 ppr enables fine position measurements.

Wide operating temperature range from -30°C to 85°C for industrial reliability. Supports maximum rotational speed of 9000 rpm and switching frequency of 300 kHz. Full shaft mounting type with solid 6 mm shaft diameter ensures stable installation.

Meets electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3. Applications span automation, conveyor speed monitoring, elevator control, and packaging machinery. Explore more sensors and Incremental Encoders in the Electronics & Electricals Sensors category at EnvMart for industrial and automation needs.
