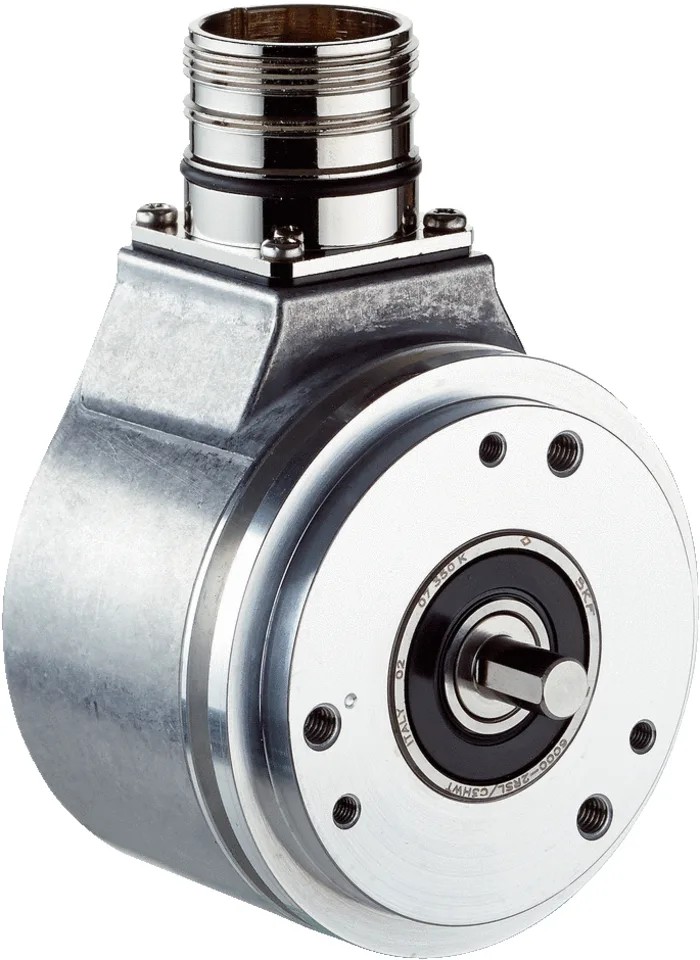

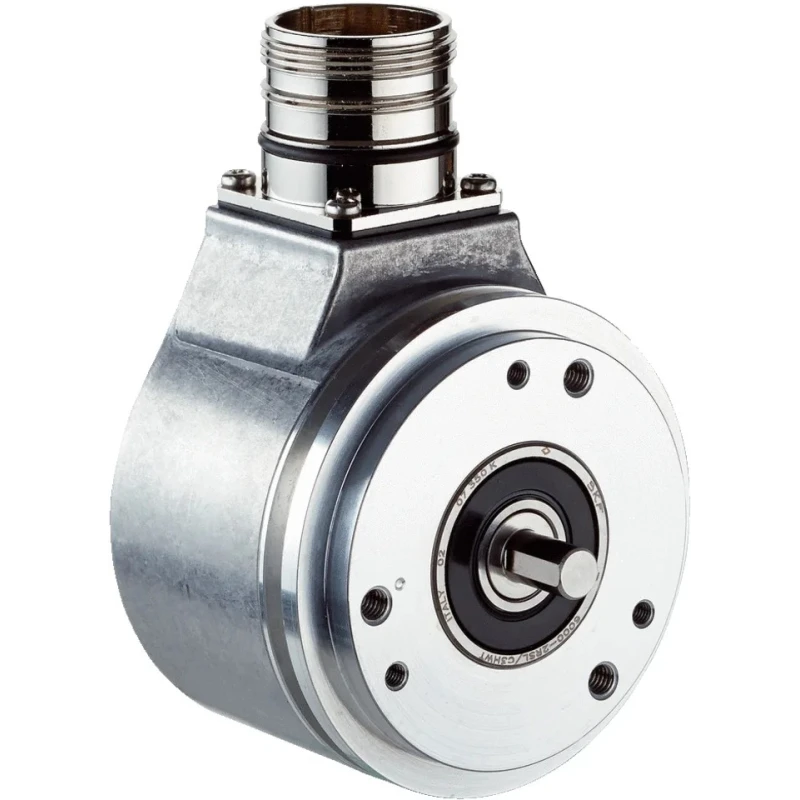

SICK DBS60 Core Series Incremental Encoder 30V, 1000 ppr, HTL and TTL Signal, Solid Shaft 6 mm DBS60

SICK DBS60 Core Series incremental encoder model DBS60 operates at 30V with a 1000 pulses per revolution feature and HTL/TTL output signals. This encoder comes with a solid shaft diameter of 6 mm and a compact housing diameter of 58 mm with an overall depth of 44.35 mm. It is engineered for precise measurement of position, speed, and distance in various industrial environments.

Its robust design includes an IP65 rating ensuring protection against dust and water ingress, making it suitable for demanding factory and logistics automation applications such as asynchronous motors, elevators, packaging machinery, and conveyor monitoring. The unit supports a maximum rotational speed of 9000 rpm, with a switching frequency of 300 kHz, allowing fast and accurate signal processing.

The encoder is equipped with a plug-in terminal type and accommodates face mount and servo flange installation variations. Operating temperature ranges from -30°C to 100°C, supporting use in a broad scope of environmental conditions. Compliance with EN 61000-6-2, EN 61000-6-3, and EN ISO 13849-1 ensures industrial electromagnetic compatibility and safety standards.

Notably, the DBS60 Core series also offers options such as hollow shafts with insulation and various flange and coupling versions for flexible installation, reducing storage costs and providing rugged performance with extended service life. Its universal interfaces unify 5 V TTL and 24 V HTL as well as 5 V TTL and 24 V TTL, providing versatile connectivity options.

This incremental encoder is ideal for applications requiring low to medium encoder specifications with jerk-free acceleration, precise height monitoring, and smooth transfer system positioning. Its diverse mounting options and robust construction suit industries engaged in manufacturing, packaging, water treatment, conveyor speed measurements, and elevator control systems.

Provides accurate position, speed, and distance measurement in industrial applications. Compact 58 mm diameter housing with IP65 protection rating. Supports maximum speed up to 9000 rpm suitable for diverse motor control.

Includes plug-in terminal type for reliable connections. Wide operating temperature range from -30°C to 100°C for harsh environments. Switching frequency up to 300 kHz for fast response signal output. Compliant with standards EN 61000-6-2, EN 61000-6-3, and EN ISO 13849-1.

Designed for factory and logistics automation with flexible installation options. Explore the full range of Incremental Encoders and automation sensors available at EnvMart for advanced industrial control and measurement solutions.
