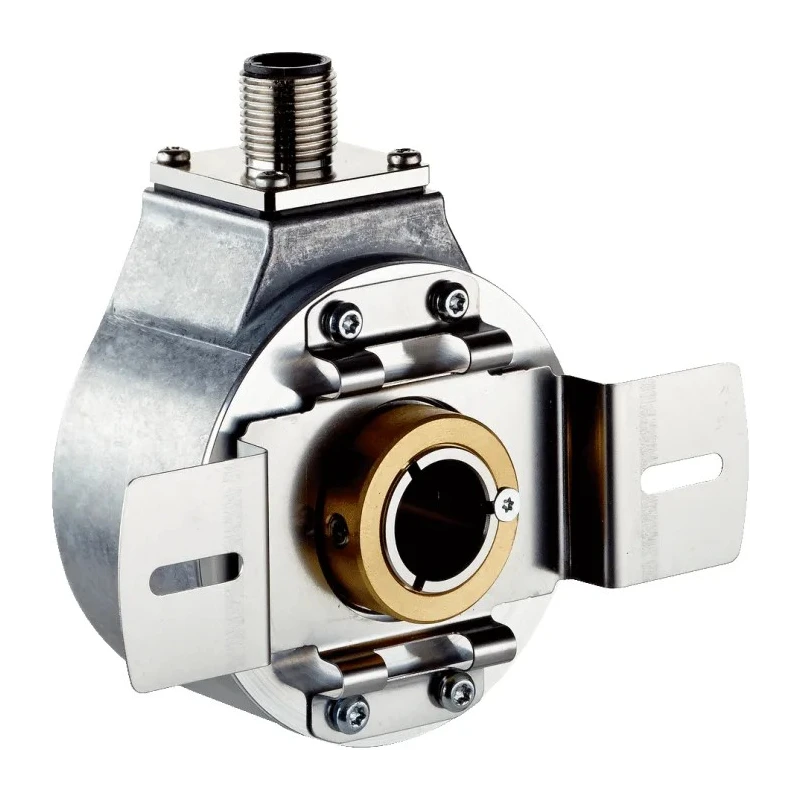

SICK Incremental Encoder DBS60 Core Series Blind Hollow Shaft 14 mm 5.5V 2048 PPR TTL Signal DBS60

SICK DBS60 Core Series incremental encoder model DBS60 designed with a blind hollow shaft of 14 mm diameter operates at a supply voltage of 5.5 V. This encoder provides an output signal type TTL at 2048 pulses per revolution (ppr), ideal for precise position and speed measurement tasks in industrial applications.

Its compact housing with a diameter and height of 58 mm and an overall depth of 43.8 mm allows installation in constrained spaces. The IP65-rated enclosure protects the device against dust and water making it suitable for harsh factory and logistical environments.

This incremental encoder supports high speeds up to 9000 rpm and switching frequencies up to 300 kHz, ensuring accurate signal processing even in fast-moving machinery. Hollow shaft mounting facilitates mechanical integration, and the plug-in terminal type enables convenient connection.

Designed following EN 61000-6-2 and EN 61000-6-3 standards, it meets rigorous electromagnetic compatibility requirements, ensuring reliable operation without interference.

The DBS60 Core is widely applied in automation fields such as asynchronous motors, elevators, packaging machines, warehousing, and transport logistics systems. It is capable of measuring position, speed, and distance with high reliability and ruggedness.

Manufactured in Malaysia, the encoder combines durability with precision. Its insulated hollow shaft reduces shaft temperatures and current issues, while large bearing distances support high shaft loads and extend service life.

The encoder features a robust blind hollow shaft suitable for shafts up to 14 mm diameter. Operates at a maximum speed of 9000 rpm, providing precise incremental position feedback. Provides a TTL signal output compatible with RS422 interface for reliable signal transmission.

Compact housing with 58 mm diameter and 43.8 mm depth allows for space-efficient mounting. Rated IP65 for protection against dust and water ingress, suitable for industrial environments. Wide operating temperature range from -20°C to 85°C supports various application conditions.

Switching frequency up to 300 kHz ensures high-speed signal processing capability. Designed for hollow shaft mounting with plug-in terminal type for easy installation. Certified with EN 61000-6-2 and EN 61000-6-3 standards ensuring electromagnetic compatibility.
