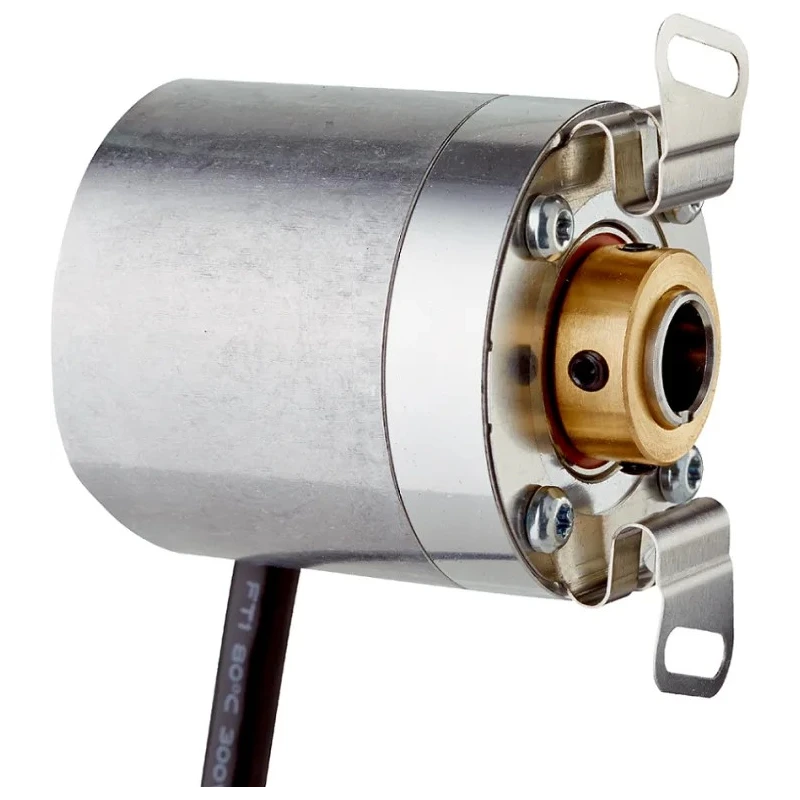

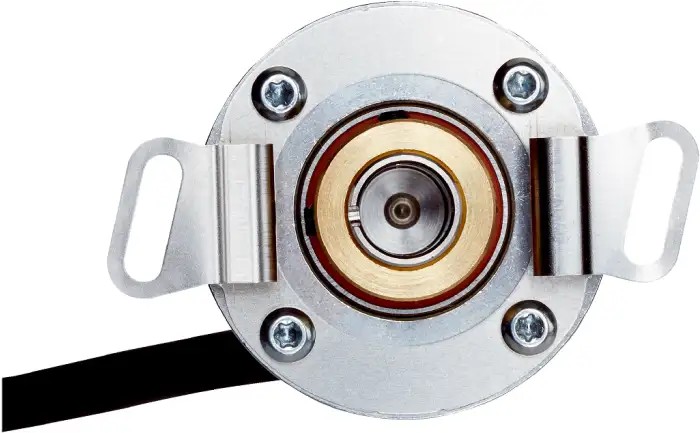

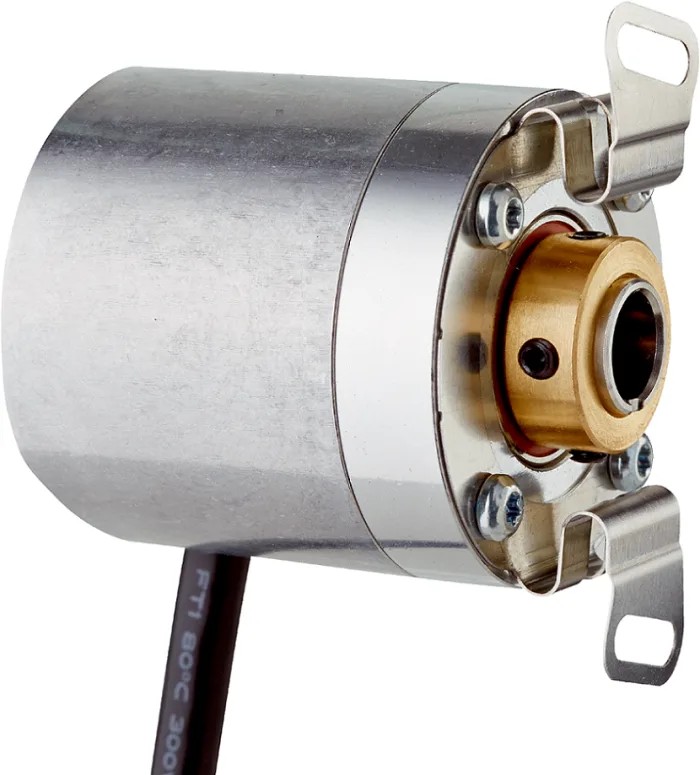

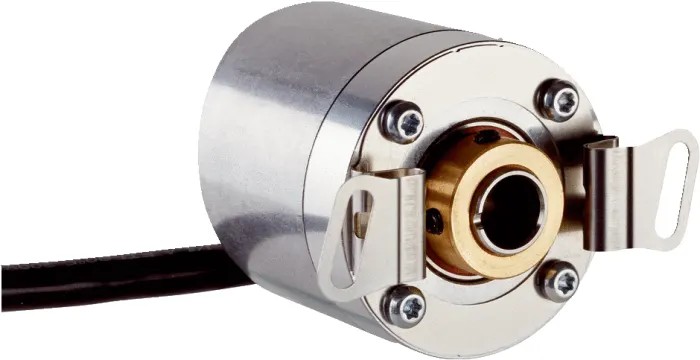

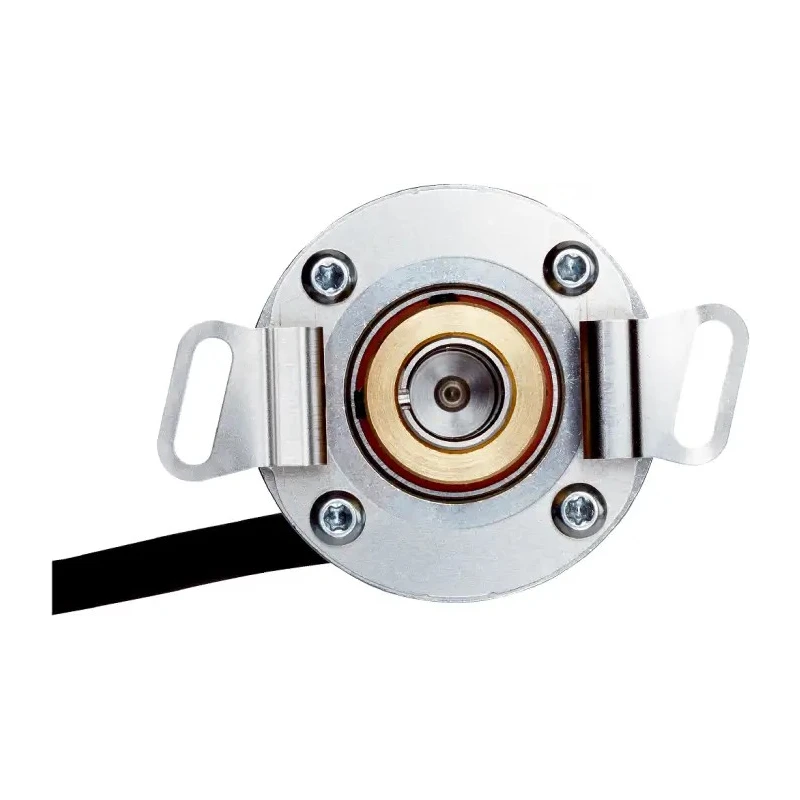

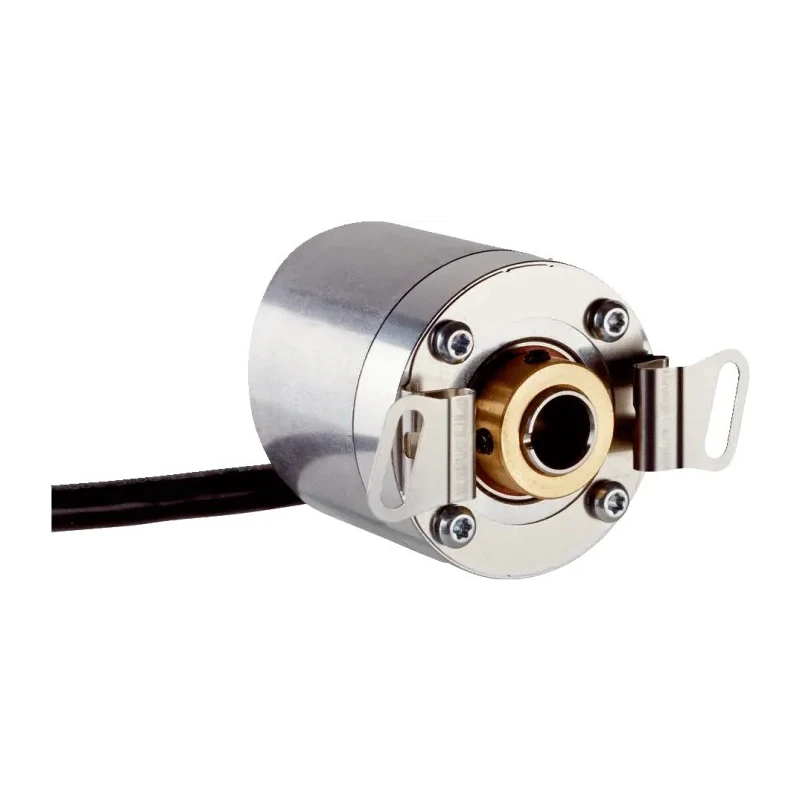

SICK DBS36 Core Series Incremental Encoder 30V, 1000 ppr, HTL Signal, Hollow Shaft 8 mm DBS36

The SICK DBS36 Core Series Incremental Encoder model DBS36E-BBEP01000 / 1064687 is a high-precision device designed for industrial and automation applications requiring accurate position feedback. It features a 1000 pulses per revolution resolution with an HTL output signal type and an 8 mm hollow shaft diameter. Operating voltage ranges up to 30 V, this encoder supports various system configurations.

Compact in size with dimensions of 37 mm height and width, and a depth of 45.4 mm, the encoder fits well in constrained spaces. The robust housing is rated IP65, providing dust-tight protection and resistance to water jets, ensuring reliability in harsh manufacturing environments.

With a maximum rotational speed of 8000 rpm and a switching frequency of 300 kHz, this encoder is suited for dynamic and precise motion control tasks, such as robotics, conveyor monitoring, and packaging machines. It also complies with international electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3 (class A).

Its cable terminal type facilitates straightforward connection and maintenance, while the wide operating temperature range of -20°C to +85°C supports reliable performance in diverse industrial settings. The hollow shaft mount type further simplifies installation in various machinery setups requiring an 8 mm shaft diameter.

Applications include integration in motion control systems, robotics for accurate position tracking, manufacturing automation, and process control in packaging and conveyor systems. The encoder's high resolution and robust output signal ensure precise feedback essential for efficient operation.

Provides 1000 pulses per revolution for high resolution position sensing. Operates with a supply voltage up to 30V for versatile industrial use. Hollow shaft design with 8 mm diameter for straightforward installation. Robust HTL output signal ensures reliable communication over long distances.

Compact dimensions of 37 mm width and height with 45.4 mm depth. Wide operating temperature range from -20°C to +85°C for harsh environments. IP65 rated housing protects against dust and water jets. Maximum rotational speed up to 8000 rpm suitable for dynamic applications.

Includes cable terminal type for easy connection and maintenance. Complies with EN 61000-6-2 and EN 61000-6-3 electromagnetic compatibility standards. Explore more sensors and automation components in the Motion Control Sensors category at EnvMart for reliable industrial solutions.
