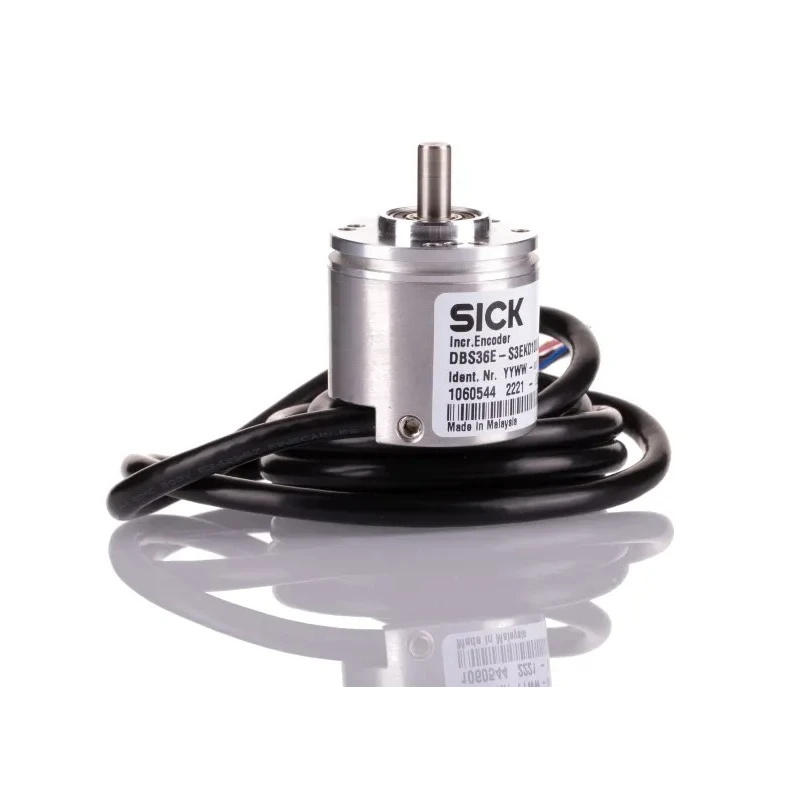

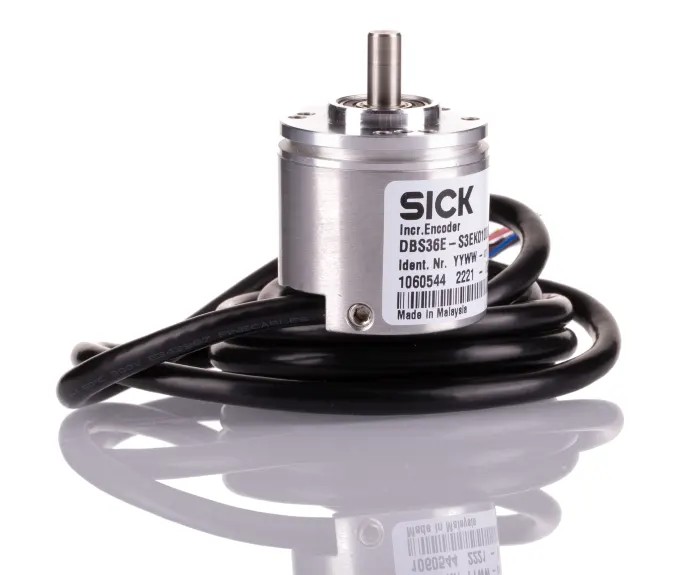

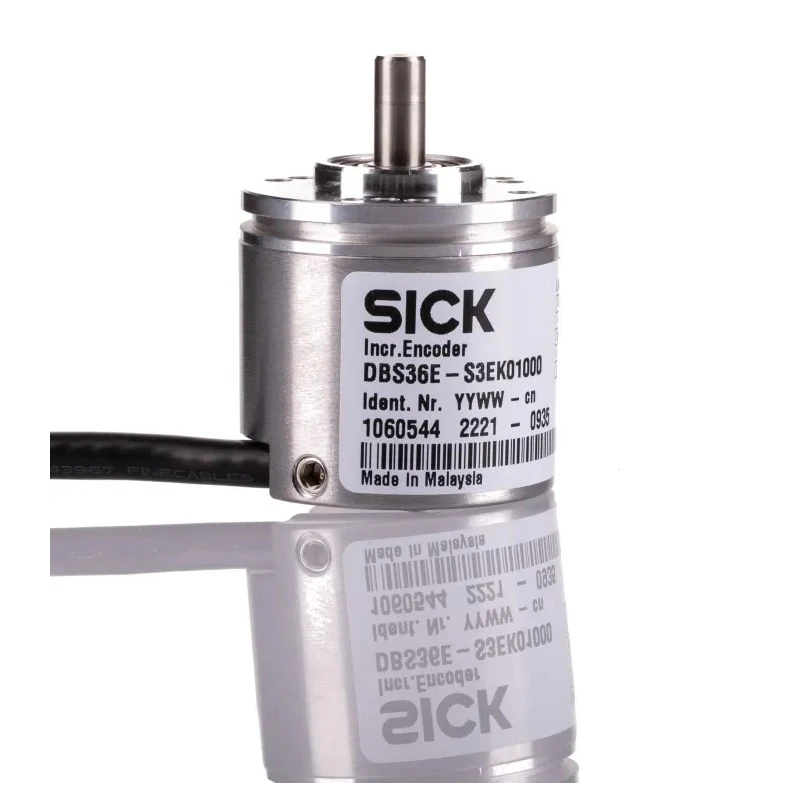

SICK DBS36 Core Series Incremental Encoder 30V, 1000 PPR, HTL Signal, Solid 6 mm Shaft DBS36
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Temperature range | - 20 °C ... +85 °C |
| Model | DBS36 |
| IP Rating | IP65 |
| Mount Type | Full Shaft |
| Series | DBS36 Core |
| Overall Width | 37mm |
| Maximum Operating Temperature | 85°C |
| Enclosure Rating | IP65 |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 6mm |
| Communication Interfaces | TTL/RS-422, HTL/push pull, Open Collector |
| Overall height | 37mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Terminal type | Cable |
| Pulses per Revolution | 1000ppr |
| Standards/Approvals | EN 61000-6-2 and EN 61000-6-3 (class A) |
| Maximum Supply Voltage | 30V |
| Overall Depth | 35.5mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 8000rpm |
| Output Signal Type | HTL |
Key Features
- High mechanical flexibility with solid shaft and full shaft mount type.
- Compact housing with IP65 enclosure rating for reliable protection.
- Supports maximum 8000 rpm rotational speed and switching frequency of 300 kHz.
- Wide operating temperature range from -20°C to 85°C for harsh environments.

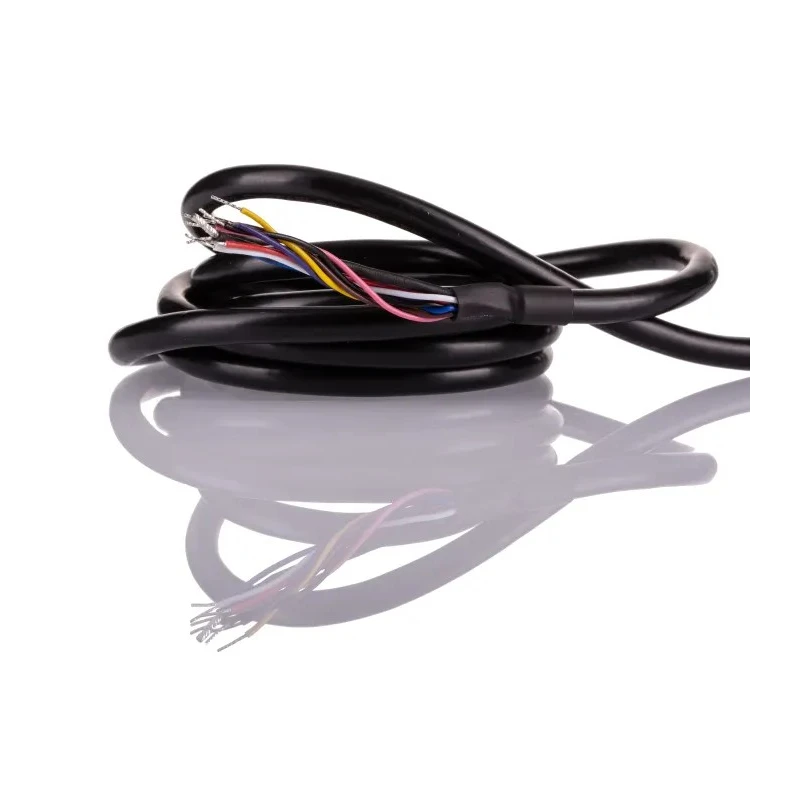

- Universal cable connection allows flexible cable routing in axial or radial direction.
- Complies with EN 61000-6-2 and EN 61000-6-3 electromagnetic compatibility standards.
- Suitable for positioning and speed measurement in industrial automation and motion control.
- Provides HTL/push pull output signal with multiple communication interface options.
Product Description
SICK DBS36 Core Series Incremental Encoder DBS36 offers precise incremental encoding with 1000 pulses per revolution at 30V supply. It features a solid shaft with 6 mm diameter and a compact design measuring 37 mm width, 37 mm height, and 35.5 mm depth. This encoder outputs HTL signals and uses a cable terminal connection suitable for versatile industrial applications.
The device supports operational speeds up to 8000 rpm and switching frequencies of 300 kHz, making it highly adaptable for rapid motion detection tasks. Its IP65 rated enclosure ensures protection from dust and water ingress, enabling performance in harsh environments. The temperature range from -20°C to 85°C accommodates a broad array of industrial settings.
The DBS36 series integrates universal cable connections for flexible routing and multiple flange mounting options including full shaft mount. It adheres to electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3 (class A), ensuring stable and interference-resistant operation.
Applications include positioning, speed measurement, and control in sectors such as packaging machines, textile industry, glass production, printing presses, conveyor systems, elevators, and automated guided vehicles. The encoder’s design caters to demanding motion control requirements while saving space due to its compact housing diameter.
High mechanical flexibility with solid shaft and full shaft mount type. Compact IP65 rated housing for dust and water protection. Supports up to 8000 rpm maximum rotational speed. Wide temperature operating range from -20°C to 85°C.
Universal cable connection for flexible installation. EMC compliant per EN 61000-6-2 and EN 61000-6-3 standards. Switching frequency up to 300 kHz for precise signal output. Multiple communication interfaces including TTL/RS-422 and HTL push-pull.
Durable operation tailored for industrial automation and motion control.
Explore the SICK DBS36 Core Series Incremental Encoders in EnvMart’s Sensors category for reliable motion control sensor solutions crafted for industrial automation and manufacturing environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed supported by the DBS36 incremental encoder is 8000 rpm.
This model outputs HTL signals and supports multiple communication interfaces including TTL/RS-422 and Open Collector.
The operating temperature range for the SICK DBS36 encoder is from -20°C to 85°C.
The DBS36 encoder has an IP65 enclosure rating, providing protection against dust and water ingress.
The DBS36 encoder provides 1000 pulses per revolution (PPR).
The dimensions of the DBS36 encoder are 37 mm in width, 37 mm in height, and 35.5 mm in depth.
This model features a solid shaft with a diameter of 6 mm.
The switching frequency of the DBS36 encoder is 300 kHz.
The DBS36 encoder complies with EN 61000-6-2 and EN 61000-6-3 electromagnetic compatibility standards.
The DBS36 encoder supports full shaft mounting.
The maximum supply voltage for the DBS36 encoder is 30V.
The DBS36 incremental encoder is suitable for positioning and speed measurement in industrial automation and motion control applications.
