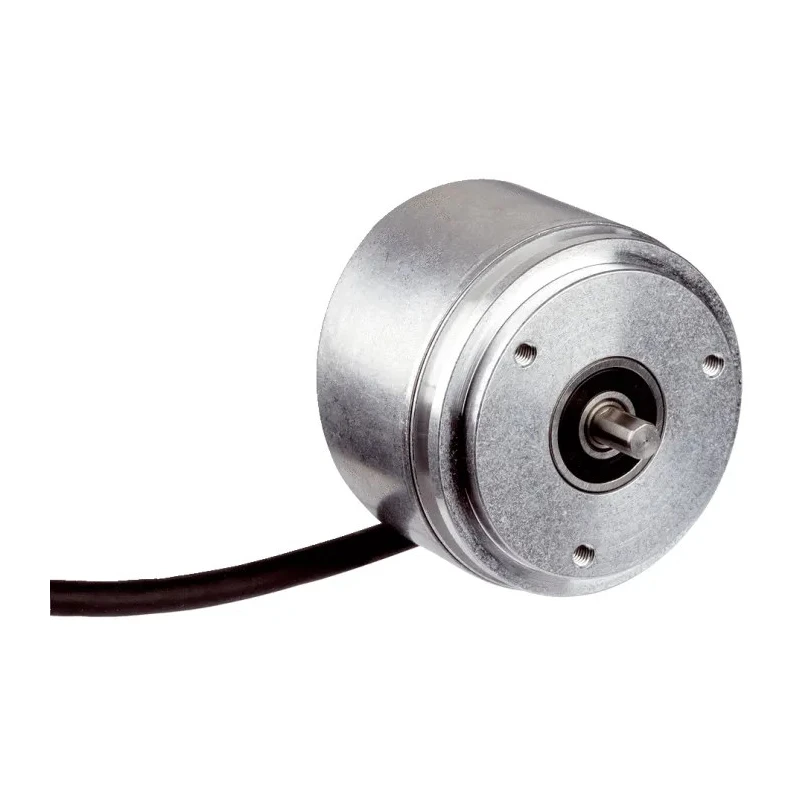

SICK DFS60 Series High-Resolution Incremental Encoder 32V, 10000ppr, TTL and HTL Signal, Solid 6 mm Shaft DFS60
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Connection | Radial or axial cable outlet, M23 or M12 male connector, axial or radial |
| Model | DFS60 |
| IP Rating | IP65 |
| Mount Type | Full Shaft |
| Series | DFS60 |
| Overall Width | 60mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -30°C |
| Shaft Diameter | 6mm |
| Overall height | 60mm |
| Switching Frequency | 600kHz |
| Shaft Type | Solid |
| Terminal type | Cable |
| Interface Type | Incremental |
| Pulses per Revolution | 10000ppr |
| Maximum Supply Voltage | 32V |
| Overall Depth | 43mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | TTL, HTL |
| Loop control | loop and speed measurement |
| Electrical interfaces | 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, 5 V sin/cos 1 Vss |
| Mechanical interfaces | Face mount flange or servo flange, blind hollow shaft or through hollow shaft |
| Optional programming | Output voltage, zero pulse position, zero impulse width, pulse number and counting direction |
Key Features
- Provides a high resolution of up to 16 bits for precise position measurement.
- Equipped with TTL and HTL signal outputs for versatile interface compatibility.
- Solid shaft type with 6 mm diameter ensuring reliable mechanical connection.
- Designed for robust industrial applications with IP65 protection rating.
- Wide operating temperature range from -30°C to 100°C for harsh environments.
- Supports maximum rotational speed of 9000 rpm suitable for high-speed systems.
- Includes multiple programmable features such as zero pulse position and counting direction.
- Offers various connection options including radial or axial cable outlet and M23 or M12 connectors.
Product Description
The SICK DFS60 Series high-resolution incremental encoder (model DFS60) operates at 32V and provides an exceptional pulse count of 10000ppr, suitable for demanding position and speed sensing tasks in industrial automation.
Featuring both TTL and HTL output signals, this solid shaft encoder has a 6 mm shaft diameter and is designed for reliable integration in rotary motion control systems requiring precise incremental feedback.
Its robust construction ensures protection up to IP65, enabling operation in dusty and humid environments.
Operating across a wide temperature range from -30°C up to 100°C, the DFS60 accommodates harsh industrial conditions. The encoder supports up to 9000 rpm maximum speed with a switching frequency of 600kHz, making it compatible with high-speed machinery.
The encoder is programmable via specialized tools allowing customization of output voltage, zero pulse position, pulse width, pulse number, and counting direction, facilitating adaptability to varied installation and operational requirements.
Mechanical interfaces include face mount flange or servo flange options with blind or through hollow shafts. Electrical interfaces support multiple voltage standards including 5 V and 24 V TTL/RS-422, 24 V HTL push-pull, and 5 V sin/cos 1 Vss signals.
High resolution of up to 16 bits ensures precise measurement for automation control. Customer-specific programming reduces storage costs and downtime. Excellent concentricity maintains accuracy at high rotational speeds.
Durable ball bearing system guarantees long operational life. Protection and design meet key industrial standards ensuring compliance and safety. Applications include conveyor belt monitoring, speed feedback for motors, printing position control, and furnace pusher detection.
Enclosure and temperature resistance make it suitable for dust conveying and fan operation in industrial systems.
This SICK incremental encoder is engineered in Germany and well-suited for industrial automation, manufacturing, HVAC, and agricultural machinery requiring high precision position feedback.
Explore more automation sensors and encoders in the Electronics & Electricals > Sensors > Incremental Encoder category on EnvMart for diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SICK DFS60 incremental encoder provides a maximum pulse count of 10000 pulses per revolution (ppr).
This model supports TTL and HTL output signal types, providing versatile interface compatibility for various applications.
The maximum rotational speed supported by the DFS60 encoder is 9000 revolutions per minute (rpm).
The operating temperature range for the SICK DFS60 is from -30°C to 100°C, making it suitable for harsh environments.
The overall dimensions of the DFS60 encoder are 60 mm in width, 60 mm in height, and 43 mm in depth.
The encoder offers face mount flange or servo flange options, with blind hollow shaft or through hollow shaft configurations.
This encoder operates with a maximum supply voltage of 32V and supports various electrical interfaces including 5 V & 24 V TTL/RS-422, 24 V HTL/push-pull, and 5 V sin/cos 1 Vss signals.
The SICK DFS60 encoder has an IP65 protection rating, ensuring it is dust-tight and protected against water jets.
Yes, the encoder includes optional programming features that allow customization of output voltage, zero pulse position, pulse width, pulse number, and counting direction.
This encoder is suitable for applications such as conveyor belt monitoring, speed feedback for motors, printing position control, and furnace pusher detection.
The DFS60 encoder features a solid shaft type with a diameter of 6 mm, ensuring a reliable mechanical connection.
The switching frequency of the SICK DFS60 encoder is 600 kHz, making it suitable for high-speed applications.
