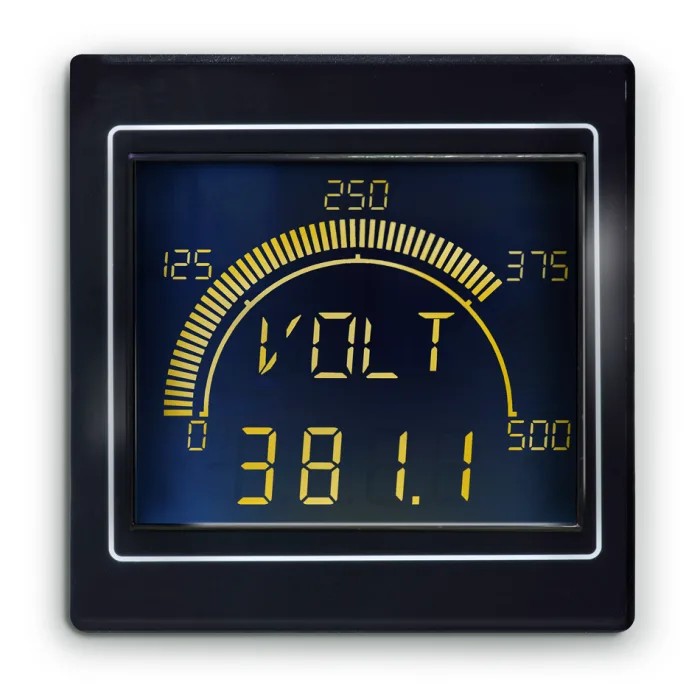

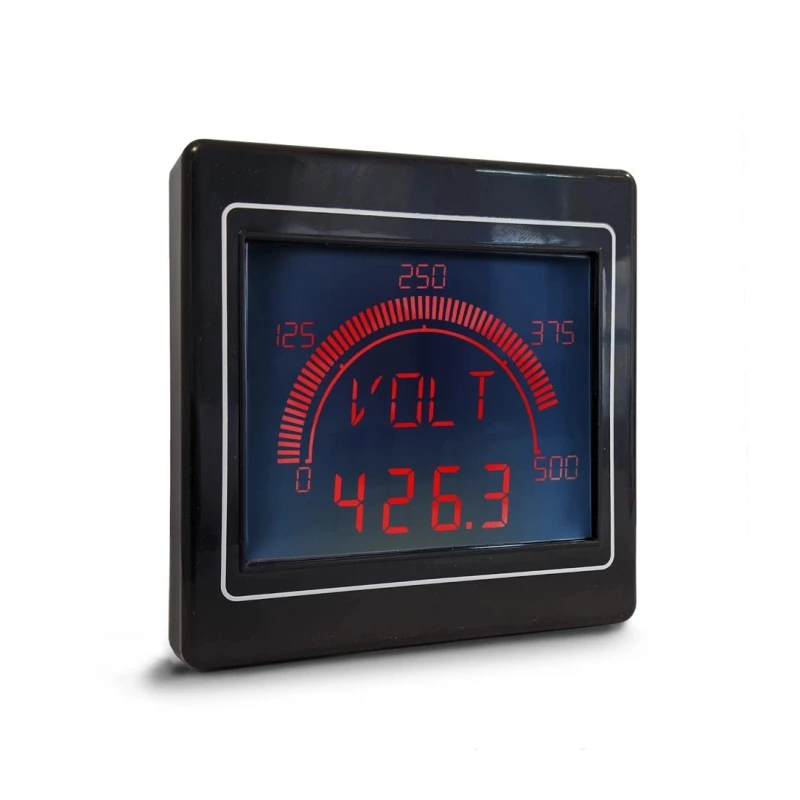

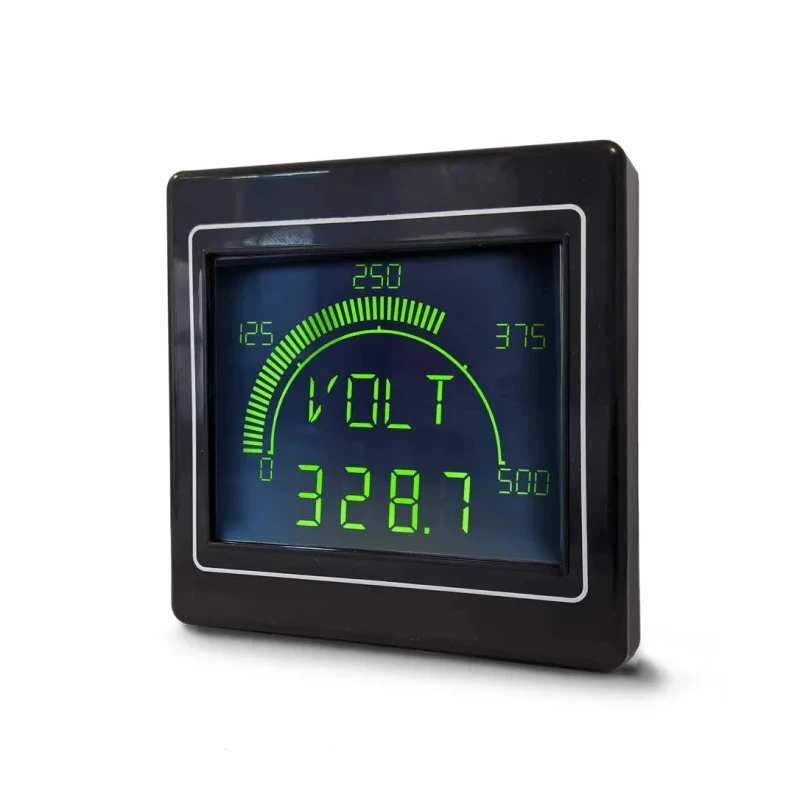

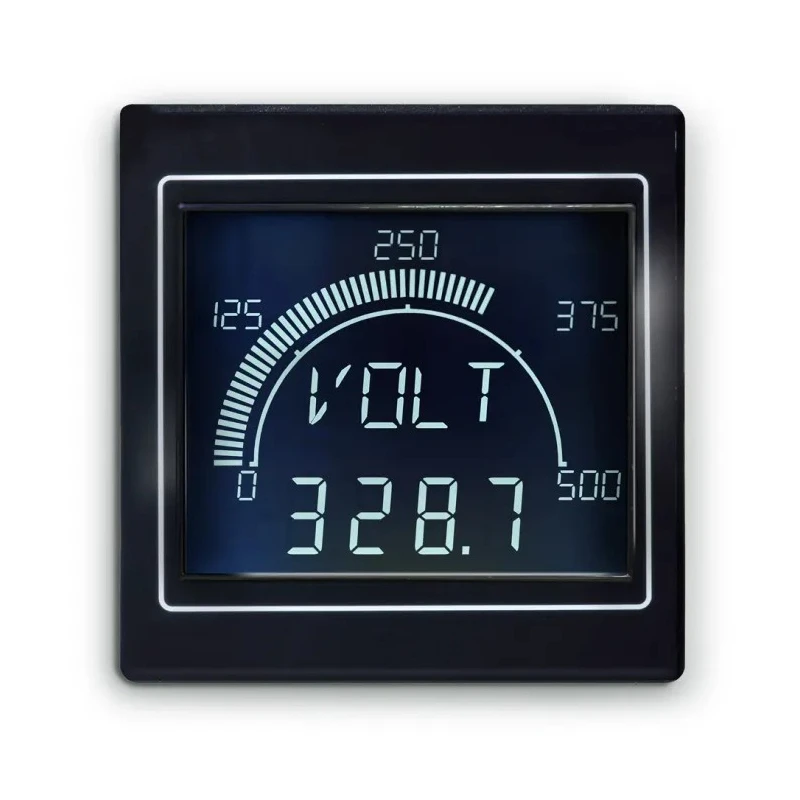

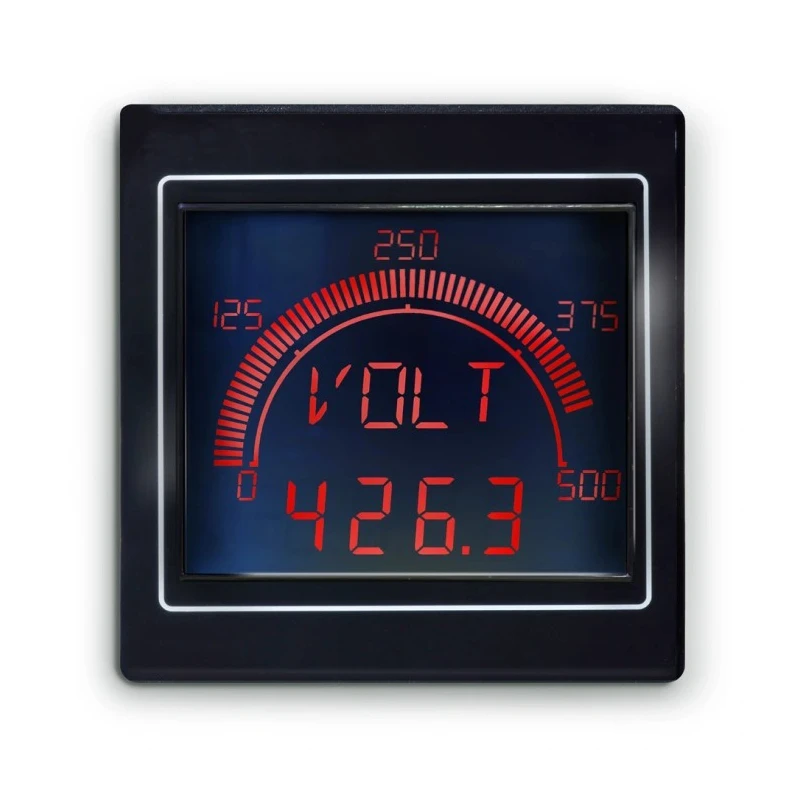

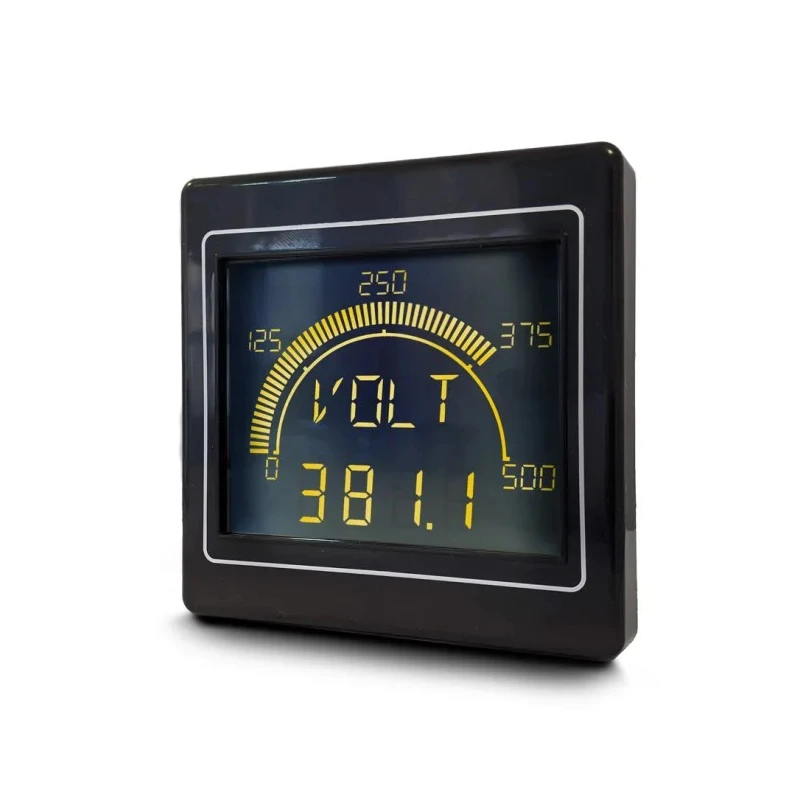

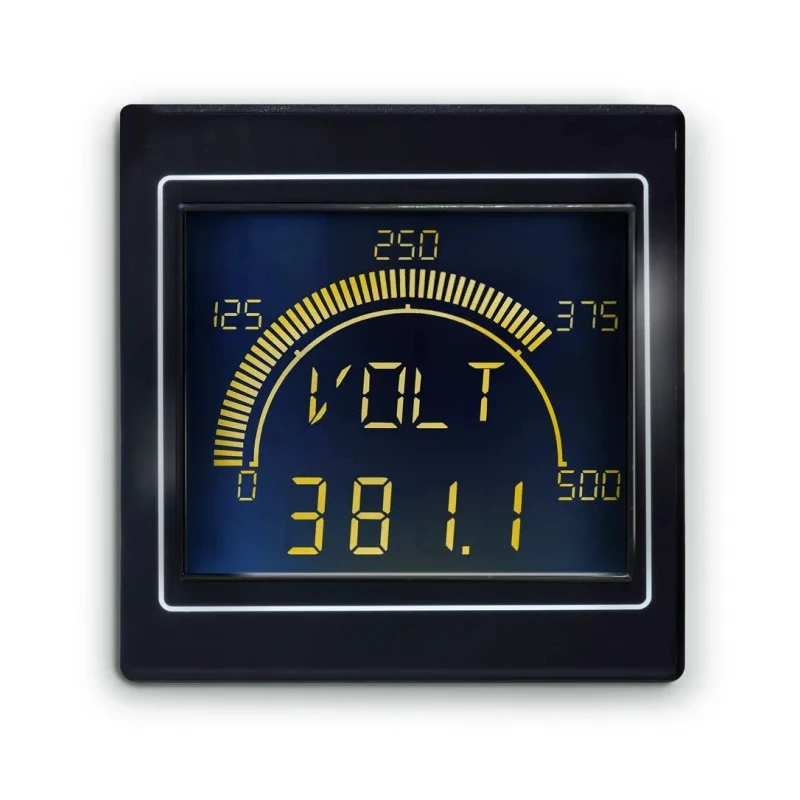

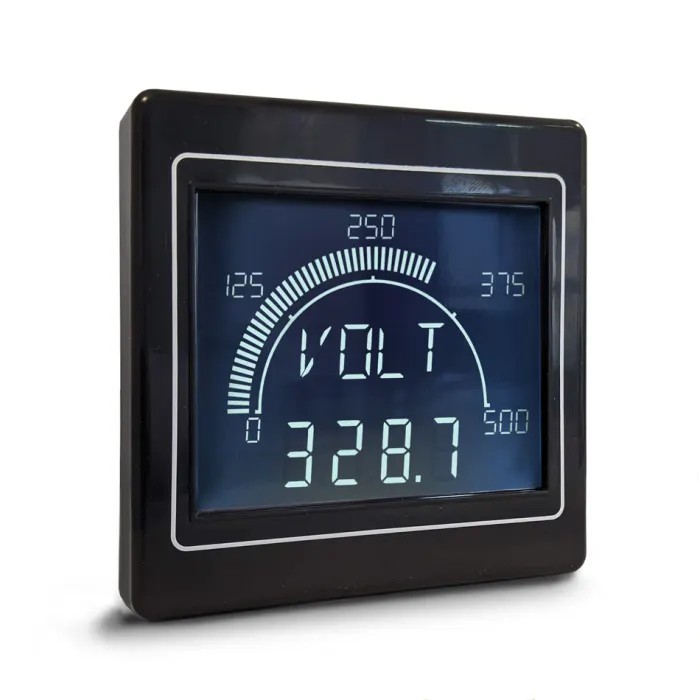

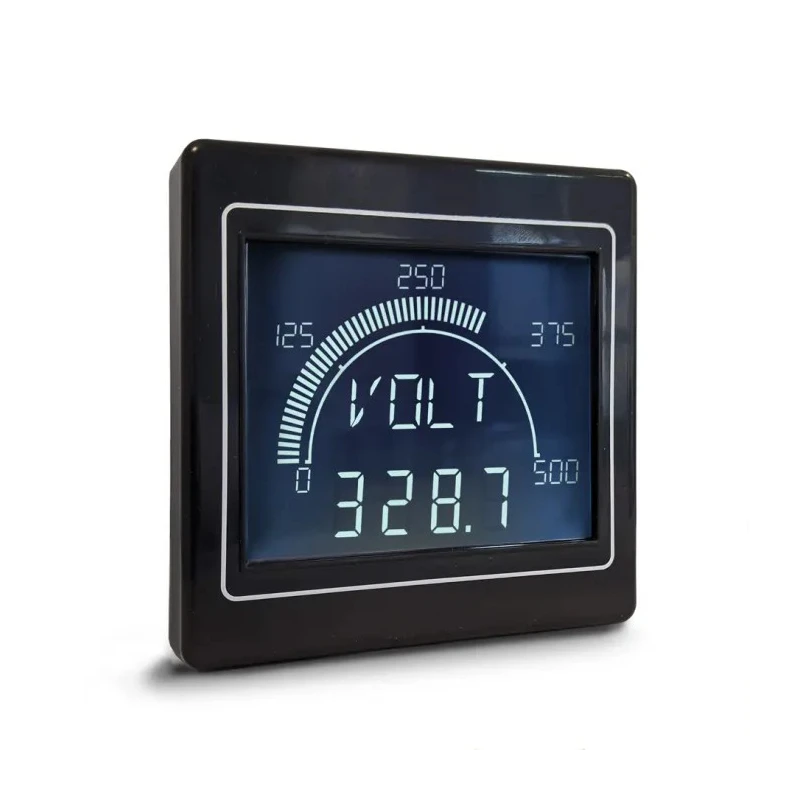

Trumeter APM LCD Digital Panel Multifunction Meter for Process Meter or a Shunt Meter, 68 mm x 68 mm APM-MAX-M23-NU-4R
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Display | screen |
| Brand | Trumeter |
| Model | APM-MAX-M23-NU-4R |
| Depth | 45mm |
| Series | APM |
| Maximum Operating Temperature | 60°C |
| Meter Type | Digital |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Digit height | 14.5mm |
| Standards/Approvals | UL and cUL, CE |
| Properties Measured | Process Meter or a Shunt Meter |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| 2 independent outputs | 2 digital (open collector), 1 analogue (4 - 20mA) |
Key Features
- Features a large, high contrast 4-digit LCD display with a 60-segment bar graph for precise and instant readings.
- Configurable as a process meter or for measuring 0 - 50mA DC direct, and 0-500mV DC using a shunt.
- Offers programmable scaling, range options, and a dynamic full-color RGB backlight for easy status alerts.
- Built to IP65 standard for protection against dust and water ingress in industrial environments.
- Compatible with Modbus RTU and TCP/IP protocols for seamless integration in automation systems.
- Operable within -10°C to 60°C ambient temperature range.
- Compact 108 mm x 108 mm front panel size with 45 mm depth, fitting common standard cutouts.
Product Description
Trumeter APM-MAX-M23-NU-4R digital panel multifunction meter designed specifically for lower voltage applications as a versatile process meter or shunt meter. It is equipped with a bright, anti-glare 4-digit LCD and a 60-segment bar graph, providing both analog-style visual cues and precise digital measurements.
This panel meter supports programmable scaling and range settings, including minimum and maximum values, offset, gain, center zero, and non-linearization scaling. It features two independent alarm setpoints with digital outputs and a 4 - 20mA analogue output, suitable for real-time monitoring and control.
The full-colour RGB dynamic backlight enhances visibility and provides instant alert signaling in complex industrial environments. It offers remote monitoring capability via Trumeter Cloud when integrated with the Trumeter IoT Gateway. The meter complies with UL, cUL, and CE standards and has an IP65 rating ensuring robust protection against dust and water exposure.
Designed to fit standard 108 mm x 108 mm (2.7 in square or 4 in circular diameter) panel cutouts with a 45 mm depth, it is ideal for use in HVAC, manufacturing, electrical process control, and laboratory automation systems. Operating temperature ranges from -10°C to 60°C, making it suitable for diverse industrial settings.
Large 4-digit LCD with 60-segment bar graph display for instant and accurate readings. Dynamic RGB backlight for configurable visual alerts and indications. Two independent digital alarm outputs and one analogue 4 - 20mA output.
Programmable scaling and range options for flexible installation and setup. Communication via Modbus RTU and TCP/IP for ease of integration. Robust IP65 panel rating for protection in harsh environments. Operates within a wide temperature range from -10°C to 60°C.
Standard 108 mm x 108 mm front panel size for universal mounting compatibility.
Set contains one Trumeter APM-MAX-M23-NU-4R Digital Panel Multifunction Meter. This product suits industrial, electrical, automation, and process control applications requiring precise, reliable measurements with advanced user configuration and communication options.
Explore more industrial automation meters and components on EnvMart for optimized process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure 0 - 50mA DC directly and 0 - 500mV DC using a shunt.
The front panel size is 108 mm x 108 mm with a depth of 45 mm, designed to fit standard cutouts.
It features a large, high contrast 4-digit LCD display along with a 60-segment bar graph for visual readings.
This model operates within a temperature range of -10°C to 60°C.
It is compatible with Modbus RTU and TCP/IP protocols, allowing for seamless integration into automation systems.
It has two independent digital outputs (open collector) and one analogue output of 4 - 20mA.
It complies with UL, cUL, and CE standards, ensuring it meets various safety and quality requirements.
It includes a dynamic full-color RGB backlight that provides visual alerts and improves visibility in complex environments.
It is ideal for use in HVAC, manufacturing, electrical process control, and laboratory automation systems.
The digit height of the display is 14.5 mm, allowing for clear visibility of readings.
It is classified as a digital panel multifunction meter, capable of functioning as either a process meter or a shunt meter.
It has an IP65 rating, providing protection against dust and water ingress in industrial environments.
