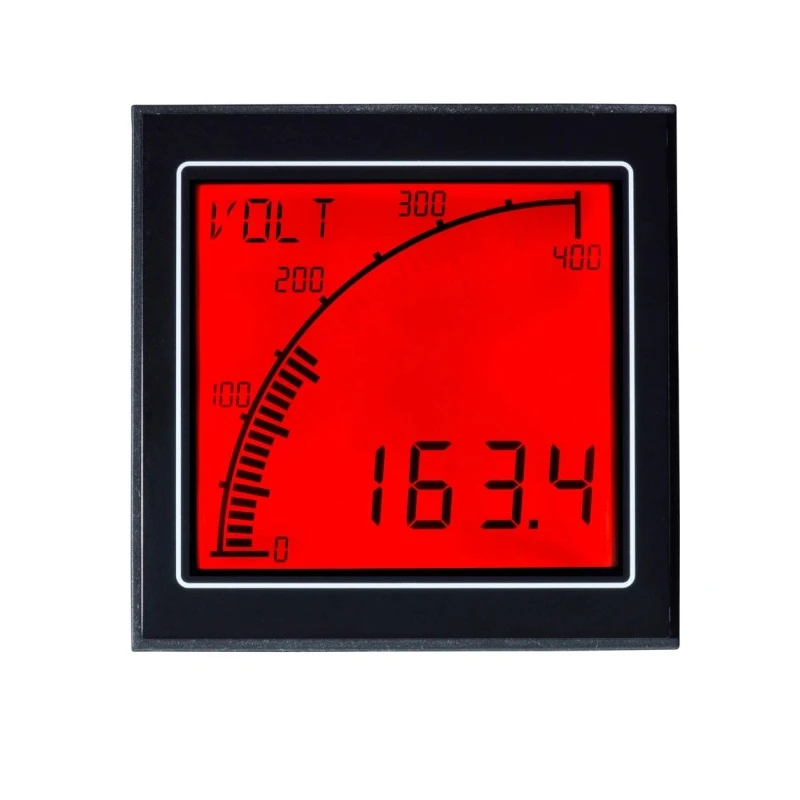

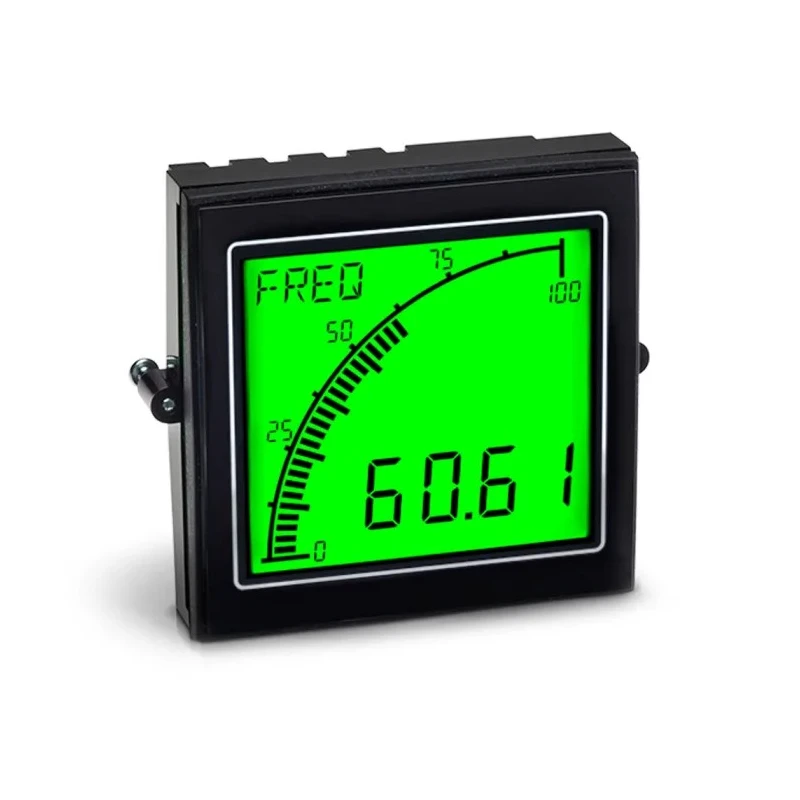

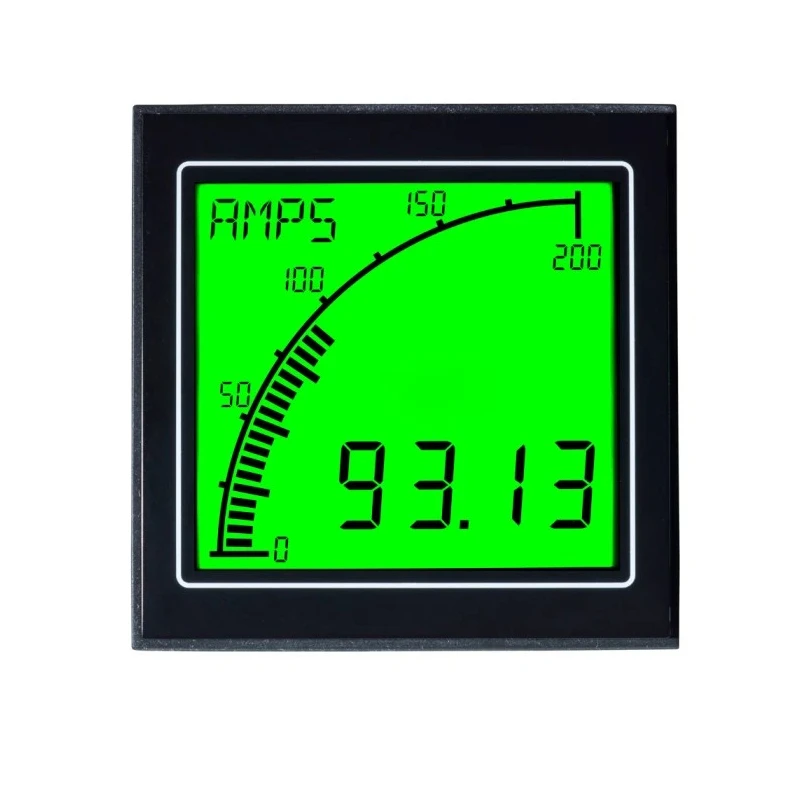

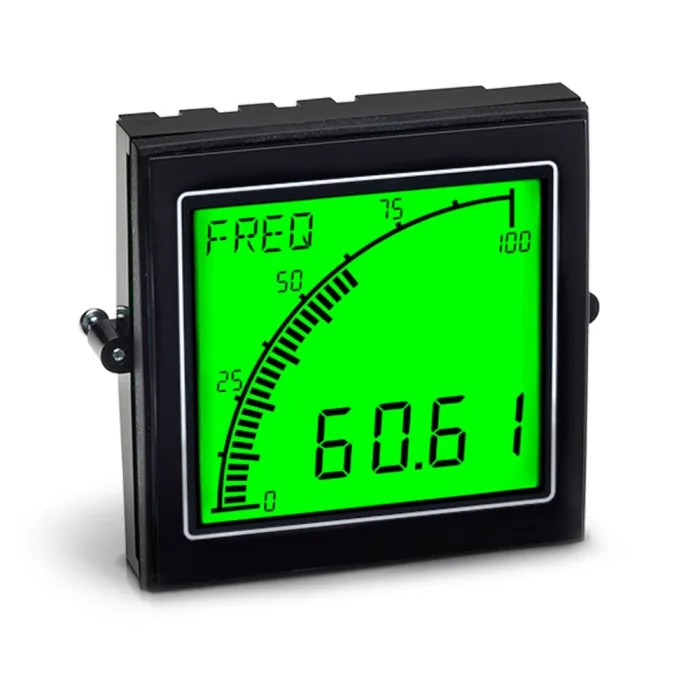

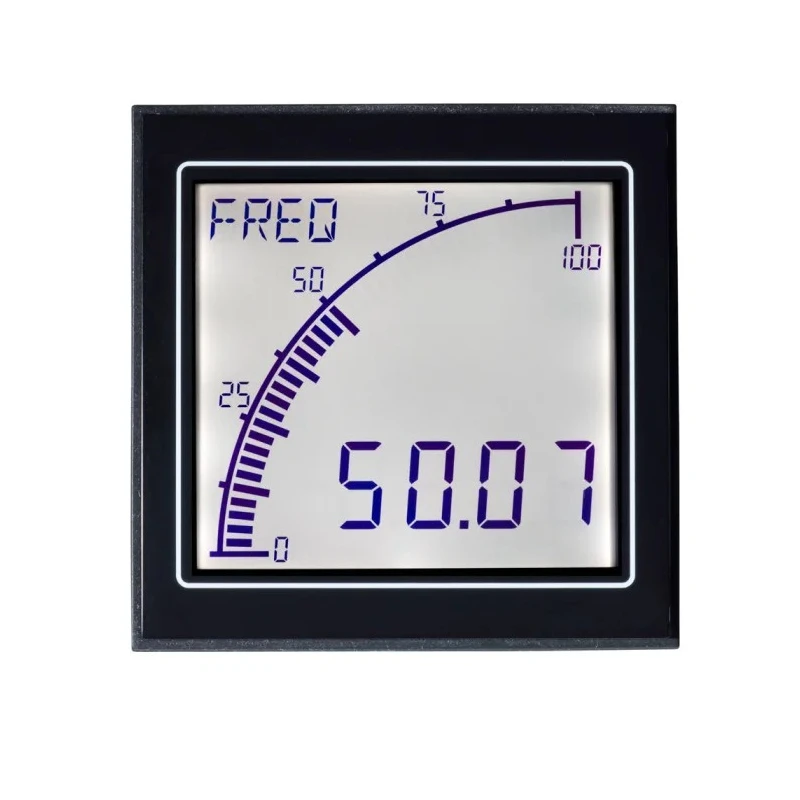

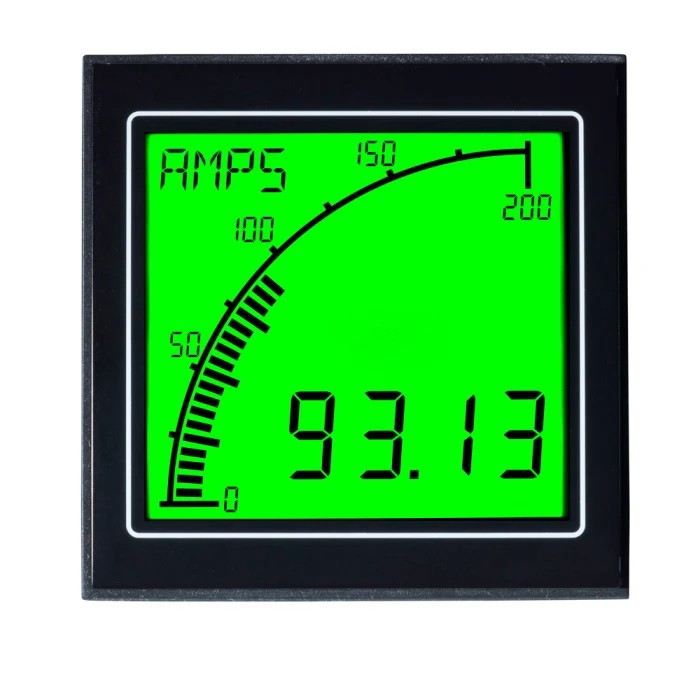

Trumeter APM LCD Digital Panel Multifunction Meter for Frequency, Voltage, MPS, 68 mm x 68 mm APM-M2-APO
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Brand | Trumeter |
| Model | APM-M2-APO |
| Depth | 53mm |
| Series | APM |
| Maximum Operating Temperature | 60°C |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | CE, UL, RoHS |
| Properties Measured | Frequency, Voltage, MPS |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
Key Features
- Measures frequency, voltage, and MPS with high accuracy.
- Features a clear LCD with 4 digits and 40-segment bar graph.
- Dynamic colour-changing backlight provides instant visual feedback.
- Highly configurable with free software for scaling, alarms, and messaging.
- Includes two independent outputs for digital or analogue signals.
- Allows remote monitoring via Trumeter Cloud with IoT Gateway integration.
- Robust build with IP65 protection and wide operational temperature range.
- Compact panel cutout size of 68 x 68 mm with 53 mm depth.
Product Description
Trumeter APM-M2-APO is an advanced LCD Digital Panel Multifunction Meter engineered for industrial and process control applications to measure frequency, voltage, and MPS. It features a compact 68 mm x 68 mm cutout size and a 53 mm depth, making it suitable for panel mounting in electrical systems.
This meter combines precise digital measurements with an analogue-style 40-segment bar graph and a large, anti-glare LCD display enhanced by a colour-changing backlight that signals different operational conditions, enhancing readability in various lighting environments.
The meter operates efficiently over a wide temperature range from -10°C to 60°C and offers IP65 enclosure protection, ensuring reliability in harsh industrial settings. Designed for flexibility, it supports extensive configuration options including scaling, gain adjustments, alarm setpoints, and messaging via free configuration software.

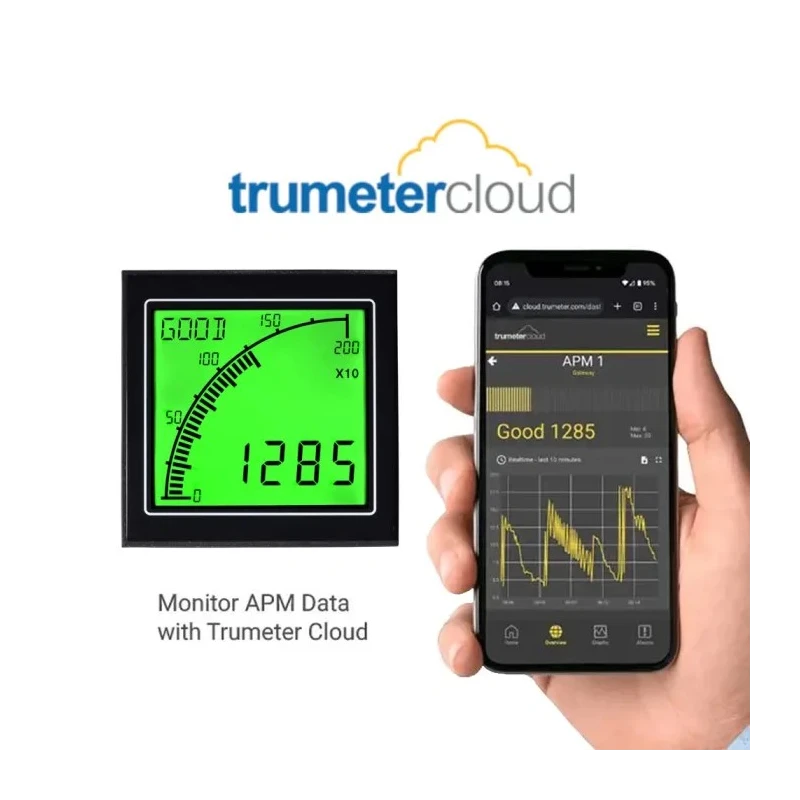

Two independent outputs can be configured as digital (open collector) or analogue (4-20 mA), enabling integration with external control or monitoring systems. When combined with the Trumeter APM IoT Gateway, this meter allows remote monitoring through the powerful Trumeter Cloud platform, providing real-time data logging, SMS, and email alerts that help maintain critical operational parameters.
Conforming to CE, UL, and RoHS standards, this meter meets stringent quality and safety requirements, making it ideal for use in electrical, automation, manufacturing, laboratory, HVAC, and other industrial environments.
Measures frequency, voltage, and MPS with high accuracy. Features a clear LCD with 4 digits and 40-segment bar graph. Dynamic colour-changing backlight provides instant visual feedback. Highly configurable with free software for scaling, alarms, and messaging.
Includes two independent outputs for digital or analogue signals. Allows remote monitoring via Trumeter Cloud with IoT Gateway integration. Robust build with IP65 protection and wide operational temperature range. Complies with CE, UL, and RoHS standards ensuring safety and quality.
Explore more industrial and automation control measuring instruments at EnvMart to suit your process control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can measure frequency, voltage, and MPS with high accuracy.
The cutout dimensions are 68 mm x 68 mm.
This model operates efficiently within a temperature range of -10°C to 60°C.
It features a clear LCD with 4 digits and a 40-segment bar graph, enhanced by a dynamic colour-changing backlight.
It includes two independent outputs that can be configured as either digital (open collector) or analogue (4-20 mA).
It conforms to CE, UL, and RoHS standards, ensuring it meets safety and quality requirements.
Yes, it allows remote monitoring via the Trumeter Cloud when integrated with the APM IoT Gateway.
It is suitable for use in electrical, automation, manufacturing, laboratory, HVAC, and other industrial environments.
The depth of the APM-M2-APO is 53 mm.
It is highly configurable with free software for scaling, alarms, and messaging.
The large anti-glare LCD display and dynamic colour-changing backlight enhance readability in various lighting conditions.
The country of origin for this meter is Malaysia.
