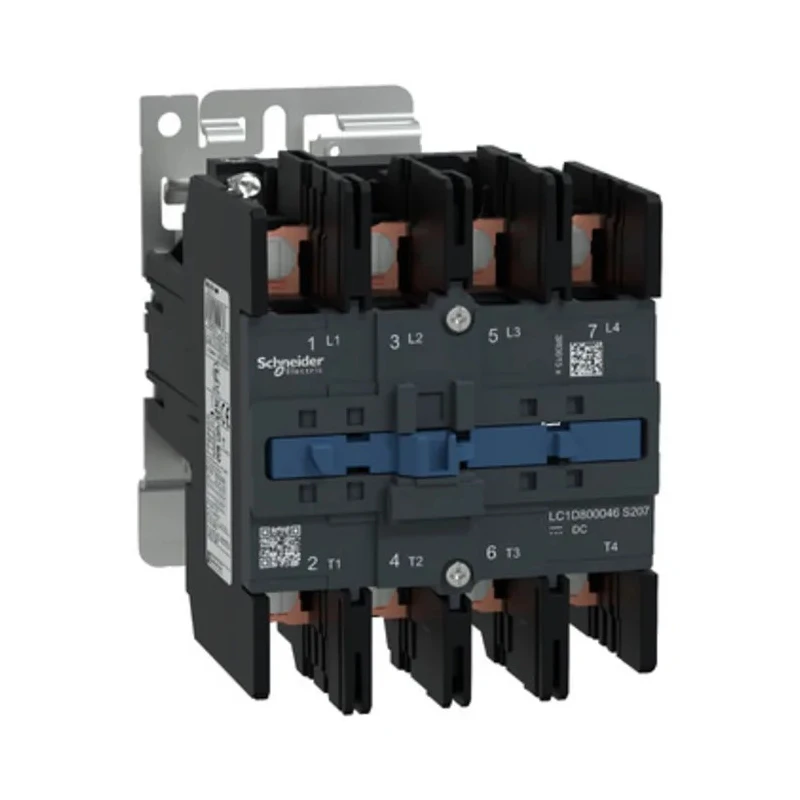

Schneider Electric TeSyS D Reversing Contactor, 72V dc Coil Voltage, 4-Pole, 125 A Contact Current, 1kV LC1D800046SWS207

Schneider Electric LC1D800046SWS207 reversing contactor is a high reliability device designed for motor control and reversing applications. This robust contactor integrates a 72V dc coil and is tailored to meet demanding industrial automation needs. It carries an AC-1 full load current rating of 125 A and supports contact voltages up to 1kV, making it suitable for a wide range of electromechanical operations.

The product features a 4-pole design with a normal state configuration of 4 NO contacts, providing versatility for motor starters and control circuits. It mounts easily on DIN rails, facilitating standardized and secure installation in control panels or switchboards.

Its lug ring terminal type ensures stable electrical connections, while the device operates efficiently within a temperature range of -40°C to 60°C. The device dimensions of 181mm depth, 96mm width, and 127mm length afford a compact footprint suitable for optimized panel layouts. This contactor is designed for easy disassembly, supporting Schneider Electric’s Better World initiative for sustainability.

Schneider Electric adheres to stringent safety and performance standards including EN, IEC, and UL, ensuring dependable operation in demanding industrial environments. The TeSys D series reputation guarantees a prolonged mechanical and electrical lifespan, reducing maintenance and replacement costs.

This reversing contactor features a 4-pole configuration for robust motor control applications. Equipped with a 72V dc coil suitable for control circuits requiring precise voltage control. The device supports a contact voltage rating of up to 1kV ensuring high voltage switching capabilities.

Mountable on DIN Rail for efficient and standardized installation in electrical panels. Designed for harsh environments with operating temperatures from -40°C to 60°C. Lug ring terminals provide secure and reliable electrical connections.

Complies with EN, IEC, and UL standards for safety and performance assurance. Includes a normal state configuration of 4 NO contacts for controlled switching. Depth, width, and length dimensions are 181mm, 96mm, and 127mm respectively for compact panel integration.

Manufactured under the TeSys D series known for long mechanical and electrical life.

This product is ideal for industrial, automation, manufacturing, and motor control applications requiring precise switching and high reliability. Explore more Schneider Electric Reversing Contactors and control devices in this category at EnvMart for diverse electrical and automation solutions.
