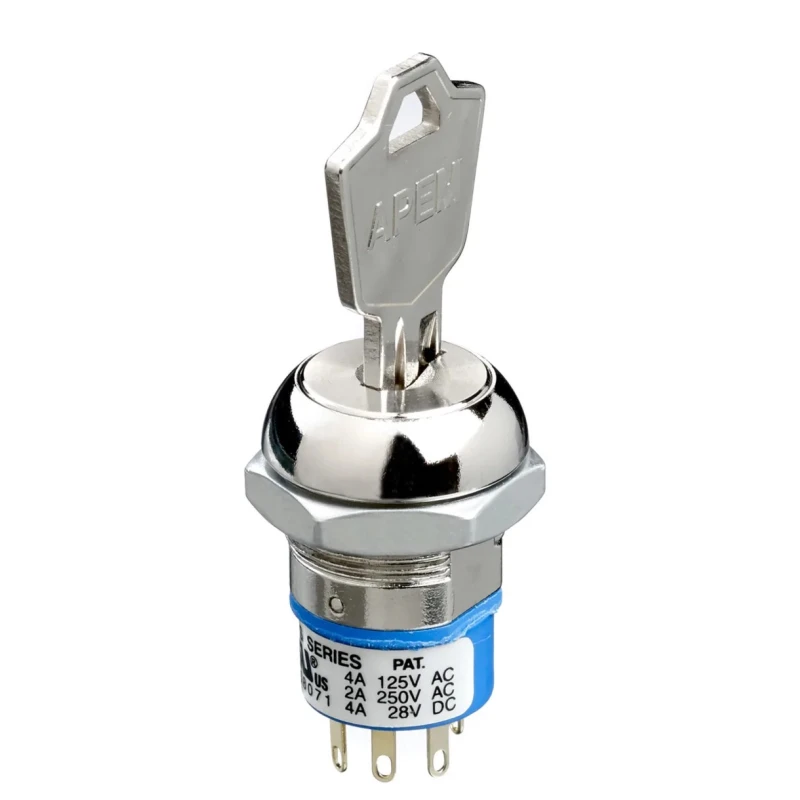

APEM Keylock Switch DP3T, 4A, 3-Way Common-Key, Latching Operation, Glass Filled Polyester Housing DP3T

Free Delivery in India | Lowest Global Shipping Charges

APEM Keylock Switch DP3T, 4A, 3-Way Common-Key, Latching Operation, Glass Filled Polyester Housing DP3T

Name: APEM Keylock Switch DP3T, 4A, 3-Way Common-Key, Latching Operation, Glass Filled Polyester Housing DP3T
Brand: APEM
SKU: 279105
Price: 1475.82 INR
Availability: InStock



Category Key Switch Brand APEM Condition New

Specifications

Country of Origin	China
Brand	APEM
Model	DP3T
Housing Material	Glass Filled Polyester
Contact Material	Copper Alloy
Series	LK
Maximum Operating Temperature	85°C
Contact Configuration	DP3T
Number of Positions	3
Minimum Operating Temperature	-30°C
Terminal type	Solder
Standards/Approvals	cULUs File E83438
Switch Operation	Latching
Contact DC Voltage	28V dc
Switch Contact Current	4A
Mechanical Life	6000Cycles
Contact AC Voltage	125V ac
Key Type	Common
Bezel Shape	Round
Key Index Angle	45°

Key Features

The keylock switch has a round bezel made of glass filled polyester housing.
It operates a 3-way configuration with common key type for secure control.
Designed for solder terminal type connections.
Supports contact voltage of 28V DC and 125V AC for versatile applications.
Includes a mechanical life rating of 6000 cycles ensuring durability.
Operates reliably between temperatures of -30°C to 85°C.
Key index angle is 45 degrees for precise switching.
Complies with UL standards with cULUs File E83438 approval.

Product Description

APEM DP3T Keylock Switch is a robust electrical component designed for industrial and automation applications requiring secure and precise switching control. It features a double pole triple throw (DP3T) contact configuration with a common key mechanism, enabling a 3-way switching operation.

The switch is housed in durable glass filled polyester with a round bezel shape, making it suitable for use in demanding environments. It supports a switch contact current of 4A, with AC contact voltage rated at 125V and DC contact voltage at 28V, providing versatile electrical capability.

The latching switch operation and 45° key index angle provide secure and accurate positioning during operation. The switch terminals are designed for solder-type connections, facilitating ease of installation in electrical circuits.

Built to endure, the switch offers a mechanical life of 6000 cycles and can operate reliably within a temperature range of -30°C to 85°C, making it suitable for harsh industrial or commercial environments.

The contact material is made from copper alloy, ensuring excellent electrical conductivity and longevity. The product also holds cULUs File E83438 approval, reflecting its compliance with recognized safety standards.

The keylock switch has a round bezel made of glass filled polyester housing. It operates a 3-way configuration with common key type for secure control. Designed for solder terminal type connections. Supports contact voltage of 28V DC and 125V AC for versatile applications.

Includes a mechanical life rating of 6000 cycles ensuring durability. Operates reliably between -30°C and 85°C temperature limits. Key index angle is 45 degrees for precise switching. Complies with UL standards with cULUs File E83438 approval.

Constructed with copper alloy contact material for conductivity.

This keylock switch is ideal for electrical, automation, and machinery control applications in industrial, manufacturing, and commercial sectors. Its reliable design and approvals make it suitable for high-performance installations requiring secure key control switches.
