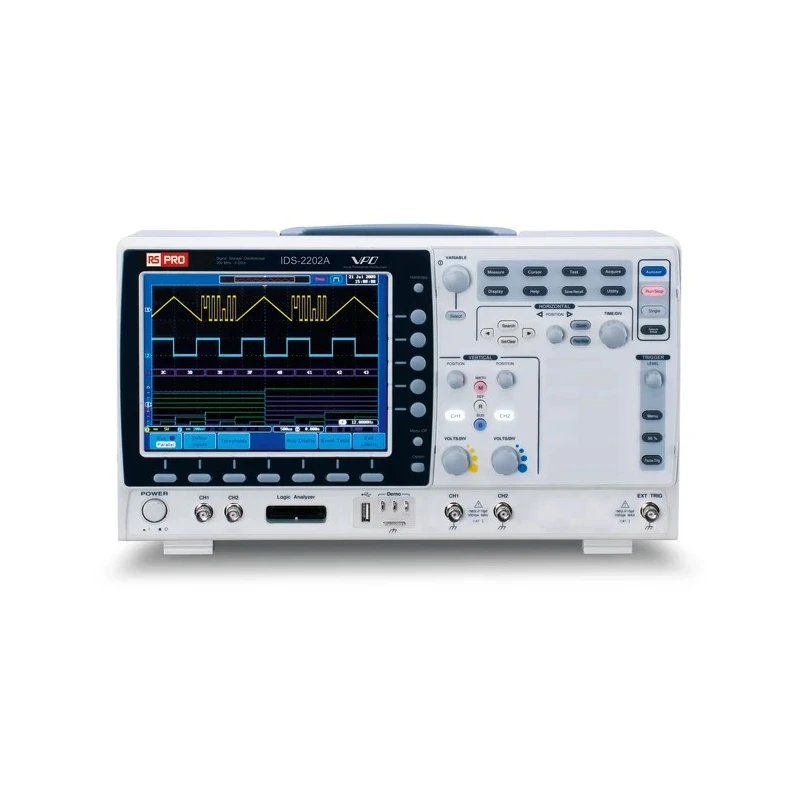

RS PRO 200 MHz Bench Digital Storage Oscilloscope 2 Channels 8 Inch Colour TFT LCD IDS2202A 124-1953

RS PRO 124-1953 Bench Digital Storage Oscilloscope is a precision instrument designed for industrial, laboratory, and electronic engineering applications. With a wide 200 MHz bandwidth and 2 input channels, it captures detailed electrical signal waveforms, suitable for diagnostic and system development tasks.

This oscilloscope incorporates advanced Visual Persistence Oscilloscope technology, enabling enhanced visualization of waveforms by using grayscale and colour differentiation to highlight signal frequencies and occurrence rates. Its 8 inch colour TFT LCD screen provides a high resolution display for accurate waveform interpretation.

Equipped with a memory depth of 1 Mpts and a minimum time base of 1 ns/div, this device supports comprehensive waveform capture with a maximum time base up to 100 s/div. The 1.75 ns rise time and 8-bit vertical resolution ensure precise signal fidelity analysis.

The instrument supports a variety of interface types including CAN, IIC, LIN, RS232, SPI, UART, and USB, allowing seamless integration into diverse test environments. It operates on mains power with both EU and UK plug options and carries safety certification for CAT I and CAT II applications rated at 300V.

Compact and ergonomically designed, the oscilloscope measures 380 mm in length, 220 mm width, and 145 mm height, weighing 4.2 kg, making it suitable for bench-top use. Its fast waveform refresh rate of 120000 per second enables the detection of inrush currents and transient glitches with high detail.

This RS PRO oscilloscope is ideal for electronics troubleshooting, circuit validation, education, and research in industrial, manufacturing, HVAC, and electrical engineering contexts.

Features 200 MHz bandwidth ideal for detailed signal analysis. Equipped with 2 analog input channels for versatile measurements. Utilizes Visual Persistence Oscilloscope technology for waveform clarity. Offers 1 Mpts memory depth and 1 ns minimum time base for high resolution.

Supports multiple interfaces including CAN, IIC, LIN, RS232, SPI, UART, and USB. Includes EU and UK plug types powered by mains supply. Integrated waveform refresh rate of 120000 per second for dynamic signal capture. Safety rated CAT I and CAT II at 300V for reliable laboratory use.

Lightweight design with dimensions 380 x 220 x 145 mm and weight approximately 4.2 kg. Explore a wide range of measuring instruments and Oscilloscopes at EnvMart for all your precision test and measurement requirements.
