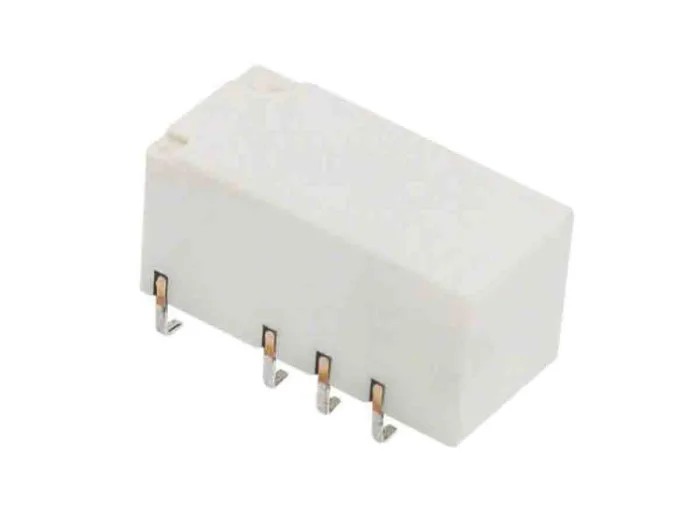

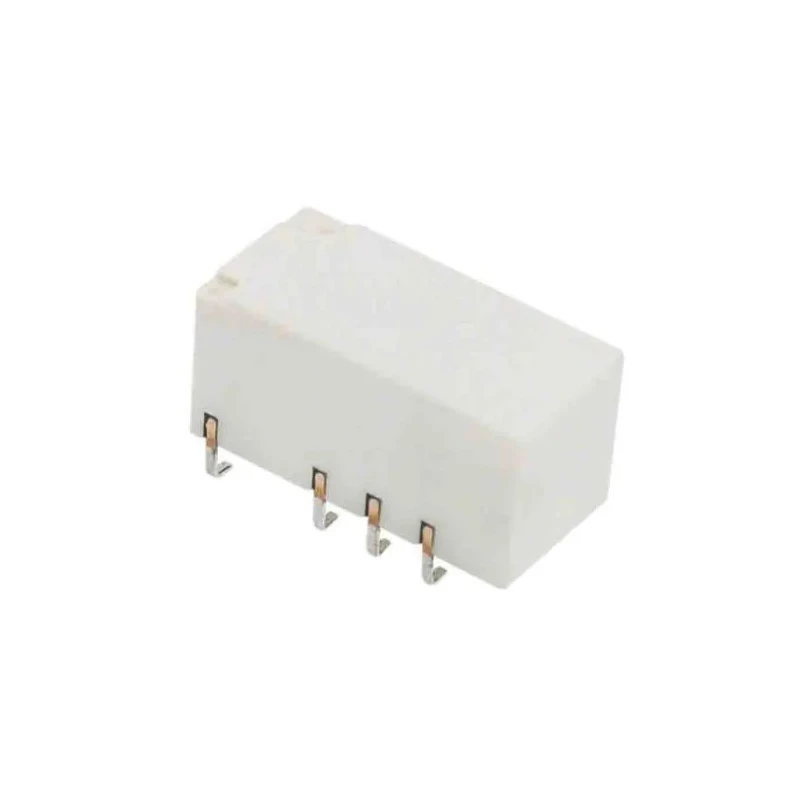

Omron Surface Signal Relay 24V DC Coil 1A DPDT Surface Mount G5Q-1A4 DC24 (TY)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 5.4mm |
| Length | 10mm |
| Model | G5Q-1A4 DC24 (TY) |
| Width | 6.5mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | HFD3 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 5200Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
Key Features
- Compact surface mount relay ideal for high-density mounting.
- Operates within a temperature range of -40°C to 70°C.
- Silver alloy contacts ensure reliable signal switching.
- Low contact resistance of 100mΩ for efficient operation.
- Coil power consumption is low at 100mW for energy efficiency.
- Supports switching AC voltage up to 125V AC and DC voltage up to 60V DC.
Product Description
Omron G5Q-1A4 DC24 (TY) is a high-quality surface signal relay designed for electronic applications requiring compact size and reliable signal control. The relay features a 24V DC coil and supports a DPDT contact configuration, allowing simultaneous control of two separate circuits.
This relay is designed for surface mount applications, offering a small footprint of 5.4mm height, 6.5mm width, and 10mm length. It is ideal for high-density PCB mounting in industrial, laboratory, automation, and consumer electronic contexts.
Operating over a wide temperature range from -40°C to 70°C, the relay ensures dependable performance under harsh environmental conditions. Silver alloy contacts provide excellent conductivity and durability, while the contact resistance is maintained at a low 100mΩ to minimize signal loss.
With a coil resistance of 5200Ω and a coil power consumption of just 100mW, this relay is energy efficient. It supports switching currents up to 1A and can handle AC voltages up to 125V and DC voltages up to 60V, suitable for a variety of signal switching tasks.
The relay meets RoHS standards for environmental compliance and is manufactured in China, ensuring consistent quality and global supply availability. Compact surface mount relay ideal for high-density mounting. Operates within a temperature range of -40°C to 70°C.
Silver alloy contacts ensure reliable signal switching. Low contact resistance of 100mΩ for efficient operation. Coil power consumption is low at 100mW for energy efficiency. Supports switching AC voltage up to 125V AC and DC voltage up to 60V DC.
Dimensions are 5.4mm height, 6.5mm width, and 10mm length for compact PCB integration.
This Omron surface Signal Relay is well suited for applications in industrial automation, electronic control equipment, laboratory instruments, and telecommunications where reliable, compact relay solutions are required. Explore more relay options in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It can handle a maximum switching current of 1A.
This relay has dimensions of 5.4mm in height, 6.5mm in width, and 10mm in length.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
It operates within a temperature range of -40°C to 70°C.
This model is designed for surface mounting.
The contacts are made of silver alloy, which ensures reliable signal switching.
The contact resistance is maintained at a low value of 100mΩ.
It supports switching AC voltage up to 125V and DC voltage up to 60V.
The coil power consumption is low at 100mW, contributing to energy efficiency.
The relay meets RoHS standards for environmental compliance.
It is manufactured in China.
