Omron PCB Power Relay SPDT 5V DC Coil 16A Switching Current G5RL-1-E-HR DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1-E-HR DC5 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Low Profile | 15.7mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminal type.
- Operates reliably between -40°C and 85°C.
- Switching voltages include 24V AC and 24V DC capabilities.
- Constructed with a silver alloy contact material ensuring low contact resistance.
- Compact low-profile design with dimensions 29mm length, 15.7mm height, and 12.7mm width.
- Coil resistance is 62.5 ohms with 400mW coil power consumption.
- Compliance with RoHS standards.
- Suitable for automation, electrical, and industrial control applications.
Product Description
Omron G5RL-1-E-HR DC5 PCB Power Relay is a high-quality power relay designed for precise switching tasks in industrial, automation, and electrical systems. It features a 5V DC coil voltage and SPDT (Single Pole Double Throw) contact configuration, allowing versatile control in PCB-mounted applications.
The relay supports a switching current up to 16A with switching voltages of 24V AC and 24V DC, making it suitable for low-voltage power switching. The unit operates reliably within a temperature range from -40°C to 85°C, ensuring performance under varied environmental conditions.

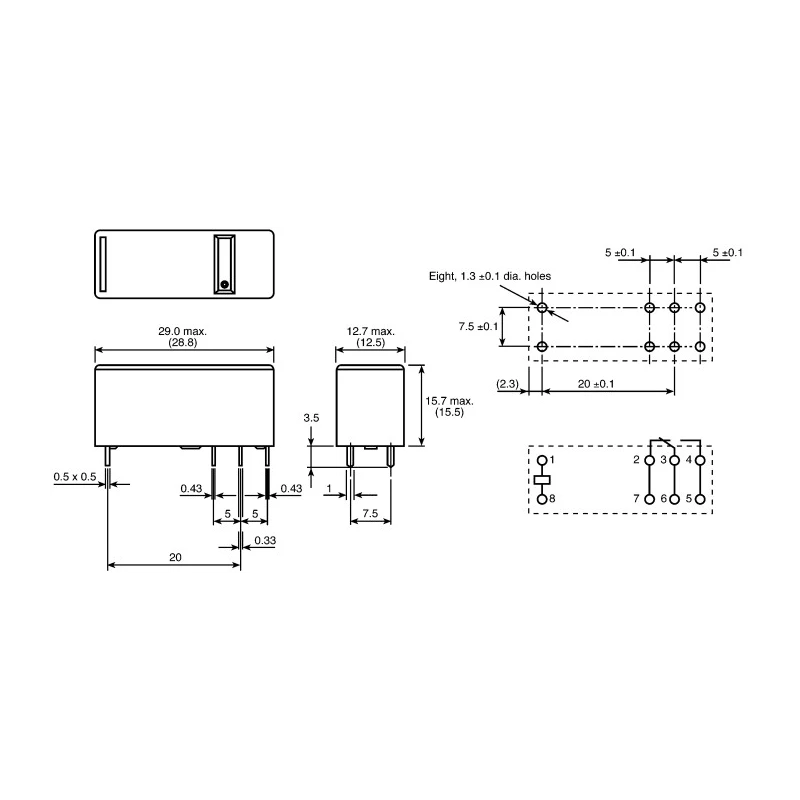

Its compact dimensions (29 mm length, 15.7 mm height, 12.7 mm width) and low-profile design make it ideal for use in space-constrained electronic devices. The relay features silver alloy contacts that provide high conductivity and low contact resistance of 100 mΩ for efficient switching. Coil resistance is 62.5 Ω with a coil power rating of 400 mW, optimizing energy consumption.
Additional characteristics include the flux-proof design, 8 mm creepage and clearance between coil and contacts for electrical safety, and RoHS compliance for environmental standards. These attributes ensure the relay's durability and suitability for demanding industrial control, automation, and electrical projects.
Designed for PCB mounting with solder terminals for easy integration. Supports 16A switching current with SPDT configuration for versatile applications. Robust performance from -40°C to 85°C operating temperature range. Silver alloy contacts minimize resistance and improve electrical performance.
Compact form factor with a low profile of 15.7 mm height. Energy-efficient coil with 62.5 Ω resistance and 400 mW power consumption. Compliant with RoHS environmental standards. Ideal for automation, manufacturing, HVAC, and electrical control systems.
This Omron power relay is engineered to enhance reliability and efficiency in electronic switching, contributing to improved production and system performance. Explore more Power Relays and components for industrial automation and electrical applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 16A, making it suitable for low-voltage power switching applications.
The relay has compact dimensions of 29 mm in length, 15.7 mm in height, and 12.7 mm in width, allowing for easy integration into space-constrained designs.
It operates with a coil voltage of 5V DC and has a coil power consumption of 400 mW, optimizing energy usage during operation.
This unit operates reliably within a temperature range of -40°C to 85°C, ensuring functionality in varied environmental conditions.
The relay features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile control in various applications.
It is constructed with silver alloy contacts, which provide low contact resistance of 100 mΩ for efficient switching performance.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
The relay supports switching voltages of 24V AC and 24V DC, making it suitable for various low-voltage applications.
This model is designed for PCB mounting with solder terminals, facilitating easy integration into electronic circuits.
The coil resistance for this relay is 62.5 Ω, which contributes to its energy-efficient operation.
It features an 8 mm creepage and clearance between the coil and contacts, enhancing electrical safety during operation.
This relay is suitable for automation, electrical, and industrial control applications, providing reliable switching performance in these environments.
