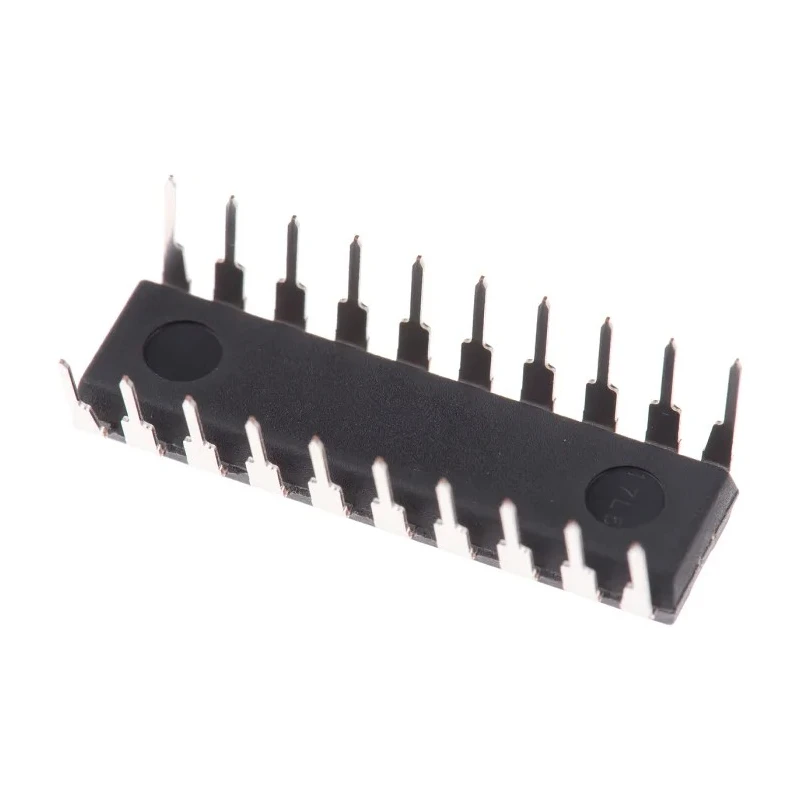

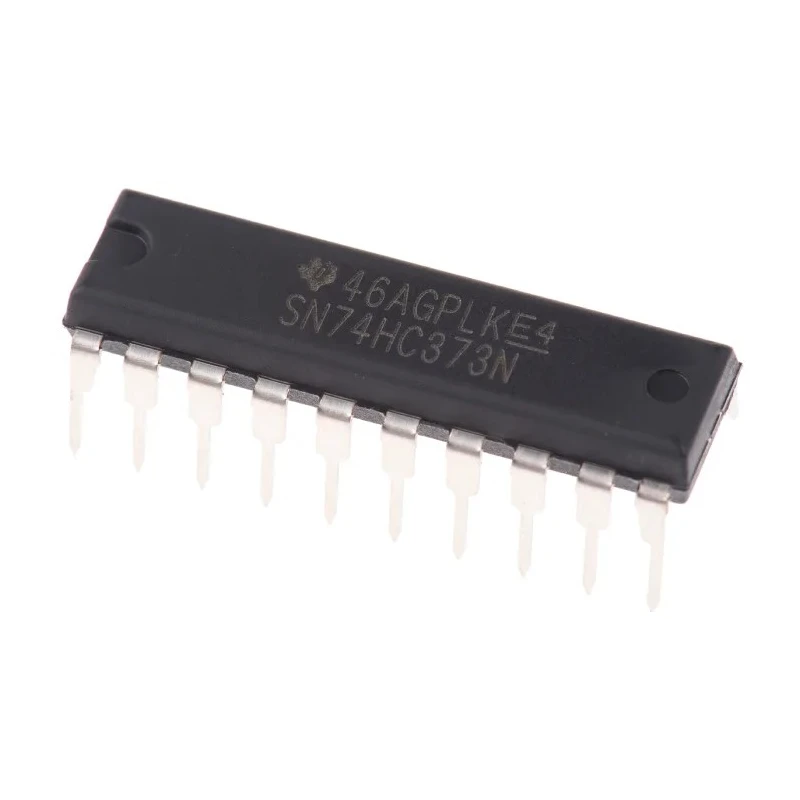

Texas Instruments 8-Bit Transparent 3-State Latch, D Type, 20-Pin PDIP SN74HC373N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 24.33mm |
| Model | SN74HC373N |
| Mount Type | Through Hole |
| Compatibility | Input CMOS, Output CMOS |
| Output type | 3 State |
| Series | 74HC |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Operating Voltage | 2 to 6 V |
| Pin Count | 20 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | D Type |
| Minimum Supply Voltage | 2V |
| Latch Mode | Transparent |
| Number of Bits | 8 |
Key Features
- The device operates within a voltage range of 2 to 6 V, enhancing versatility.
- It features D-type transparent latch mode with non-inverting polarity for reliable data storage.
- The output type is 3-state, suitable for bus interfacing.
- Designed for through-hole mounting with a 20-pin PDIP package format.
- Supports an operating temperature range from -40°C to 85°C for robust industrial use.
- Belongs to the 74HC logic family with CMOS compatibility for input and output.
- Measures 24.33 mm in length and 4.57 mm in height for mounting convenience.
- Does not carry automotive or specific standards approvals.
Product Description
Texas Instruments SN74HC373N is an 8-bit transparent latch IC featuring 3-state outputs, housed in a 20-pin PDIP package designed for through-hole mounting. This device operates at voltages ranging from 2 V to 6 V and supports an operating temperature range between -40°C and 85°C, making it suitable for demanding industrial, commercial, and laboratory electronics applications.
As part of the 74HC family of high-speed CMOS logic integrated circuits, the SN74HC373N ensures low power consumption while maintaining performance levels comparable to LSTTL families. The latch mode is transparent with non-inverting polarity and D-type logic function facilitating precise and reliable data latching operations. The 3-state output mode is ideal for bus-oriented systems requiring output enable control.
Its compatibility with CMOS input and output logic levels allows seamless integration into modern digital circuits. The device's 20-pin PDIP package measures 24.33 mm in length and 4.57 mm in height, supporting easy mounting and PCB design.
Typical applications include industrial control systems, data processing circuits, and digital memory buffers. Although it carries no specific automotive certifications or additional standards approvals, this IC is widely used in electronic component designs requiring dependable logic latching functionality.
The device operates within a voltage range of 2 to 6 V, enhancing versatility. It features D-type transparent latch mode with non-inverting polarity for reliable data storage. The output type is 3-state, suitable for bus interfacing.
Designed for through-hole mounting with a 20-pin PDIP package format. Supports an operating temperature range from -40°C to 85°C for robust industrial use. Belongs to the 74HC logic family with CMOS compatibility for input and output.
Measures 24.33 mm in length and 4.57 mm in height for mounting convenience. Does not carry automotive or specific standards approvals. Discover more semiconductor and logic IC solutions at EnvMart's Electronics & Electricals category.
Explore more products in our Latch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN74HC373N operates within a voltage range of 2 to 6 V.
It is housed in a 20-pin PDIP package designed for through-hole mounting.
This model measures 24.33 mm in length and 4.57 mm in height.
The maximum operating temperature for the SN74HC373N is 85°C.
It features a 3-state output suitable for bus interfacing.
The latch mode is transparent with non-inverting polarity.
It belongs to the 74HC logic family, ensuring CMOS compatibility for input and output.
This model supports 8 bits for data latching operations.
The minimum operating temperature is -40°C.
Yes, it is suitable for demanding industrial, commercial, and laboratory electronics applications.
It performs a D-type logic function, facilitating precise data latching operations.
It is compatible with CMOS input and output logic levels, allowing seamless integration into modern digital circuits.
