Eaton GHG4188 Series Pull to Release Emergency Stop Push Button Panel Mount 30mm Cutout SPDT IP66 GHG4188

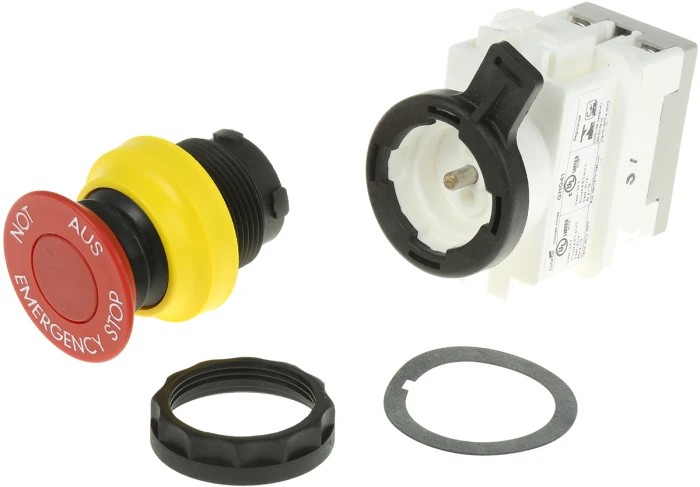

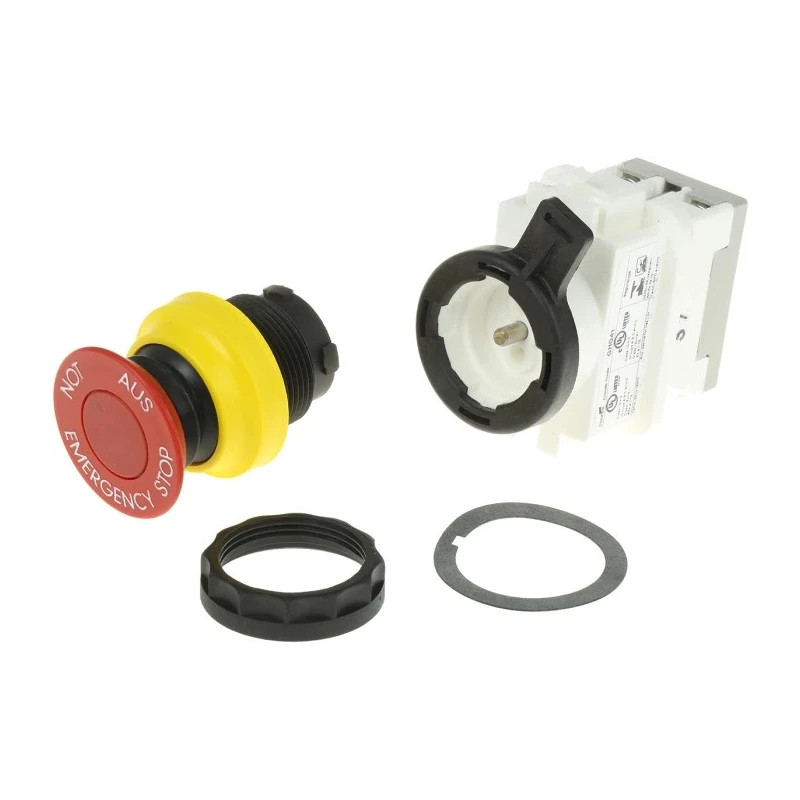

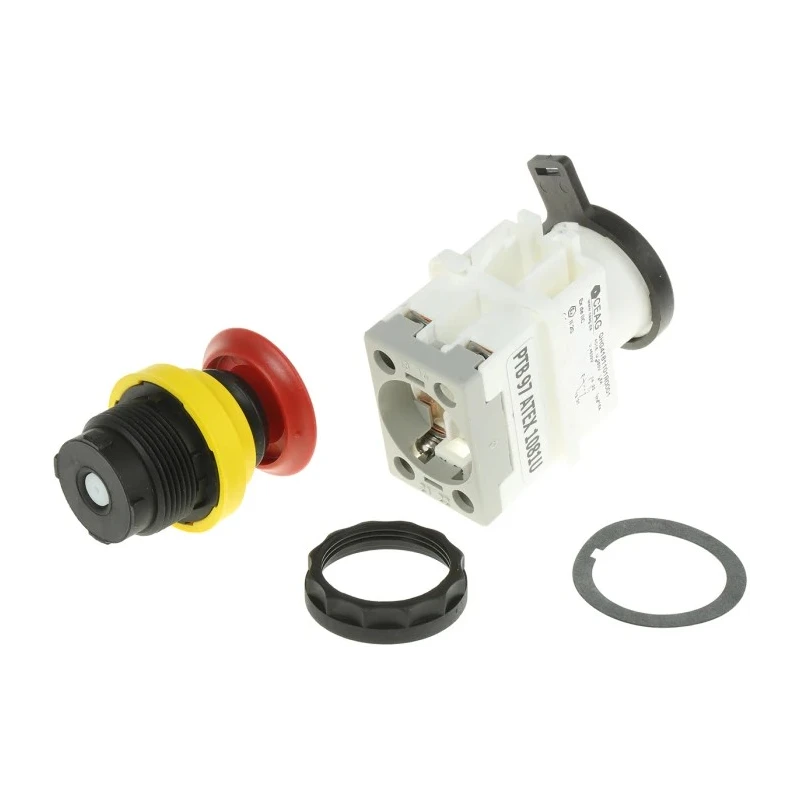

Eaton GHG4188 series pull to release emergency stop push button is a high-quality panel mounted safety switch designed for use in industrial, electrical, automation, and hazardous environments. With a 30 mm cutout and SPDT contact configuration, it ensures reliable interruption of power or signal circuits in emergency situations.

This emergency stop push button is manufactured from robust polyamide material, providing strong resistance to wear and environmental factors, while the mushroom-style red head allows for quick identification and easy activation under pressure.

The unit's IP66 rating certifies that it is dust-tight and protected against powerful jets of water, making it suitable for indoor and outdoor industrial use, including hazardous areas where flammable gases or vapours may be present.

Electrical ratings of 16A at 500V AC and 220V DC allow its integration into a wide range of control systems. The operating temperature range from -20°C to +40°C means it performs reliably in both cold and warm climates.

The push button features a pull to release actuation mechanism with 1 normally open and 1 normally closed contact blocks included, enabling effective circuit control. It is designed for easy panel mounting with a maximum panel thickness of 5 mm and requires a mounting hole diameter of 30.5 mm.

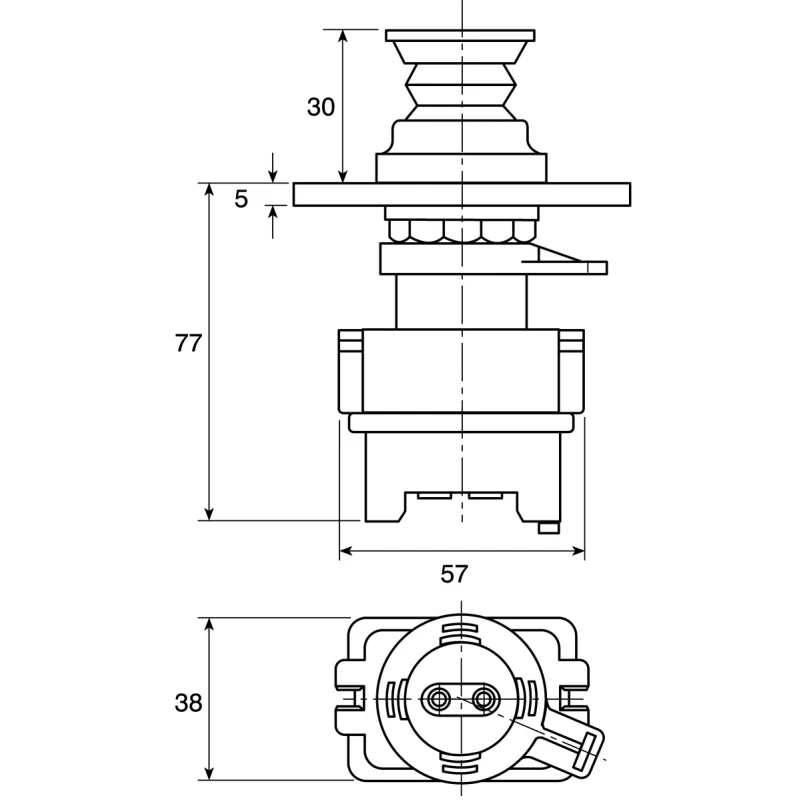

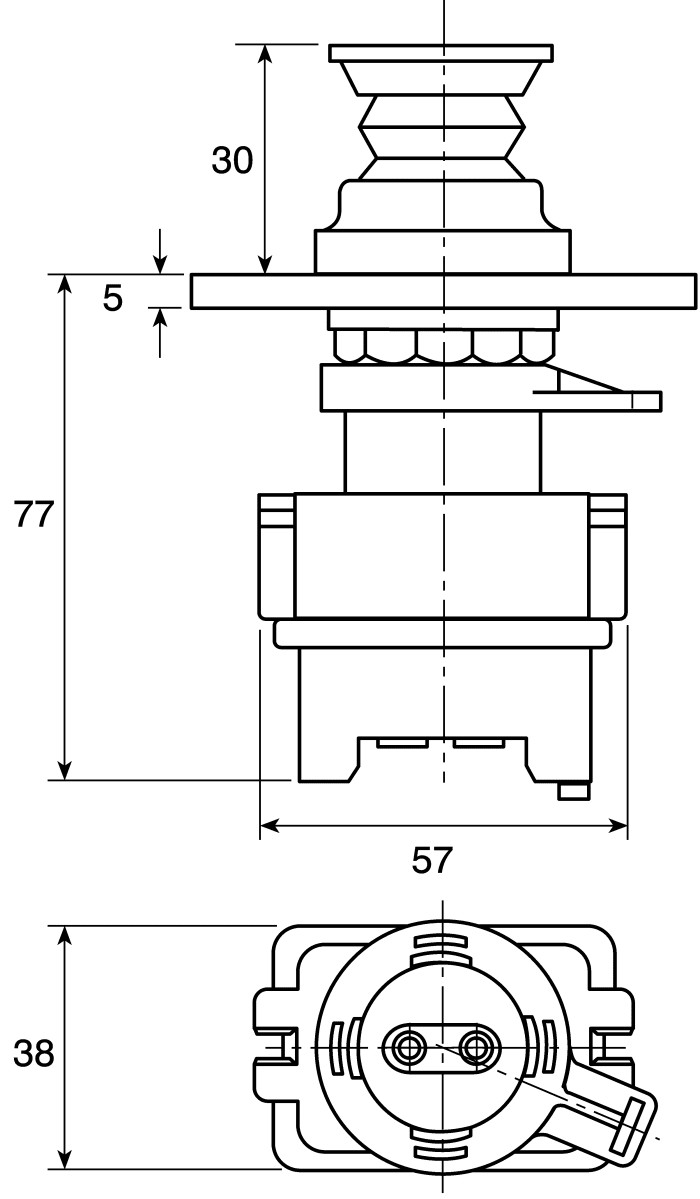

Dimensions behind the panel measure 57 x 38 x 77 mm, with a 30 mm depth from the front of the panel, allowing for compact and secure installation. Features a highly visible red mushroom head for quick emergency activation.

Constructed with durable polyamide materials ensuring longevity in harsh environments. Designed for panel mounting with a 30.5mm diameter hole and suitable for panels up to 5mm thick. Certified IP66 protection makes it dust-tight and protected against strong water jets.

Rated for 16A contact current at 500V AC and 220V DC for versatile application. Operates effectively in a wide temperature range from -20°C to +40°C. Equipped with 1 normally open and 1 normally closed contact blocks for reliable switching.

Non-illuminated design ideal for well-lit industrial settings requiring fail-safe emergency stop. Compliance with hazardous zone use including flammable gases, vapours, or mist. Dimension behind panel: 57 x 38 x 77mm; front panel depth: 30mm for compact installation.

This Eaton GHG4188 Emergency Stop Push Button is ideal for industries requiring reliable and rapid emergency shutdown capabilities including manufacturing, chemical processing, water treatment, electrical control panels, and other critical industrial applications.
