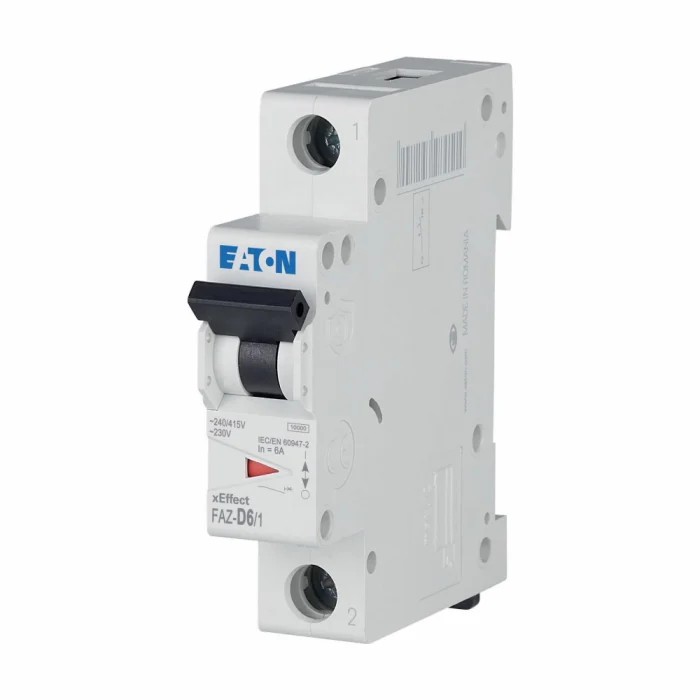

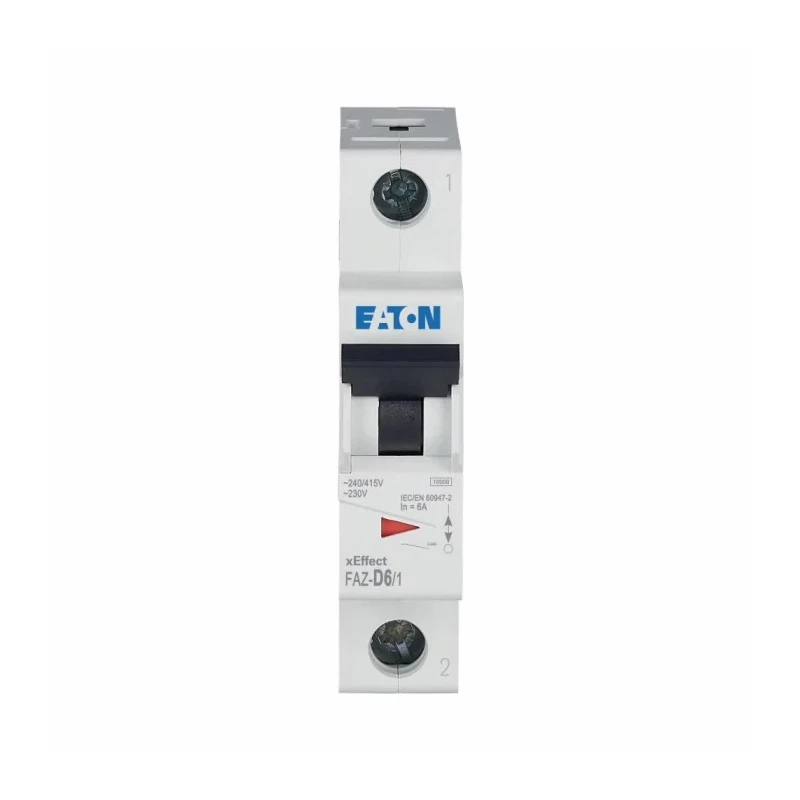

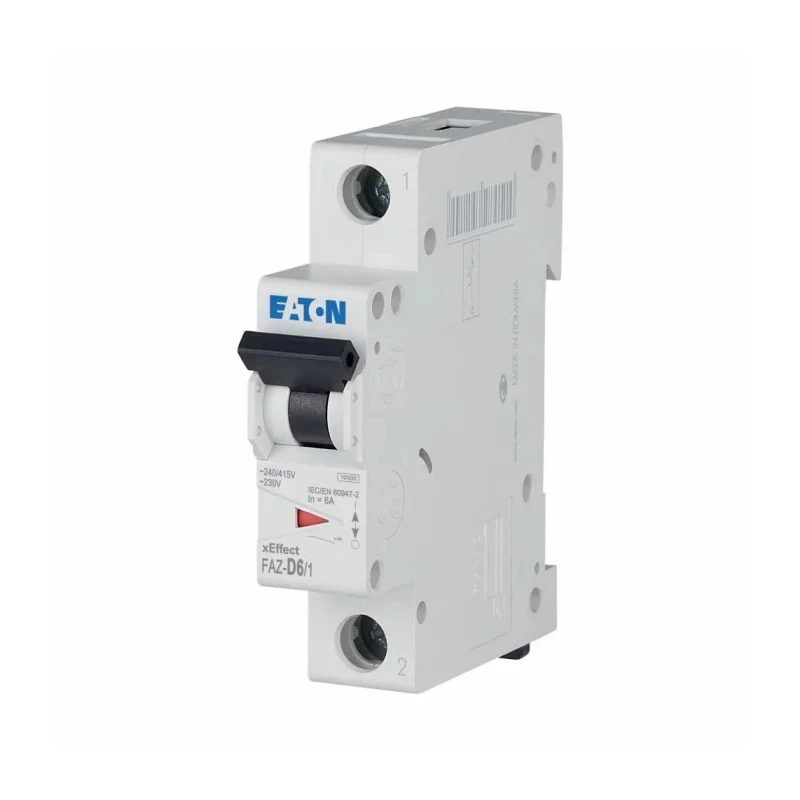

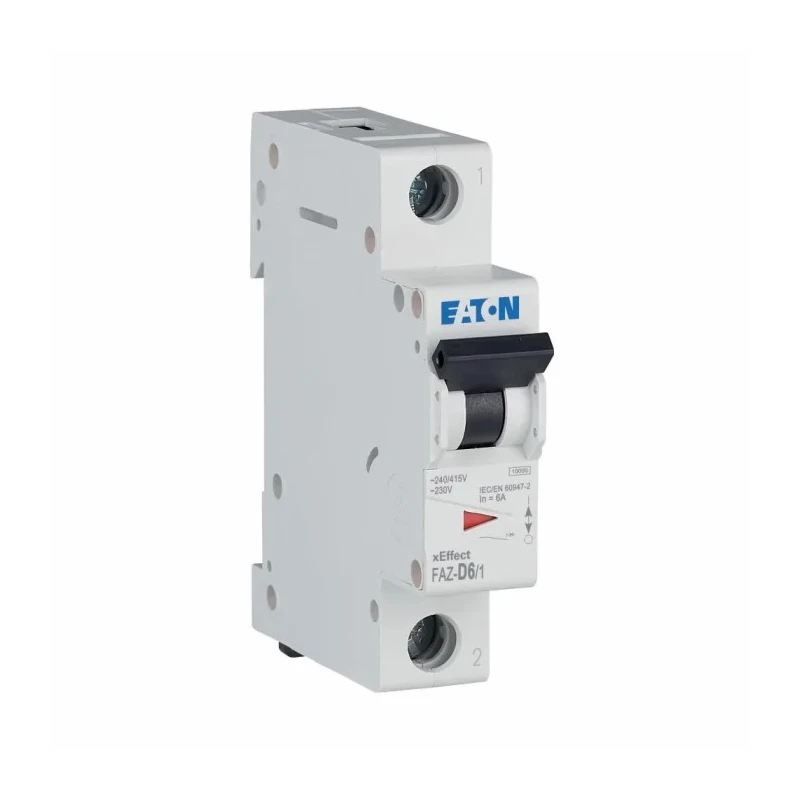

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 6A, Type D, 240V AC, 48V DC, 10 kA Breaking Capacity 278578 FAZ-D6/1

Eaton 278578 FAZ-D6/1 Miniature Circuit Breaker is a high-quality electrical safety device designed for protecting electrical installations in industrial, commercial, and residential settings. This single-pole MCB efficiently interrupts overcurrents and short circuits, minimizing equipment damage and downtime.

The device features a thermal-magnetic tripping mechanism that combines overload and short-circuit protection, especially suitable for circuits with high inductive loads. It operates at a rated current of 6 amps, accommodating moderate electrical demands.

With dual voltage ratings of 240V AC and 48V DC, this MCB supports various power systems and applications, including UPS systems and medical equipment installations. The 10 kA breaking capacity ensures rapid interruption of fault currents to maintain safety.

Designed for easy mounting on standard DIN rails, the breaker has a narrow width of 17.5 mm, enabling space-saving panel configurations. The screw terminal type ensures reliable electrical connections, while the front toggle switch allows for straightforward resetting and clear position indication.

The IP20 rating protects internal components from solid objects larger than 12 mm, suitable for indoor environments with controlled access. This Eaton xEffect FAZ series MCB meets IEC/EN 60898 standards, assuring compliance with international safety and quality norms.

Single-pole design suitable for compact electrical panels. Rated current of 6 amperes to handle medium load requirements. Type D thermal-magnetic tripping for high inductive load applications. Supports 240V AC and 48V DC voltage ratings for versatile use.

High breaking capacity of 10 kA ensures safety during faults. Mounts easily on DIN rails with tool-free installation. Screw terminal type provides secure electrical connections. Front toggle switch with clear ON/OFF indication for easy operation.

IP20 protection rating suitable for protected indoor environments. Compact dimensions: 66mm width, 80mm depth with 17.5mm mounting width.

This Eaton Miniature Circuit Breaker is ideal for industrial automation, electrical distribution panels, HVAC controls, medical machinery, and water treatment systems requiring dependable circuit protection. The robust design ensures long-lasting performance in challenging electrical environments.
