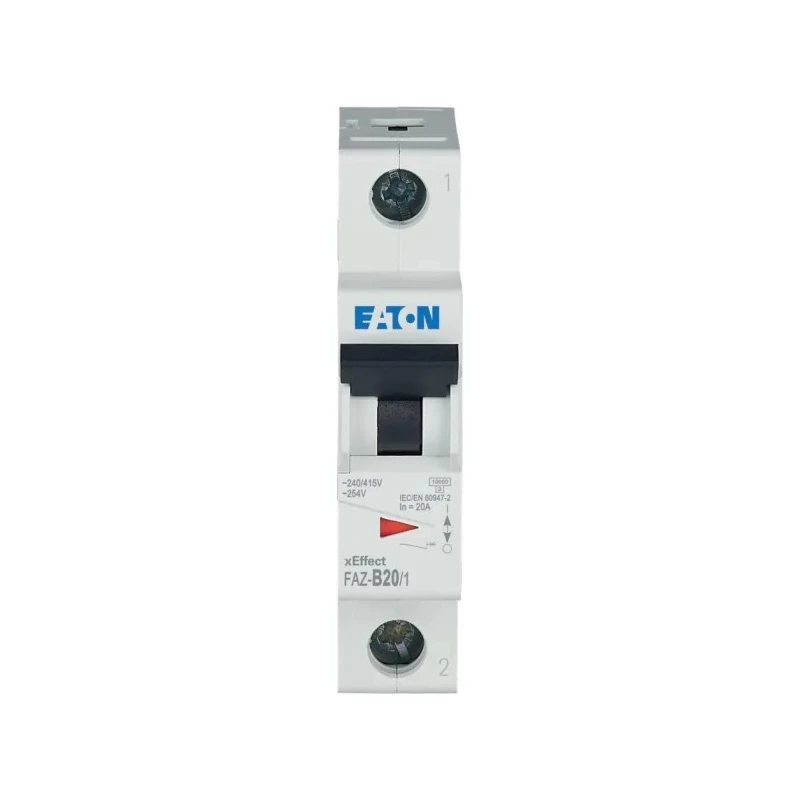

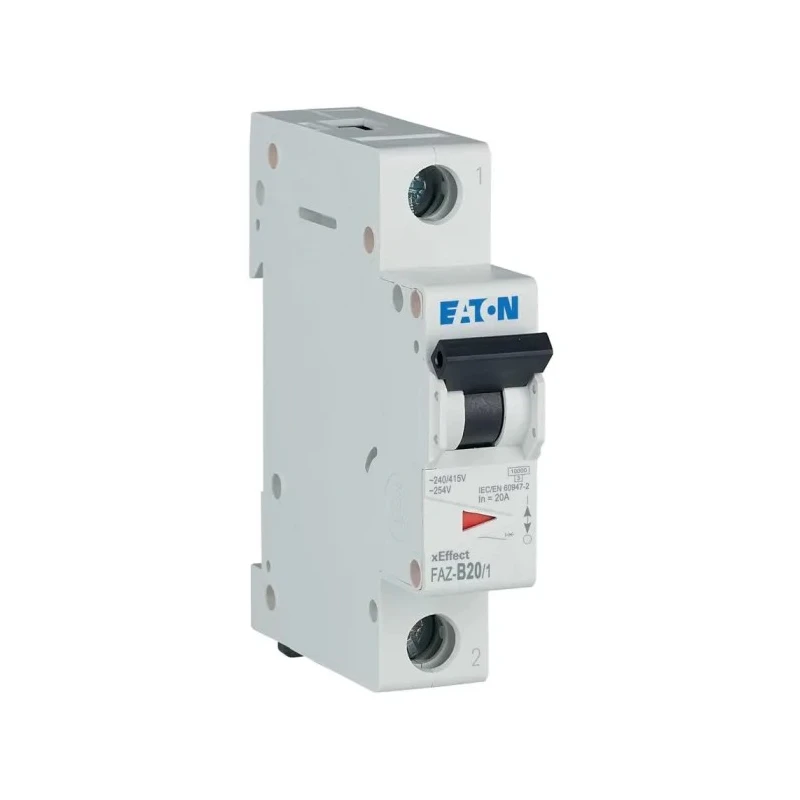

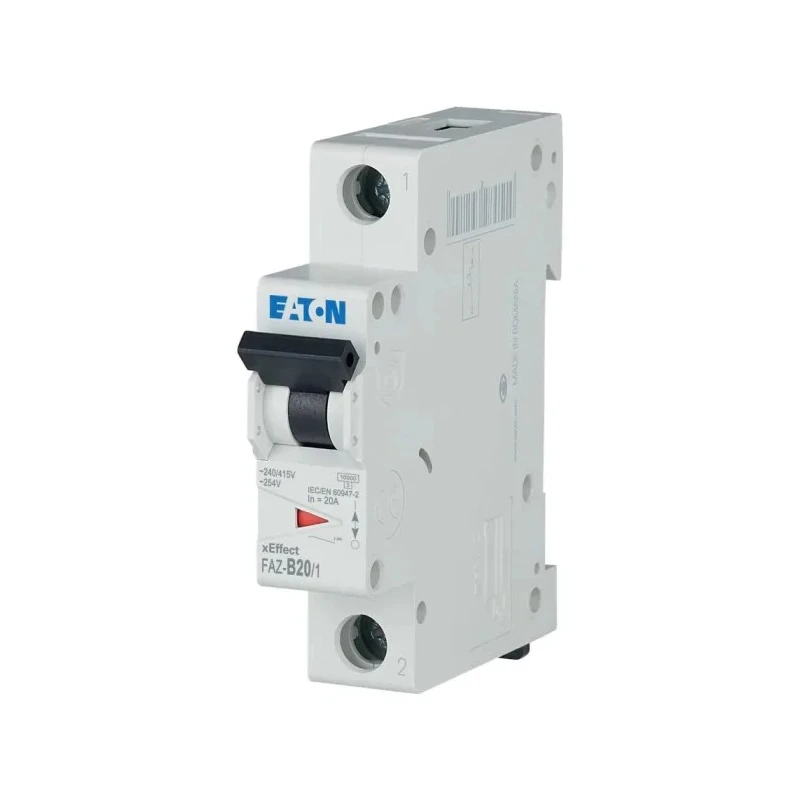

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 20A, Type B Tripping, 240V AC, 48V DC, 10kA Breaking 278536 FAZ-B20/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 278536 FAZ-B20/1 |
| Depth | 80mm |
| IP Rating | IP20 |
| Width | 66mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | FAZ |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- The breaker supports 1 Pole configuration for compact installations.
- Rated for 240V AC and 48V DC operations suitable for diverse applications.
- Thermal-magnetic tripping mechanism ensures rapid and dependable response.
- Breaking capacity of 10 kA for effective fault current interruption.
- Designed for DIN Rail mounting with screw terminals for secure connections.
- Compact size with 66mm width and 80mm depth saves panel space.
- IP20 protection rating offers basic protection against solid objects.
- Toggle switch reset actuator facilitates easy manual operation.
Product Description
Eaton 278536 FAZ-B20/1 Miniature Circuit Breaker is engineered for industrial, commercial, and residential electrical protection systems. This 1-Pole breaker is rated for 20 amps with Type B tripping characteristics, suitable for protecting circuits against overloads and short circuits in lighting and motor applications.
Designed to mount easily on standard DIN rails, it features a compact design with 66mm width and 80mm depth, enabling efficient space usage within electrical panels. The breaker supports 240V AC and 48V DC voltage ratings, broadening its use across various electrical infrastructures.
Its thermal-magnetic tripping mechanism combines thermal overload protection and instantaneous magnetic trip for fast fault clearance, reducing risk to connected equipment. It has a breaking capacity of 10 kA, ensuring robust interruption capability during fault conditions.
The screw terminal design secures wiring connections, and the toggle switch actuator allows straightforward manual reset. IP20 rating provides basic ingress protection suitable for indoor electrical installations.
Applications include residential wiring protection, commercial building circuit safety, motor and transformer protection, and use within automation and control panels. This breaker supports safe electrical distribution and improves system reliability.
The breaker supports 1 Pole configuration for compact installations. Rated for 240V AC and 48V DC operations suitable for diverse applications. Thermal-magnetic tripping mechanism ensures rapid and dependable response. Breaking capacity of 10 kA for effective fault current interruption.
Designed for DIN Rail mounting with screw terminals for secure connections. Compact size with 66mm width and 80mm depth saves panel space. IP20 protection rating offers basic protection against solid objects. Toggle switch reset actuator facilitates easy manual operation.
Explore more Eaton Miniature Circuit Breakers and circuit protection devices on EnvMart for industrial and commercial electrical safety needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton 278536 FAZ-B20/1 Miniature Circuit Breaker has a current rating of 20A.
This circuit breaker is rated for 240V AC and 48V DC operations.
It has a breaking capacity of 10 kA, which allows for effective fault current interruption.
The breaker is designed for DIN Rail mounting, which allows for secure installation in electrical panels.
It has a compact design with a width of 66mm and a depth of 80mm, making it suitable for space-saving installations.
This model utilizes a thermal-magnetic tripping mechanism for rapid response to overloads and short circuits.
The Eaton FAZ-B20/1 features Type B tripping characteristics, which are suitable for various applications including lighting and motors.
It is equipped with a toggle switch reset actuator, allowing for easy manual operation.
The circuit breaker has an IP20 protection rating, offering basic protection against solid objects.
It is suitable for applications including residential wiring protection, commercial circuit safety, and motor protection.
This model features screw terminals for secure wiring connections.
The country of origin for this miniature circuit breaker is India.
