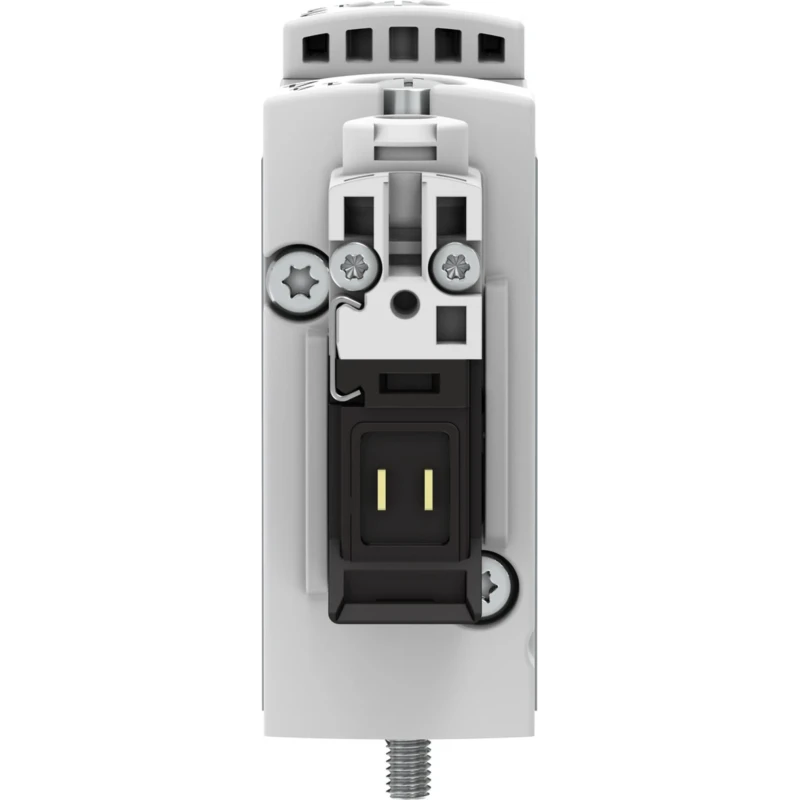

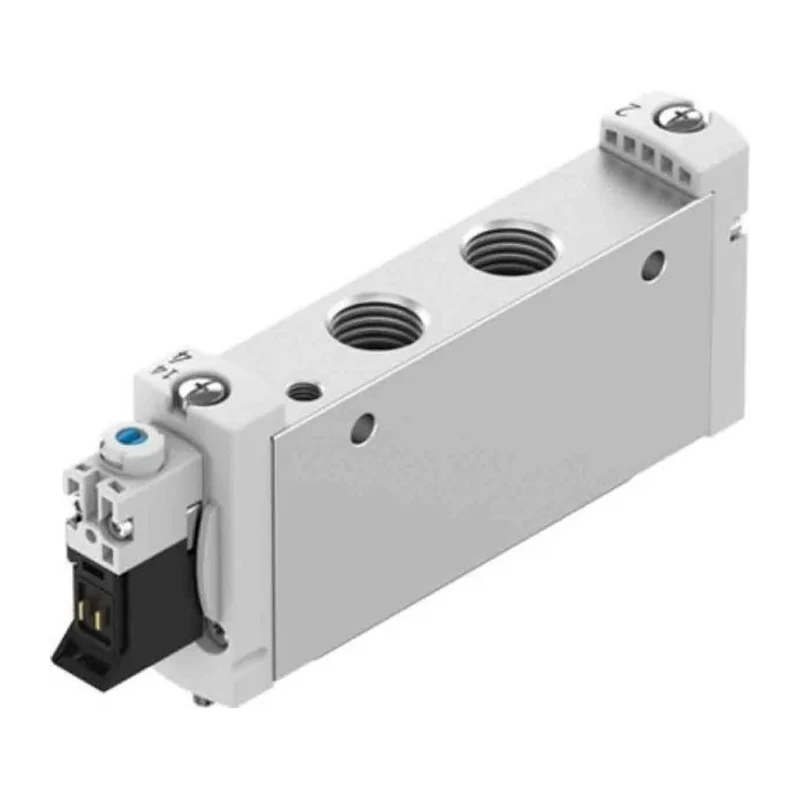

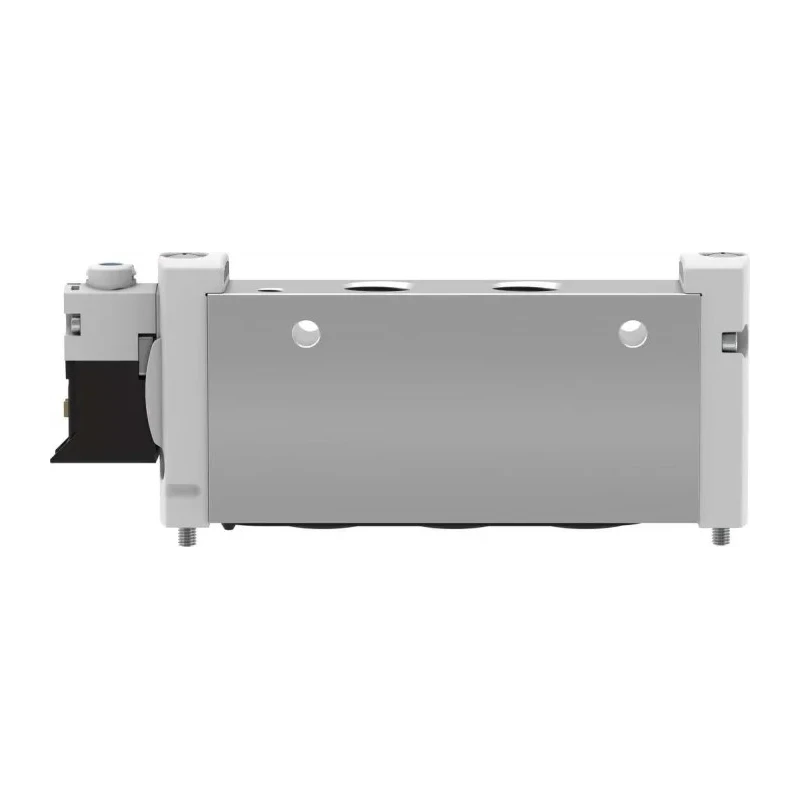

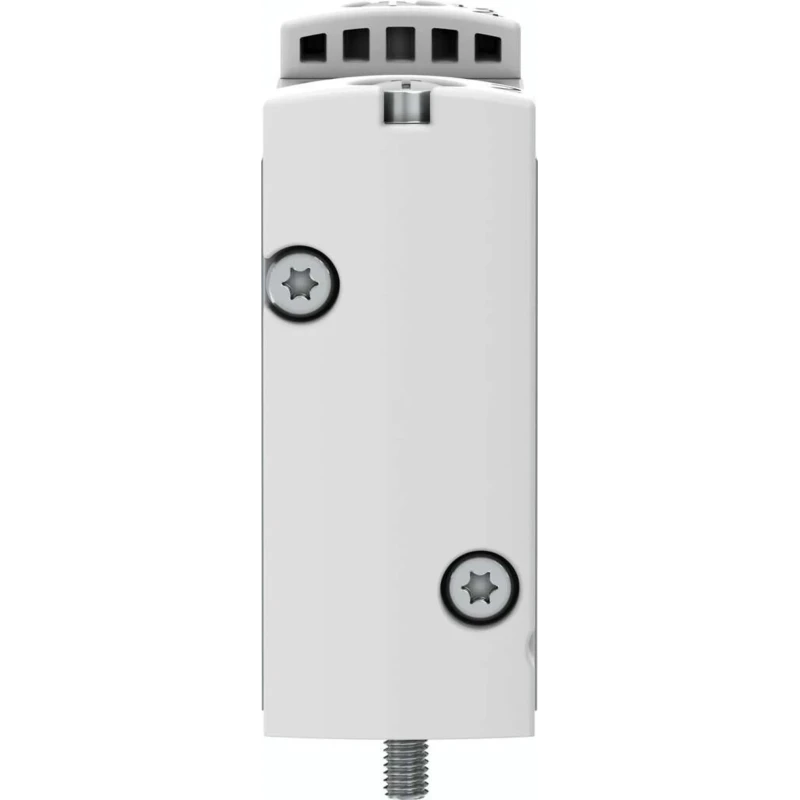

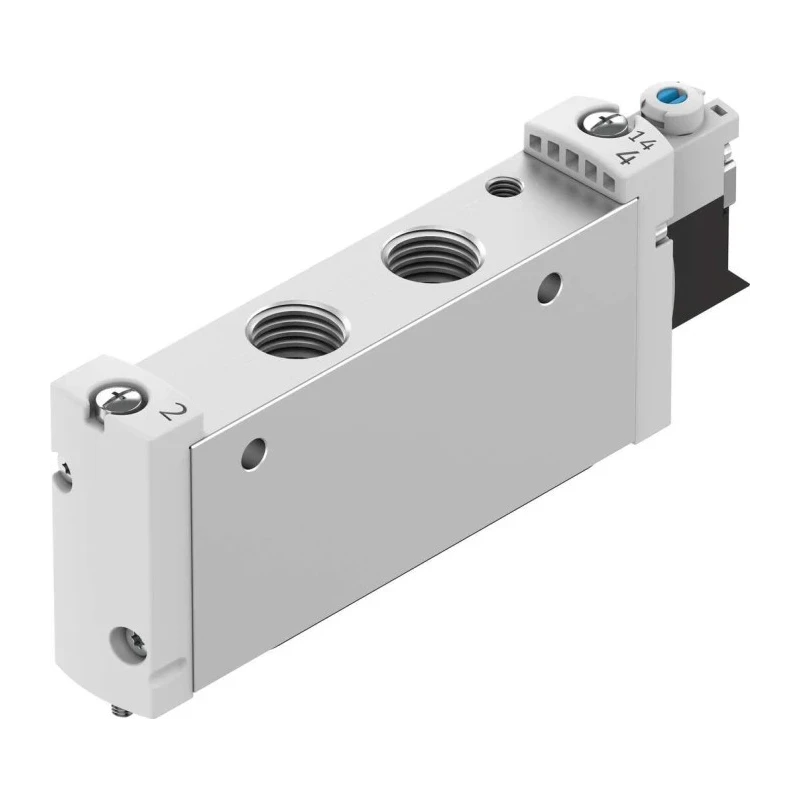

Festo Pneumatic Solenoid Valve 5/2 Monostable Electric 24V, 1/4 in Port, Wrought Aluminium Alloy Body VUVG-L18-M52-MT-G14-1P3

Festo VUVG-L18-M52-MT-G14-1P3 pneumatic solenoid valve 5/2 monostable electric 24V is engineered for reliable and efficient control of compressed air in pneumatic systems. Built with a robust wrought aluminium alloy body, this valve ensures durability and resistance to rust, suitable for demanding industrial environments.

This solenoid valve features a five-port design with a monostable (single-acting) valve function, allowing it to automatically reset to its base position via mechanical spring when de-energized. The valve works with a 24V electrical actuation and consumes only 1W power, making it energy-efficient and compatible with standard industrial control systems.

The valve’s port size is 1/4 inch female with G-thread connections, supporting a maximum operating pressure of 8 bar and pilot pressure between 3 and 8 bar. It can handle a maximum flow rate of 1300 L/min, suitable for high-flow pneumatic operations. The included nitrile rubber (NBR) seals provide reliable sealing under various working conditions.

Operating temperature ranges from -5°C to 60°C, ensuring versatility across different ambient conditions. Its manifold mounting and electrical connection plate design facilitate quick and secure installation in pneumatic circuits.

Common applications include automation in gas plants, printing presses, agriculture machinery, food packaging lines, and robotics, where precise and rapid control of pneumatic actuators is required. The valve’s monostable function means it stays in its reset position when power is off, ensuring safety and predictable operation.

This valve features a five-port monostable function optimized for pneumatic control applications. Constructed with a wrought aluminium alloy body for robust and corrosion-resistant performance. Operates on 24V electrical actuation with minimal power consumption.

Supports a maximum pressure of 8 bar and flow rate of 1300 L/min for high performance. Equipped with nitrile rubber seals for effective pressure containment. Wide operating temperature range from -5°C to 60°C suits various industrial environments.

Manifold mount and electrical connection plate provide ease of installation and maintenance. Designed for industrial use in gas plants, printing, agriculture, food packaging, and robotics automation. For advanced pneumatic system control, explore more Pneumatic Solenoid Valves and components within EnvMart’s industrial valves category.
