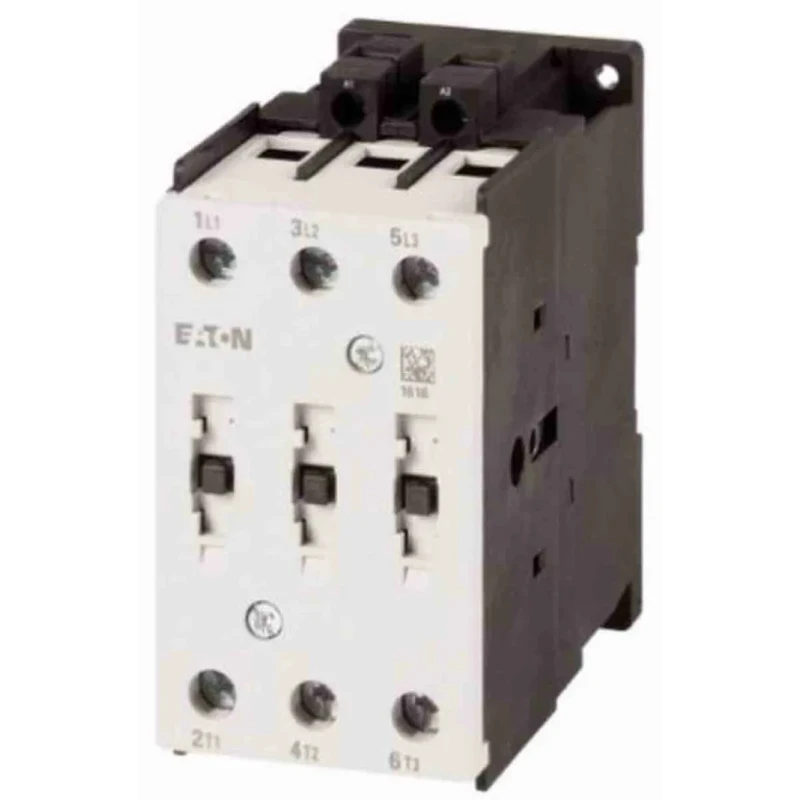

Eaton DILMT Contactor 24V AC Coil, 3-Pole, 40A, 18.5 kW, 3 NO, 660V 197619 DILMT40(24V50/60HZ)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Function | Motor Control |
| Length | 104mm |
| Model | 197619 DILMT40(24V50/60HZ) |
| Depth | 103mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | DILMT |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL, IEC |
| Contact Voltage | 660V |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 40A |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Operates with a coil voltage of 24V AC for reliable switching.
- Configured with 3 poles and 3 normally open contacts (3 NO).
- Supports contact voltage up to 660V and operational current of 40A.
- Power rating of 18.5 kW suitable for motor control loads.
- Designed for DIN rail mounting for easy installation.
- Screw terminal type ensures secure electrical connections.
- Functional for motor control with a temperature range of -25°C to 55°C.
- Certified to CSA, UL, and IEC standards for quality and safety.
Product Description
Eaton 197619 DILMT40(24V50/60HZ) Contactor features a 24V AC coil and is a 3-pole device rated for 40A current and 18.5 kW power, optimized for motor control applications. This device operates with three normally open contacts (3 NO) and is suitable for contact voltages up to 660V.
The contactor supports a wide operating temperature range from -25°C to 55°C, allowing use in varied environmental conditions. Its mounting type is DIN rail, which facilitates standardized and secure installation in control panels. The screw terminal connection type provides robust and maintenance-friendly electrical connections.
This contactor complies with CSA, UL, and IEC standards, ensuring high safety and quality levels. It is suitable for various industrial use cases including motor control in automation and electrical systems, making it ideal for manufacturing, HVAC, and industrial automation sectors.
The physical dimensions are 104mm in length, 55mm in width, and 103mm in depth, making it compact and suitable for panel integration. The Eaton DILMT series represents a reliable subrange for motor contactors with utilization categories suitable for AC-1 and NAC-3 applications.
Operates with a coil voltage of 24V AC for reliable switching. Configured with 3 poles and 3 normally open contacts (3 NO). Supports contact voltage up to 660V and operational current of 40A. Power rating of 18.5 kW suitable for motor control loads.
Designed for DIN rail mounting for easy installation. Screw terminal type ensures secure electrical connections. Functional for motor control with a temperature range of -25°C to 55°C. Certified to CSA, UL, and IEC standards for quality and safety.
Compact dimensions suitable for panel integration. Explore the Eaton brand range of Contactors and control gear on EnvMart for diverse applications in industrial automation and electrical control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 24V AC, which is used for reliable switching in motor control applications.
This model supports a maximum contact voltage of 660V, making it suitable for various industrial applications.
The operational current rating of this contactor is 40A, which allows it to handle significant electrical loads.
This contactor has a power rating of 18.5 kW, suitable for motor control loads in various applications.
The physical dimensions of this contactor are 104mm in length, 55mm in width, and 103mm in depth, making it compact for panel integration.
This contactor is designed for DIN rail mounting, facilitating standardized and secure installation in control panels.
It features screw terminals, which ensure secure electrical connections and ease of maintenance.
The contactor operates effectively within a temperature range of -25°C to 55°C, allowing use in various environmental conditions.
This model is certified to CSA, UL, and IEC standards, ensuring compliance with quality and safety requirements.
This contactor is configured with 3 poles and 3 normally open contacts (3 NO), suitable for motor control applications.
It is suitable for motor control applications in various sectors, including manufacturing, HVAC, and industrial automation.
This contactor belongs to the Eaton DILMT series, which is optimized for motor control applications.
