Block PCB Transformer 8 V AC Dual Output Through Hole, 14 VA, UL, VDE FL 14/8

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 8 V AC Dual Output Through Hole, 14 VA, UL, VDE FL 14/8

Name: Block PCB Transformer 8 V AC Dual Output Through Hole, 14 VA, UL, VDE FL 14/8
Brand: Block
SKU: 275382
Price: 32.18 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	74%
Length	68mm
Model	FL 14/8
Depth	57mm
Gross Weight	315g
Width	24.4mm
Mount Type	Through Hole
Standard	EN60742, VDE 0551, IEC 61558
Minimum Operating Temperature	40°C
Number of outputs	2
Winding Type	Dual Primary, Dual Secondary
Standards/Approvals	UL, VDE
Primary Voltage	230 V ac, 115 V
Secondary Voltage	8 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Operates efficiently with 74% efficiency at 50 to 60 Hz frequency range.
Features dual primary windings for 115/230 V AC input selection.
Equipped with dual secondary outputs delivering 8 V AC each.
Constructed using vacuum epoxy resin moulding with UL94-V0 flammability rating.
Designed with double-section glass fibre reinforced polyamide bobbins for insulation.
Low inter-winding capacitance reduces electrical noise during operation.
Compact low-profile design measuring 68 mm length, 24.4 mm width, and 57 mm depth.
Meets UL and VDE standards with testing for electrical and flash safety.

Product Description

It is designed for through-hole PCB mounting in electronic power supply and transformer applications with input voltages of 115 V or 230 V AC. The transformer operates efficiently at 74% efficiency within the frequency range of 50 Hz to 60 Hz.

This transformer is vacuum epoxy resin moulded providing UL94-V0 flame retardant characteristics, ensuring safety compliance with UL and VDE standards including EN60742, VDE 0551, and IEC 61558. It includes double-section glass fibre reinforced polyamide bobbins that provide durable insulation and reliability in demanding environments.

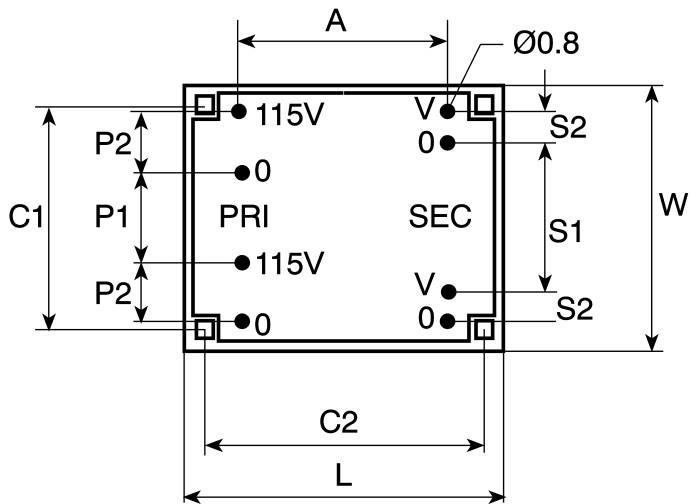

Its compact and low-profile form factor with dimensions 68 mm (L) x 24.4 mm (W) x 57 mm (D) enables secure PCB mounting with additional fixing holes. The transformer’s winding design allows series or parallel connection of dual primary 115 V AC windings and dual secondary windings for flexible application setups. Low inter-winding capacitance and low radiated noise enhance performance in sensitive electronic circuits.

This product is ideally suited for industrial, laboratory, and electronic power supply manufacturing sectors requiring reliable and certified PCB transformers for power conversion. Its robust build quality and conformity to stringent safety standards ensure long-term operational stability.

Operates efficiently with a 74% efficiency rating at frequencies of 50 to 60 Hz. Dual primary windings for flexible 115/230 V AC input configuration. Dual secondary windings delivering two 8 V AC outputs. Vacuum epoxy resin moulding to UL94-V0 flammability standard enhances safety.

Constructed with glass fibre reinforced polyamide bobbins for mechanical strength. Low inter-winding capacitance minimizes electrical interference. Compact dimensions facilitate easy PCB mounting and installation. Certified to UL and VDE standards including EN60742 and IEC 61558.
