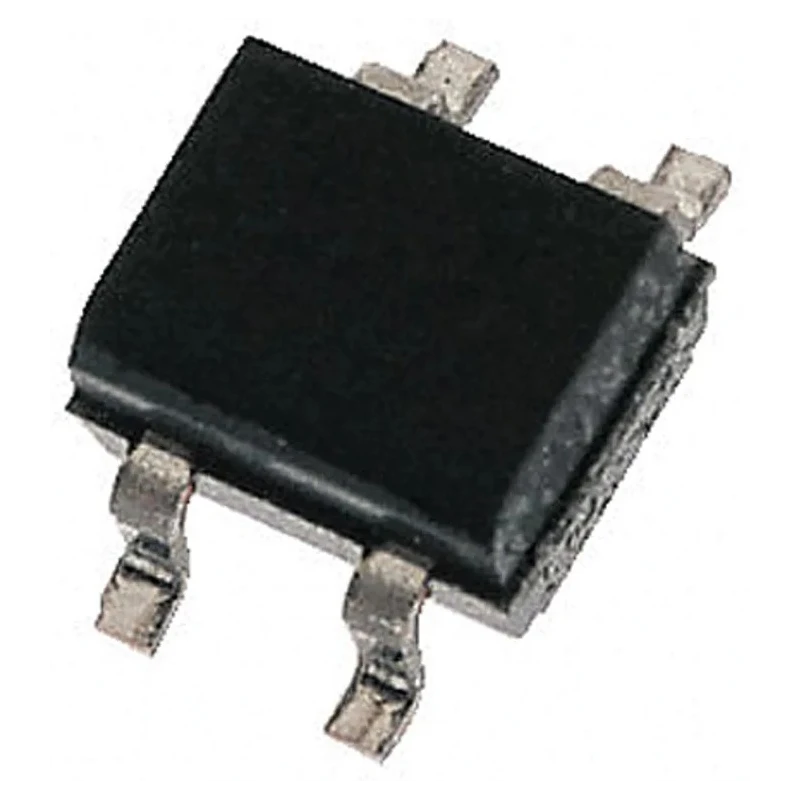

HY Electronic Corp Bridge Rectifier 1000 V 60 A 4-Pin Single DB207S

HY Electronic Corp DB207S bridge rectifier is a surface mount discrete semiconductor device designed to efficiently convert AC input to DC output in electronic circuits. Rated for a peak reverse repetitive voltage of 1000 volts and a forward current rating of 2 amperes, this bridge rectifier offers reliable performance for power conversion applications.

The device features a compact DBS package with precise dimensions: length of 8.8 mm, width of 6.5 mm, and height of 3.4 mm, allowing for easy integration into PCB layouts. Its robust plastic material has a UL94V-0 flammability classification, ensuring safety against fire hazards.

Operating temperature range from -55°C to 150°C makes it suitable for harsh environmental conditions often encountered in industrial, automotive, and manufacturing sectors. The DB207S also complies with automotive standard AEC-Q101, reflecting high-quality manufacturing and reliability standards.

This bridge rectifier supports a peak non-repetitive forward surge current of 60 amperes, enabling it to withstand transient overloads commonly found in power supply circuits. The peak forward voltage is 1.1 V, which aids in reducing power dissipation during operation.

The 4-pin single configuration package is ideal for typical bridge rectifier circuits used in electronic equipment, power supplies, and industrial electronic assemblies. It is commonly used in electronics manufacturing, automotive electronics, HVAC systems, and general industrial applications where efficient AC to DC conversion is needed.

Peak reverse repetitive voltage of 1000 volts ensures high voltage tolerance. Maximum forward current of 2 amperes supports moderate load requirements. Compact dimensions with length 8.8 mm, width 6.5 mm, and height 3.4 mm.

Operates effectively between -55°C to 150°C temperature range. Constructed with UL94V-0 rated plastic material for flame retardancy. Meets automotive standard AEC-Q101 ensuring reliability in automotive applications. Surface mount package type DBS provides PCB mount convenience.

Peak forward voltage of 1.1 volts minimizes power loss during operation. Peak non-repetitive forward surge current rating of 60 amperes for transient tolerance. Pin count of 4 suitable for typical Bridge Rectifier circuit configurations.

Explore this product and other electronic components in the Electronics & Electricals category at EnvMart, suitable for industrial manufacturing, automotive, laboratory, and commercial electronics needs.
