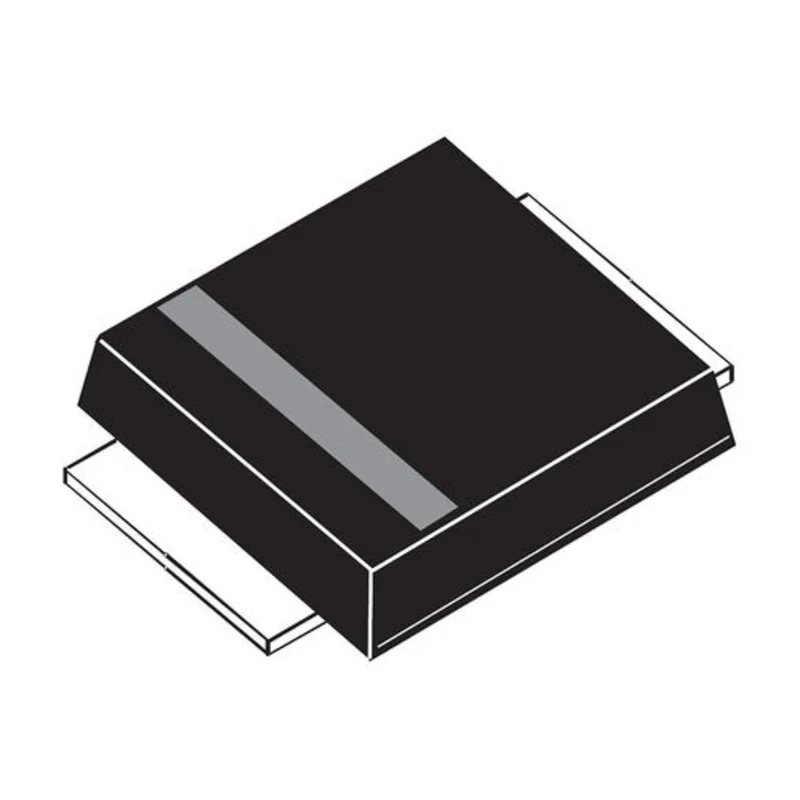

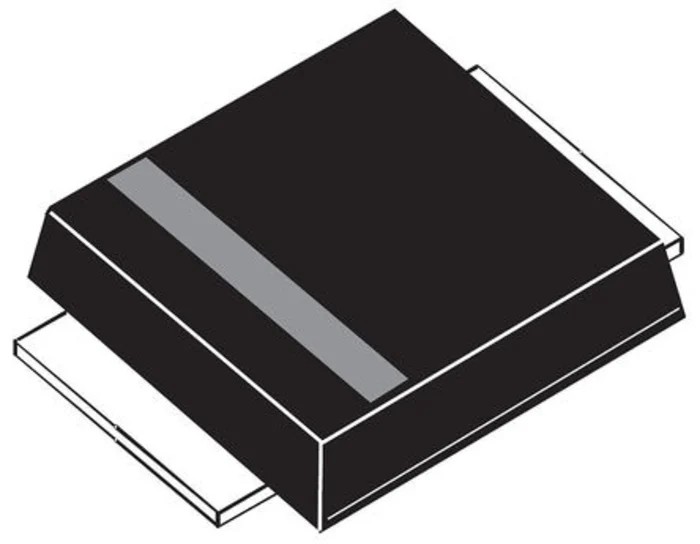

STMicroelectronics 150 V 3 A Surface Mount Schottky Diode SMB Package STPS3150UF
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS3150UF |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS3150 |
| Maximum Operating Temperature | 175°C |
| Package Type | SMB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 0.63V |
Key Features
- The device features a surface mount SMB package for compact PCB integration.
- Maximum continuous forward current rating is 3 amperes ensuring reliable operation.
- Peak reverse repetitive voltage capability reaches 150 volts.
- Peak non-repetitive forward surge current of 80 amperes supports transient handling.
- The diode exhibits a low forward voltage drop of 0.63 volts for efficient conduction.
- Operating temperature range spans from -65°C minimum to 175°C maximum.
- Compact dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height facilitate space-saving designs.
- 2-pin diode configuration optimized for single Schottky rectifier application.
Product Description
STMicroelectronics STPS3150UF is a high-performance surface mount Schottky diode designed for power rectification in electronic circuits. With a forward current rating of 3 A and a peak repetitive reverse voltage of 150 V, it efficiently manages power conversion, minimizing losses due to its low forward voltage of 0.63 V. The SMB package type ensures compatibility with automated PCB assembly for industrial and commercial electronics manufacturing.
The diode supports transient conditions with a peak surge current capability up to 80 A, enhancing protection and reliability. It operates reliably within a broad temperature range from -65°C to 175°C, making it suitable for harsh environmental conditions encountered in industrial electronics, power supplies, and automotive auxiliary circuits.
Its compact size (4.6 mm length, 3.95 mm width, 2.45 mm height) optimizes board space, especially beneficial in densely packed electronic assemblies. The single diode configuration allows straightforward implementation in rectifier circuits.
This product does not carry any special standards or automotive certifications, focusing on general use in semiconductor and electronic component applications. The surface mount SMB package enables efficient assembly and compact designs.
Max forward current of 3 A supports a wide range of power levels. Reverse voltage of 150 V safeguards against voltage spikes in operation. Low forward voltage reduces energy loss and heat dissipation. Wide operating temperature range enhances application versatility.
High surge current capability protects against transient overloads. Compact physical dimensions facilitate integration in space-constrained applications. Two-pin configuration simplifies circuit design and implementation.
Ideal for use in industrial power rectification circuits, power management systems, and electronic manufacturing requiring reliable Schottky barrier diode performance. Browse EnvMart’s semiconductor and Diode categories for related products and component options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 3 amperes, ensuring reliable operation in power rectification applications.
This model has a peak reverse repetitive voltage capability of 150 volts, which helps safeguard against voltage spikes during operation.
The diode has compact dimensions of 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, making it suitable for space-constrained applications.
It operates within a temperature range of -65°C to 175°C, allowing for versatility in various environmental conditions.
The peak non-repetitive forward surge current capability is 80 amperes, providing enhanced protection against transient conditions.
This diode features a surface mount SMB package, which is compatible with automated PCB assembly processes.
It has a 2-pin configuration, optimized for single Schottky rectifier applications, simplifying circuit design.
The maximum forward voltage drop is 0.63 volts, which contributes to efficient conduction and reduced energy loss.
This model is a Schottky rectifier, designed for efficient power rectification in electronic circuits.
It is suitable for industrial power rectification circuits, power management systems, and electronic manufacturing requiring reliable performance.
The peak reverse current is rated at 2 mA, which is a typical specification for Schottky diodes in this category.
The country of origin for this diode is India.
