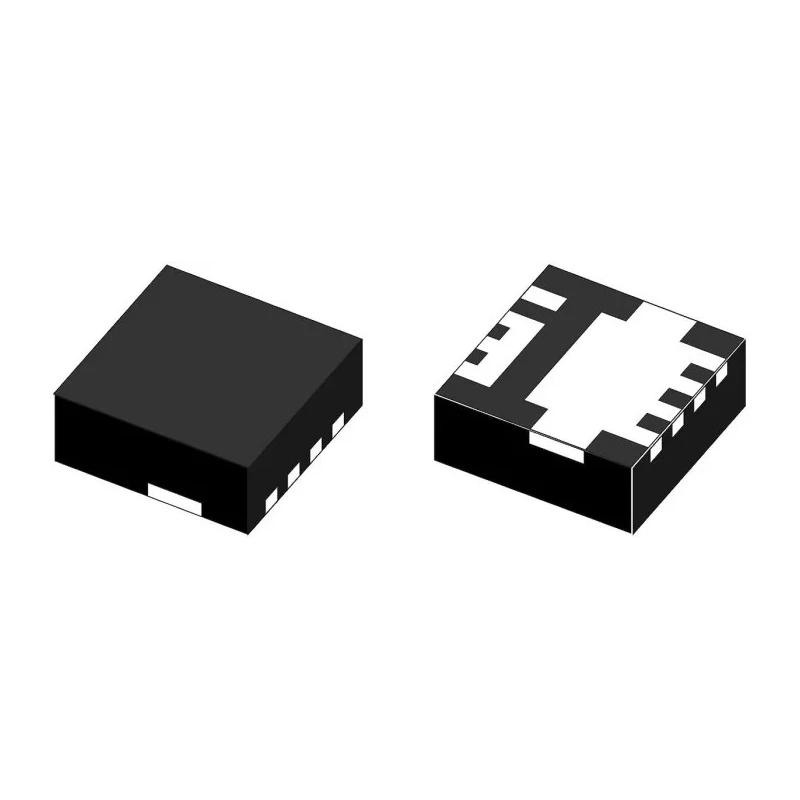

STMicroelectronics 45 V 10 A Surface Mount Schottky Diode PowerFLAT 8-Pin STPS1045DEE-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 3.4mm |
| Model | STPS1045DEE-TR |
| Width | 3.4mm |
| Mount Type | Surface |
| Series | STPS1045DEE |
| Maximum Operating Temperature | 175°C |
| Package Type | PowerFLAT |
| Minimum Operating Temperature | -65°C |
| Pin Count | 8 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 40mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.45V |
Key Features
- Surface mount diode with PowerFLAT 8-pin package suitable for compact PCB designs.
- Maximum continuous forward current of 10 amperes ensures high load handling capability.
- Peak reverse repetitive voltage rated at 45 volts for robust reverse voltage blocking.
- Low forward voltage drop of 0.45 V reduces power loss during conduction.
- Wide operating temperature range from -65°C to 175°C enables use in harsh environments.
- Peak non-repetitive forward surge current of 100 A for transient tolerance.
- Compact dimensions with length and width of 3.4 mm and height of 1.05 mm.
- Single diode configuration with 8 pins for efficient mounting and connectivity.
Product Description
STMicroelectronics STPS1045DEE-TR is a high-performance Schottky diode designed for surface mount applications with a PowerFLAT 8-pin package.
This diode supports a maximum continuous forward current of 10 amperes and a peak reverse repetitive voltage of 45 volts, making it suitable for various power management and rectification tasks in industrial, commercial, and electronic systems.
The device features a low maximum forward voltage of 0.45 V, improving energy efficiency by minimizing conduction losses. It operates reliably in a wide temperature range, from -65°C to 175°C, which suits demanding environments such as automotive and industrial equipment.
The diode's compact package dimensions of 3.4 mm by 3.4 mm by 1.05 mm enable versatile mounting on crowded circuit boards. Its ability to withstand a peak non-repetitive forward surge current of up to 100 A ensures durability under transient loads.
Surface mount PowerFLAT 8-pin package facilitates efficient PCB assembly. Maximum continuous forward current of 10 A supports high current applications. Peak reverse repetitive voltage of 45 V protects circuits from voltage spikes.
Low forward voltage drop of 0.45 V reduces power dissipation. Wide operating temperature range from -65°C to 175°C ensures stability. Peak forward surge current of 100 A provides transient robustness. Compact dimensions (3.4 mm length and width, 1.05 mm height) suit compact designs.
Single diode configuration optimized for power rectification tasks. Applicable in semiconductor, power electronics, industrial, and automotive fields. This product is ideal for engineers requiring reliable diode performance with compact form factor for electronic design, industrial applications, and power supply rectification.
Explore more semiconductor and diode solutions to meet your industrial and commercial project requirements at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 10 amperes.
It has a peak reverse repetitive voltage rating of 45 volts.
The dimensions of the PowerFLAT package are 3.4 mm in length and width, and 1.05 mm in height.
The diode operates within a wide temperature range from -65°C to 175°C.
The maximum forward voltage drop is 0.45 volts.
The peak non-repetitive forward surge current rating is up to 100 amperes.
This model features a single diode configuration with 8 pins.
It supports surface mounting, making it suitable for compact PCB designs.
This diode is applicable in semiconductor, power electronics, industrial, and automotive fields.
The peak reverse current is rated at 40 milliamperes.
The low forward voltage drop of 0.45 V reduces power loss during conduction, improving energy efficiency.
The country of origin for this model is India.
