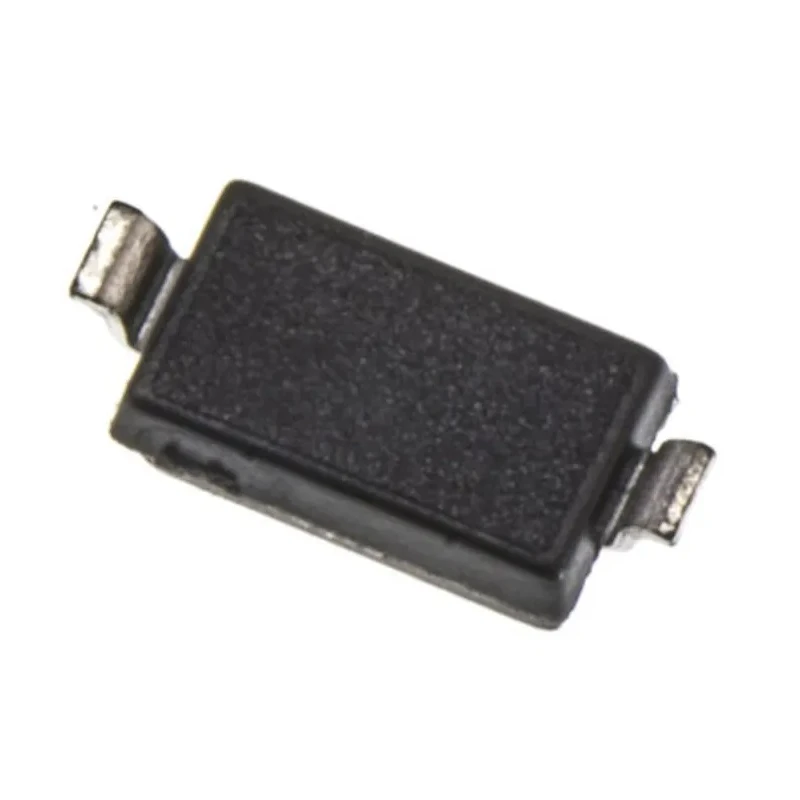

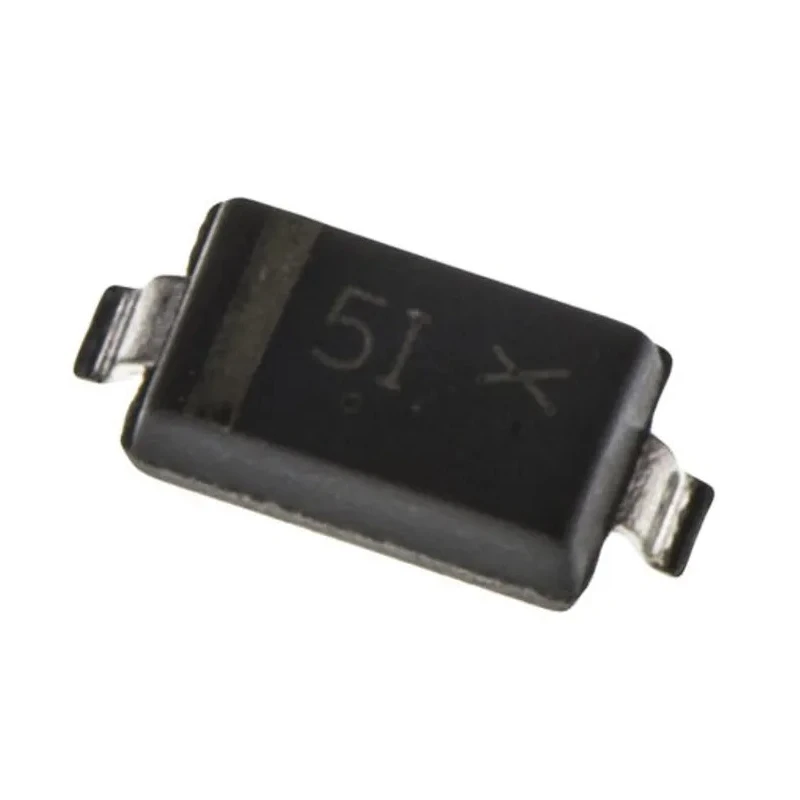

STMicroelectronics 100 V 2 A Surface Mount Schottky Diode DO-214AA STPS2H100UY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS2H100UY |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS2H100-Y |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- Designed for surface mount applications with DO-214AA package type.
- Maximum continuous forward current of 2 amperes ensures reliable performance.
- Peak reverse voltage rating of 100 volts offers excellent blocking capability.
- Features low forward voltage drop of 0.6 volts for efficient rectification.
- Wide operating temperature range from -40°C to 175°C supports harsh environments.
- Peak non-repetitive forward surge current rating of 75 amperes for transient conditions.
- Single diode configuration with 2 pins suitable for compact electronic assemblies.
- Non-automotive standard component without specific automotive certifications.
Product Description
STMicroelectronics STPS2H100UY is a high-efficiency Schottky diode designed for surface mount applications in electronic circuits. It comes in a compact DO-214AA package and supports a maximum continuous forward current of 2 A and peak reverse voltage of 100 V, making it suitable for power rectification with minimal voltage loss.
This diode features a low maximum forward voltage of 0.6 V which reduces power dissipation and improves overall circuit efficiency. It operates reliably over a broad temperature range from -40°C to 175°C, allowing use in demanding industrial and commercial environments.
The STPS2H100UY diode withstands peak non-repetitive surge currents up to 75 A, providing robust transient tolerance during switching or fault conditions. Its small size dimensions (4.6 mm length, 3.95 mm width, 2.45 mm height) enable space-saving PCB designs.
Its single diode configuration with 2 pins simplifies installation in compact circuits requiring efficient power conversion. Though not specified for automotive standards, it is optimal for industrial electronics, consumer devices, and power supply applications.
Utilized in semiconductor, electronics manufacturing, and assembly sectors, this diode facilitates reliable and efficient power rectification in compact assemblies. Designed for surface mount applications with DO-214AA package type.
Maximum continuous forward current of 2 amperes ensures reliable performance. Peak reverse voltage rating of 100 volts offers excellent blocking capability. Features low forward voltage drop of 0.6 volts for efficient rectification.
Wide operating temperature range from -40°C to 175°C supports harsh environments. Peak non-repetitive forward surge current rating of 75 amperes for transient conditions. Compact dimensions: length 4.6 mm, width 3.95 mm, and height 2.45 mm.
Single diode configuration with 2 pins suitable for compact electronic assemblies. Non-automotive standard component without specific automotive certifications. Explore additional semiconductor products and Schottky Diode options at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 amperes.
The peak reverse voltage rating is 100 volts, providing excellent blocking capability.
This diode has dimensions of 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The maximum forward voltage drop is 0.6 volts, which aids in efficient rectification.
It operates reliably over a wide temperature range from -40°C to 175°C.
The peak non-repetitive forward surge current rating is 75 amperes, allowing for robust transient tolerance.
This model supports surface mount applications, specifically in a DO-214AA package type.
It has a single diode configuration with 2 pins, making it suitable for compact electronic assemblies.
This diode is a non-automotive standard component and does not have specific automotive certifications.
It is a Schottky diode, designed for efficient power rectification in electronic circuits.
It is utilized in semiconductor, electronics manufacturing, and assembly sectors for reliable power rectification.
The peak reverse current is 1 mA, indicating its performance under reverse bias conditions.
