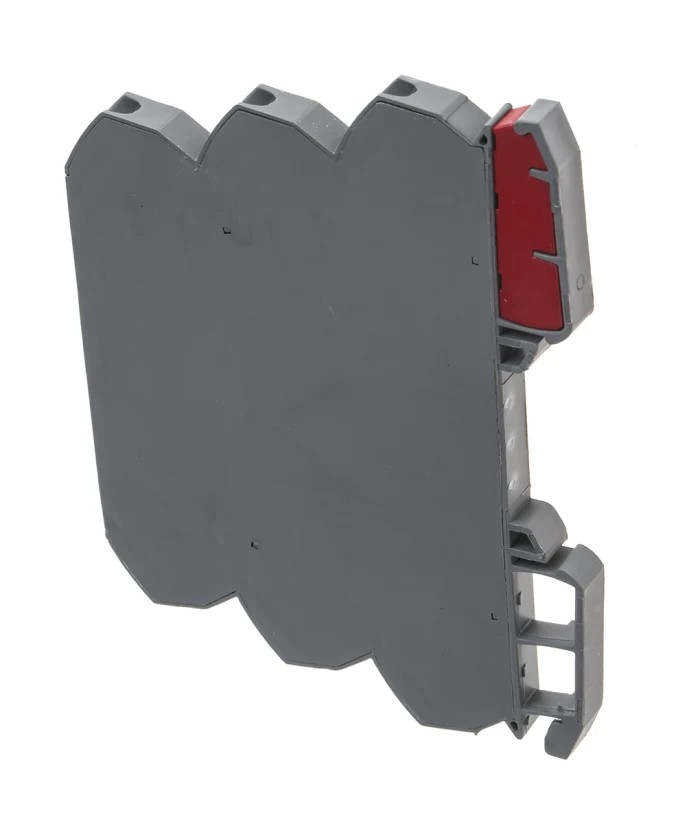

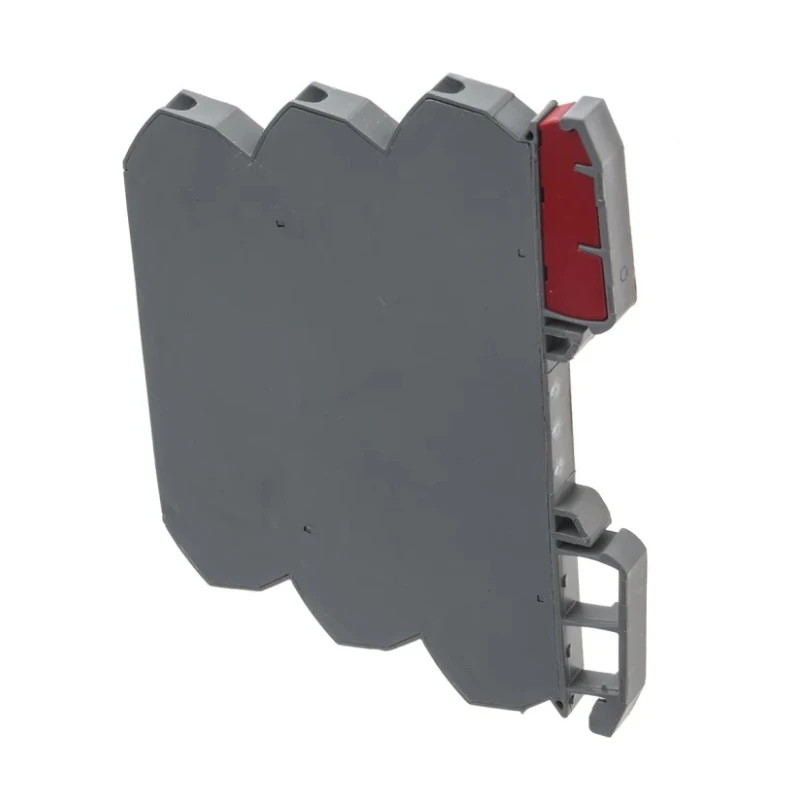

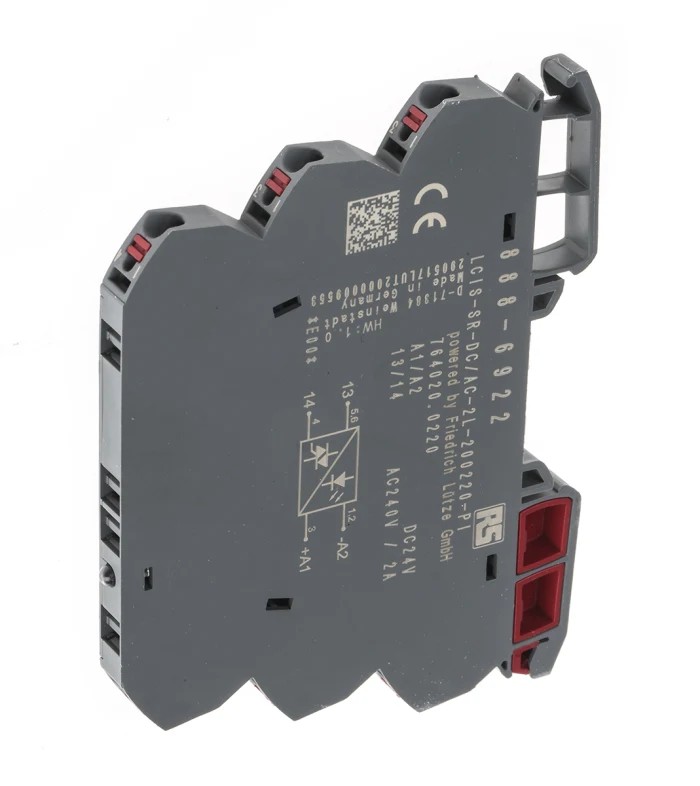

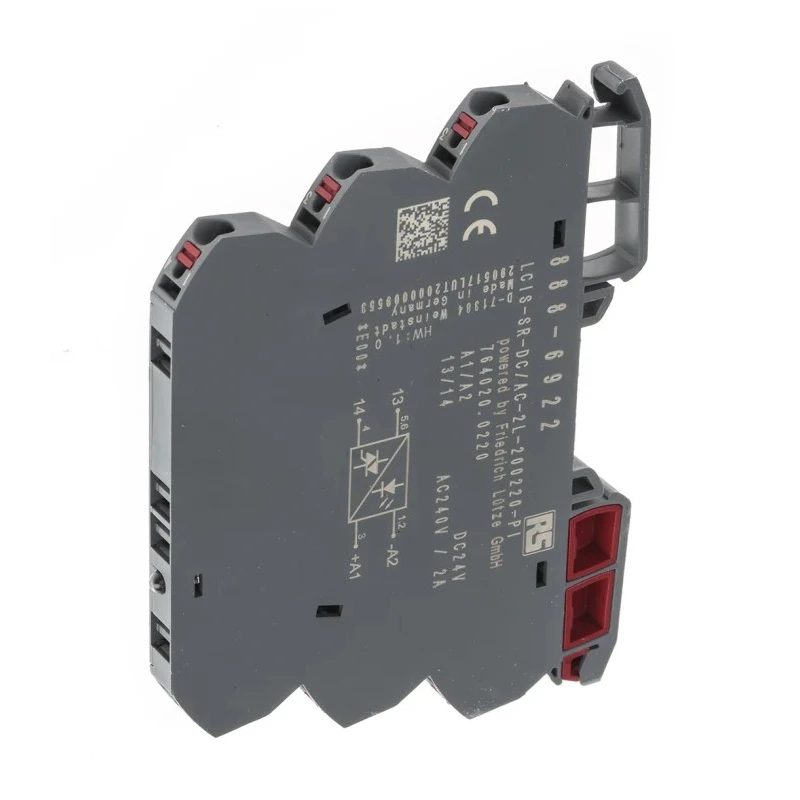

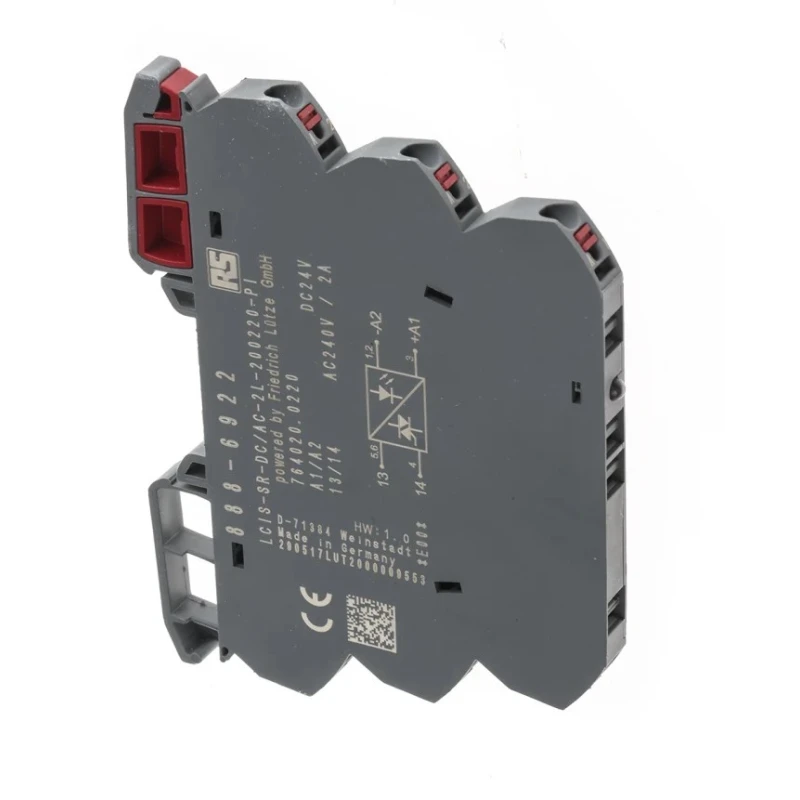

RS PRO Solid State Relay 2 A Load, DIN Rail Mount, 264 V Load, 30 V Control 888-6922

RS PRO 888-6922 Solid State Relay is engineered for industrial and electrical automation applications requiring accurate and reliable DC switching of loads up to 2 A. Featuring a DIN rail mount design, this relay supports maximum load voltage of 264 V and control voltages from 11 V to 30 V, making it suitable for a variety of control systems.

The relay employs MOSFET output technology ensuring wear-free, bounce-free switching with low control power consumption. Its push-in terminal design guarantees secure connections, even under vibration conditions, and the integrated LED indicator provides visual confirmation of switching status.

Operating temperature ranges from -25°C to 60°C, allowing usage in diverse industrial environments. The relay's compact dimensions (6.2 mm width, 93 mm height, 73 mm depth) facilitate installation in narrow spaces on DIN rails. With an IP20 rating and compliance with UL, RoHS, and CSA standards, it meets necessary safety and environmental requirements.

The off-state leakage current is minimal, ensuring efficient operation. RS PRO Solid State Relays are commonly used in automation, manufacturing, control panels, and electrical installations that demand precise and reliable electronic switching.

Compact relay for precise DC switching applications. Push-in terminal type for secure and vibration-resistant connections. Operates between -25°C to 60°C for varied industrial environments. Single pole single throw (SPST) contact configuration ensures reliable switching.

MOSFET output provides wear-free and bounce-free switching. LED indicator for clear operational status monitoring. IP20 rated for protection against solid objects above 12 mm. Complies with UL, RoHS, and CSA standards for safety and environmental compliance.

Dimensions: 6.2 mm width, 93 mm height, and 73 mm depth, ideal for narrow applications. Off-state leakage current limited to 1 mA for energy efficiency.

This relay is ideal for integration into industrial automation, manufacturing equipment, and control systems where space is limited but reliable switching is critical. Browse more relays and automation products from RS PRO at EnvMart for robust and precise control solutions.
