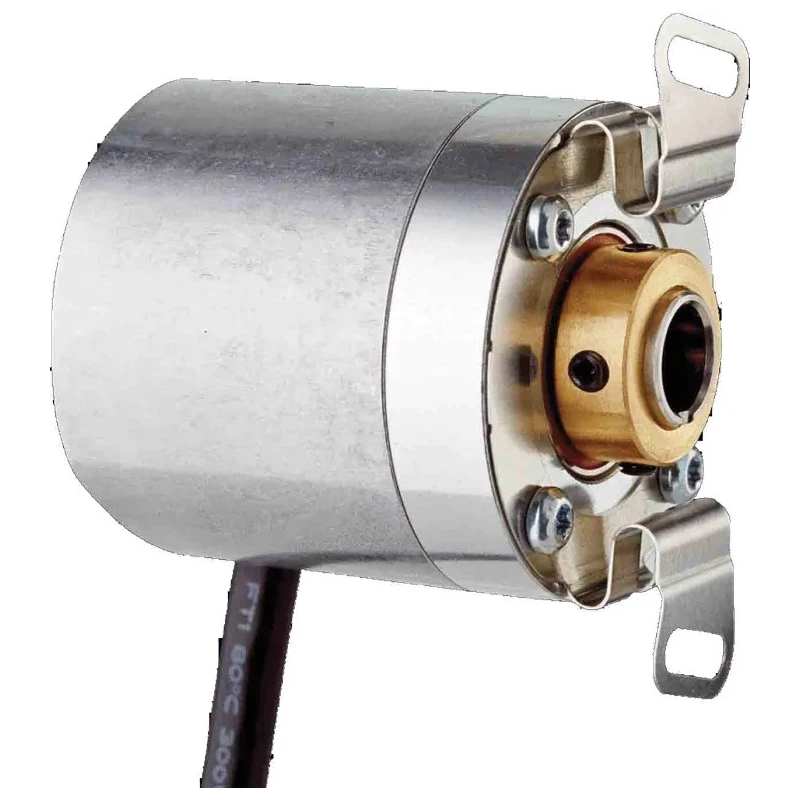

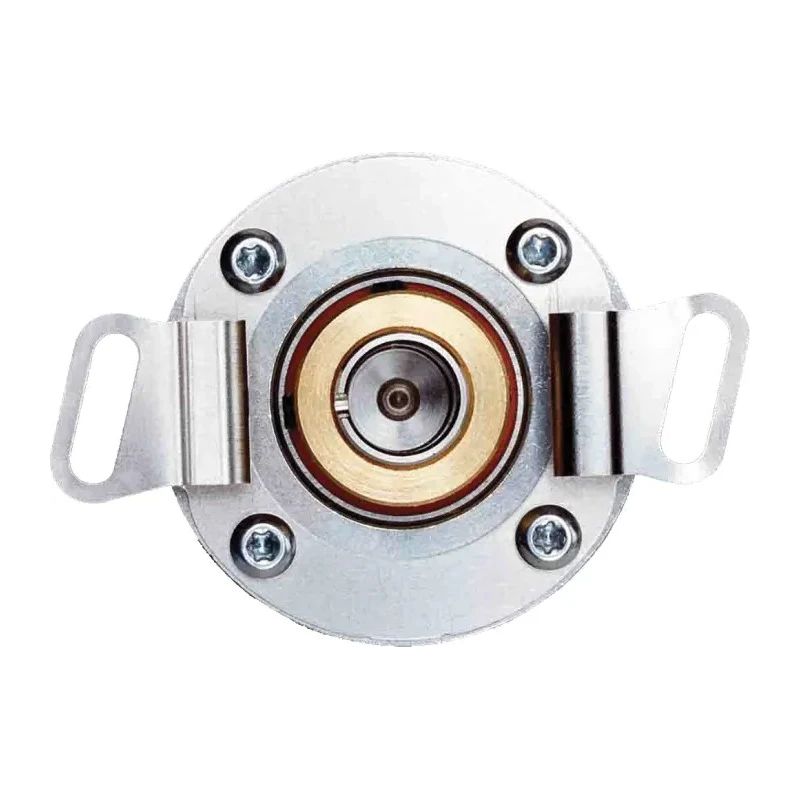

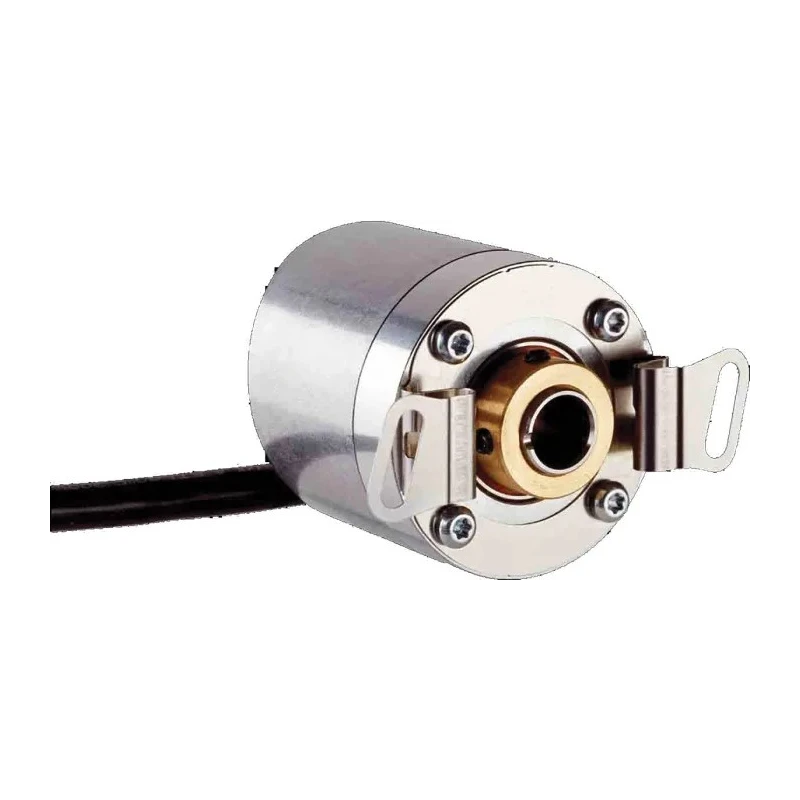

SICK Incremental Encoder 30V DC, 500 PPR, HTL Signal, Blind Hollow Shaft 8mm, Flange Mount DBS363

The SICK DBS363 Series Incremental Encoder, model DBS36E-BBEK00500 / 1060532, is a high-precision incremental encoder designed to provide reliable speed and position feedback for industrial motion control applications. Operating at 30V DC supply voltage, it delivers 500 pulses per revolution using HTL output signals, making it suitable for accurate measurement tasks.

This encoder features a blind hollow shaft of 8 mm diameter, allowing flexible coupling options. The flange mounting mechanism ensures secure installation, while the stator coupling slots enable mounting on a pitch circle diameter (PCD) ranging from 42 to 46 mm. The device is protected to IP65 standards, offering robust resistance against dust and water ingress in harsh industrial settings.

Capable of handling rotational speeds up to 6000 RPM, the DBS363 supports industrial automation, manufacturing, and motion control systems requiring precise feedback. The wide operating temperature range of -20°C to +85°C ensures performance stability across diverse environmental conditions. Its switching frequency of 300 kHz allows it to process rapid signal changes required by high-speed applications.

The incremental encoder includes a 1.5-meter cable that can be routed either axially or radially to accommodate installation requirements. The hollow shaft can be adapted from 8 mm to 6 mm via a collet accessory (RS stock no. 2013656, not included). Compliance with EN 61000-6-2 and EN 61000-6-3 (class A) guarantees electromagnetic compatibility for industrial electromagnetic environments.

Operates at 30V DC supply voltage. Provides 500 pulses per revolution for accurate positioning. Blind hollow shaft design with 8 mm diameter for robust mechanical coupling. Flange mount construction facilitates easy installation.

IP65 protection rating ensures durability in harsh conditions. Maximum rotational speed of 6000 RPM suits dynamic applications. Wide operating temperature range from -20°C to 85°C ensures reliability. Switching frequency up to 300 kHz for fast signal processing.

1.5m cable allows flexible routing options. Meets EN 61000-6-2 and EN 61000-6-3 electromagnetic standards.

This Incremental Encoder is ideal for industrial automation, machinery monitoring, and other sensor applications where precise speed and position feedback are critical. Explore additional SICK sensors and encoders available at EnvMart for comprehensive motion control solutions.
