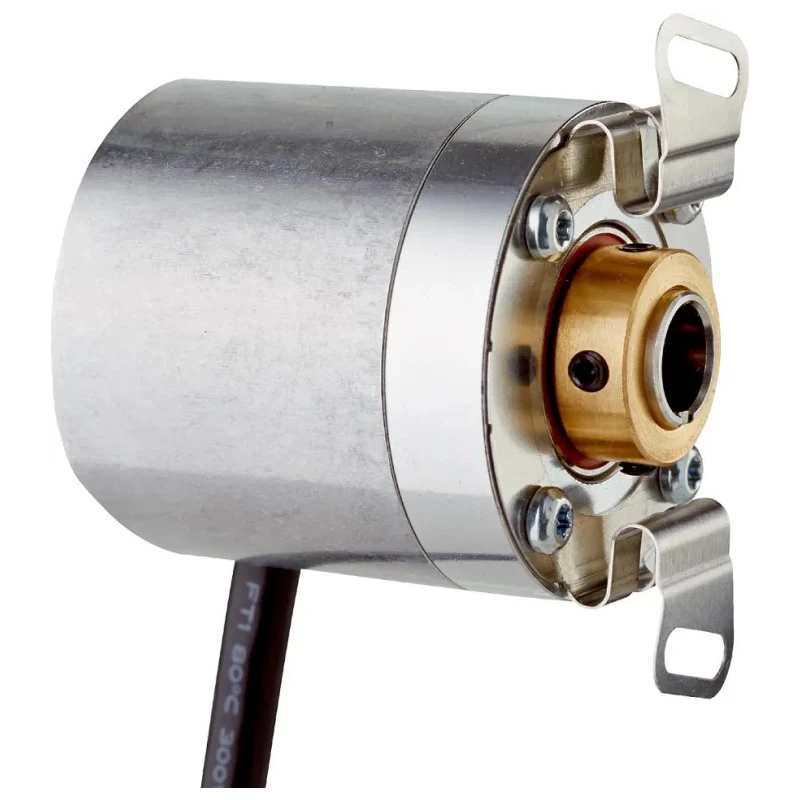

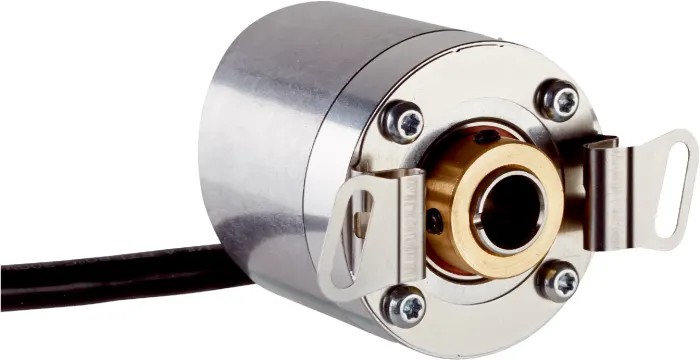

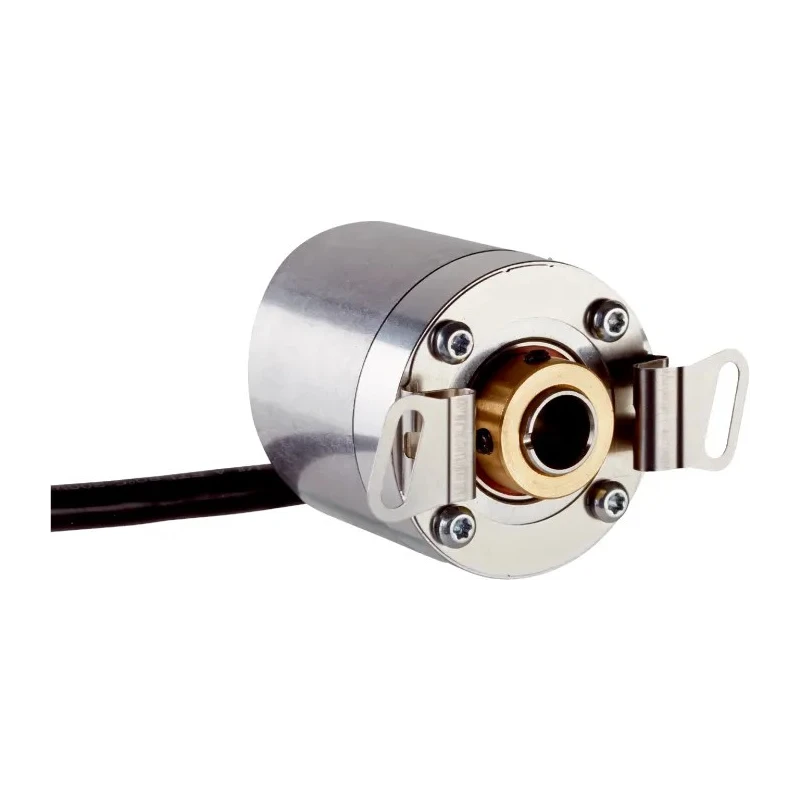

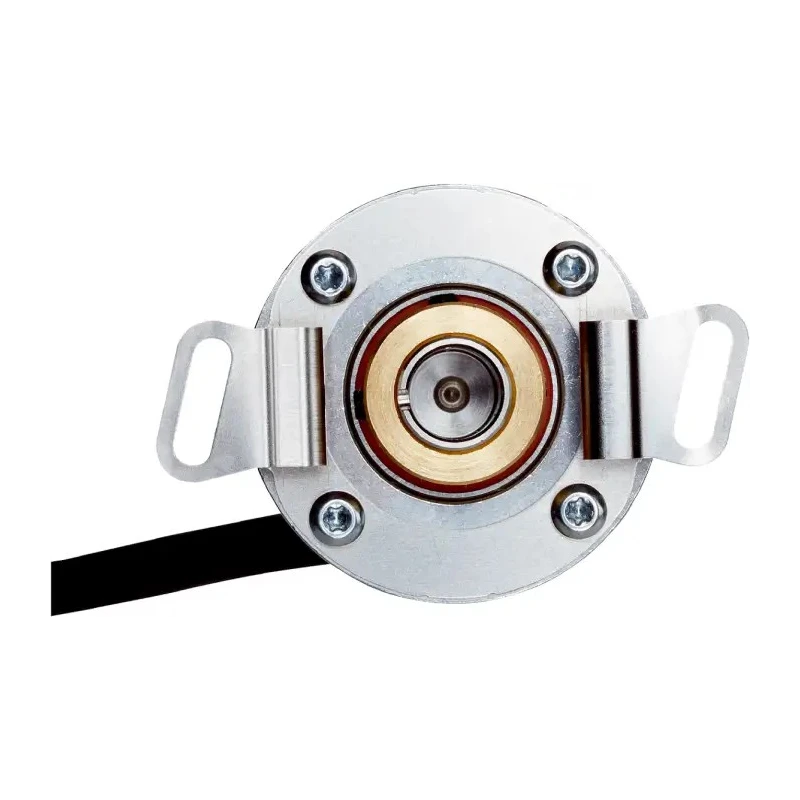

Sick DBS36 Core Series Incremental Encoder 5.5V DC, 1024 PPR, TTL Signal, Blind Hollow Shaft 8 DBS36E-BBAK001024 / 1060147
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Sick |
| Model | DBS36E-BBAK001024 / 1060147 |
| IP Rating | IP65 |
| Mount Type | Shaft |
| Series | DBS36 Core |
| Overall Width | 36mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 8mm |
| Overall height | 37mm |
| Switching Frequency | 300kHz |
| Shaft Type | Blind Hollow |
| Interface Type | Incremental |
| Pulses per Revolution | 1024ppr |
| Standards/Approvals | EN 61000-6-3 (class A), EN 61000-6-2 |
| Maximum Supply Voltage | 5.5V dc |
| Overall Depth | 45.4mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | TTL |
Key Features
- Provides precise rotary position feedback with 1024 pulses per revolution.
- Operates at 5.5V DC supply voltage with noise-immune TTL output signals.
- Robust aluminium housing with IP65 rating protects against dust and splashes.
- Features blind hollow shaft of 8 mm diameter for versatile mechanical integration.
- Supports maximum rotational speed of 6000 RPM and switching frequency up to 300 kHz.
- Operates reliably across a temperature range of -20°C to 85°C.
- Complies with EN 61000-6-3 (class A) and EN 61000-6-2 EMC standards.
- Bearings endure shocks up to 100g and vibrations up to 20g for durable performance.
Product Description
Sick DBS36E-BBAK001024 / 1060147 is an Incremental Encoder from the DBS36 Core Series designed for industrial automation with high precision. This encoder operates at 5.5V DC supply and generates 1024 pulses per revolution, providing fine positional granularity suitable for advanced motion control applications.
Its TTL signal output coupled with a blind hollow shaft of 8 mm diameter ensures reliable signal transmission and easy mechanical integration. The robust aluminium housing with an IP65 rating protects against dust ingress and water splashes, enabling use in demanding industrial environments.
It supports a maximum speed of 6000 RPM and a switching frequency of up to 300 kHz, allowing for high-speed monitoring and control.
The device has a wide operating temperature range from -20°C up to +85°C, and its bearings withstand shocks up to 100g and vibrations up to 20g, ensuring durability in harsh conditions.
Applications include servo motor feedback in factory automation, conveyor and packaging machinery position sensing, shaft-angle detection in robotics, and speed measurement in rotational test rigs.
Provides precise rotary position feedback with 1024 pulses per revolution. Noise-immune TTL output signal suitable for long-distance transmission. Robust aluminium IP65 housing ensures durability in harsh environments. Blind hollow shaft interface accepts 8 mm diameter shafts.
Maximum speed of 6000 RPM and switching frequency of 300 kHz for high-speed operations. Wide operating temperature range from -20°C to +85°C. Meets EN 61000-6-3 (class A) and EN 61000-6-2 electromagnetic compatibility standards.
Bearings rated for 2x10^9 revolutions withstand shocks and vibrations.
This encoder is suitable for industrial, automation, laboratory, manufacturing, robotics, and HVAC control system applications. It supports precise, repeatable position and speed measurement essential for effective process control.
Explore more sensors and control gear components on EnvMart for your industrial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Sick DBS36 Core Series Incremental Encoder supports a maximum rotational speed of 6000 RPM.
It features a TTL output signal type, which is suitable for noise-immune long-distance transmission.
This encoder provides 1024 pulses per revolution, allowing for precise rotary position feedback.
The overall dimensions are 36 mm in width, 37 mm in height, and 45.4 mm in depth.
It operates at a maximum supply voltage of 5.5V DC.
The operating temperature range is from -20°C to +85°C.
It features a blind hollow shaft with a diameter of 8 mm, allowing for versatile mechanical integration.
The maximum switching frequency is 300 kHz, enabling high-speed monitoring and control.
The encoder has an IP65 rating, which protects it against dust and water splashes.
It complies with EN 61000-6-3 (class A) and EN 61000-6-2 EMC standards.
This model is suitable for applications in industrial automation, including servo motor feedback, conveyor and packaging machinery position sensing, and robotics.
It features a robust aluminium housing that ensures durability in harsh environments.
