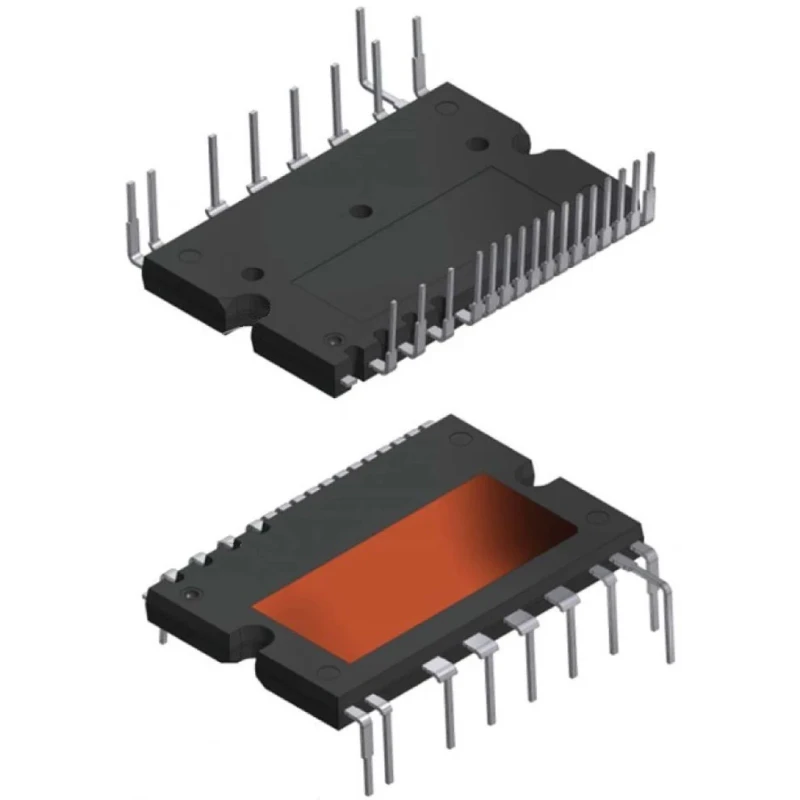

STMicroelectronics N-Channel Array Smart Power Module 20 A 600 V 26-Pin SDIP2B Through Hole STGIB15CH60TS-L

STMicroelectronics STGIB15CH60TS-L N-Channel Array Smart Power Module is designed for high-performance motor control and power management applications. This intelligent power module integrates 6 IGBT transistors and associated control circuitry, enabling efficient conduction and switching with low losses. It supports continuous collector currents of up to 20 A with a maximum collector-emitter voltage of 600 V, ensuring robust operation in demanding industrial environments.

The module uses a 26-pin SDIP2B through-hole package suitable for easy PCB mounting and assembly. Its compact size (38 mm × 24 mm × 3.5 mm) allows integration into space-constrained systems. Operating temperature ranges from -40°C to 125°C, making it reliable across a wide spectrum of conditions.

The STGIB15CH60TS-L features integrated protection mechanisms including undervoltage lockout and interlocking circuits that enhance system safety and prevent damage from fault conditions. Its low saturation voltage (2.1 V max) improves overall system efficiency, reducing heat dissipation and power consumption.

This module is ideal for 3-phase IGBT inverter bridges in motor drives, supporting switching frequencies up to 20 kHz with excellent EMI behavior. The SLLIMM™ technology incorporated in this module ensures low thermal resistance and enhanced durability, making it suitable for HVAC, manufacturing motors, water treatment pumps, and other industrial control systems.

The package configuration as an array with built-in driver ICs simplifies design, reducing component count and improving performance consistency. Its through-hole mounting type facilitates easier installation in existing designs or retrofits.

Features a 26-pin SDIP2B package for through-hole mounting. Includes 6 transistors arranged as an array within the module. Maximum power dissipation rated at 81 W. Operates reliably between -40°C to 125°C ambient temperature.

Low collector-emitter saturation voltage of 2.1 V ensures energy efficiency. Designed to enhance motor drive application efficiency up to 20 kHz switching frequencies. Includes integrated driver ICs for gate control and freewheeling diodes.

Offers undervoltage lockout and interlocking protections for safe operation. Compact dimensions of 38 mm length, 24 mm width, and 3.5 mm height. Suitable for industrial and commercial motor control and driver applications.

Explore the STMicroelectronics range of smart power modules and power semiconductors on EnvMart for your industrial and electronic component needs.

Explore more products in our IGBT Module category.
