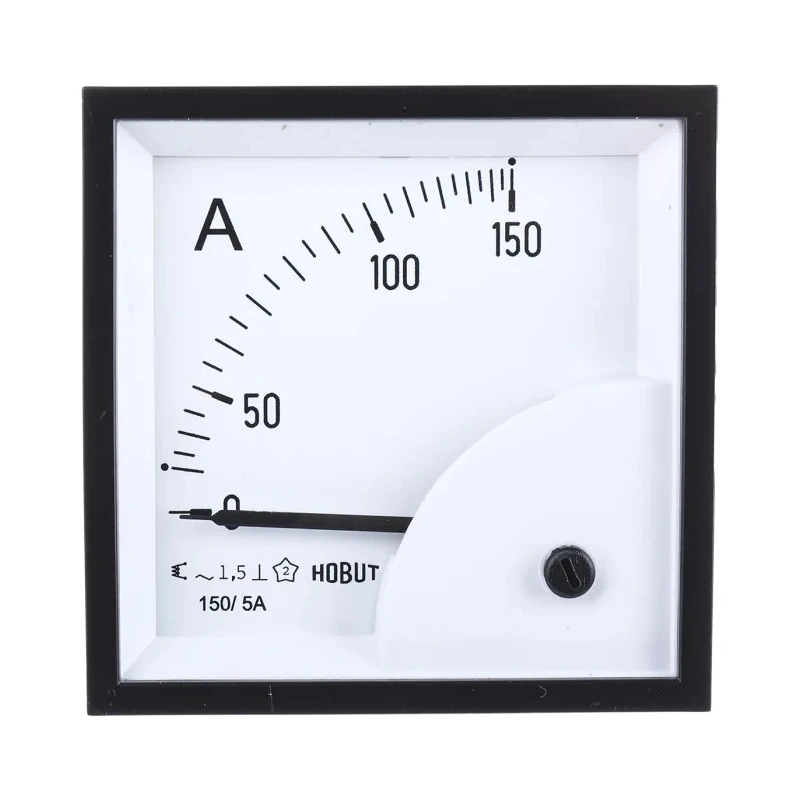

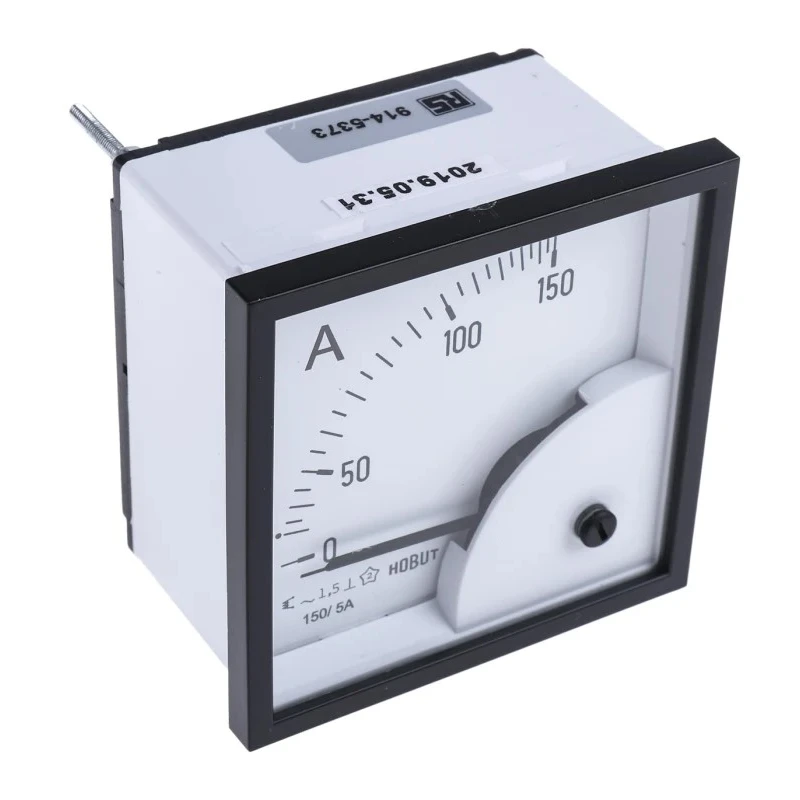

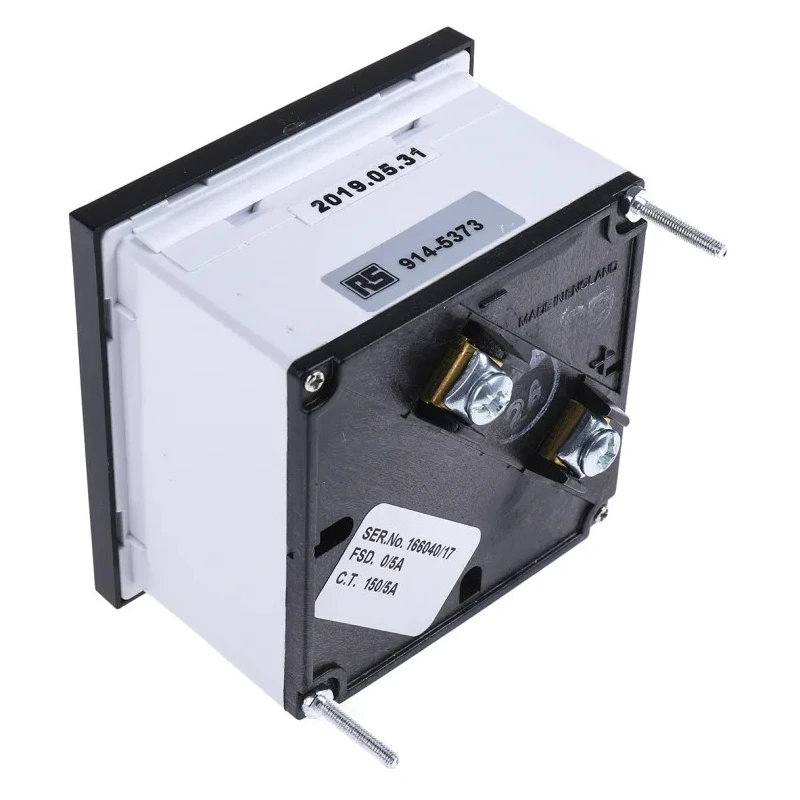

HOBUT Analogue Panel Ammeter 100 A AC/DC, CT Operated DIN Moving Iron, Accuracy Class 1.5 D72SD5A/0-150A

HOBUT D72SD5A/0-150A Analogue Panel Ammeter 100 A AC/DC is designed for precise electrical current measurement in industrial, automation, and process control environments. This CT operated moving iron ammeter provides reliable and stable analogue readings with an accuracy class of 1.5, making it suitable for both AC and DC current monitoring.

The ammeter features a flame retardant case compliant with UL 94 V0 standard for enhanced safety. It is manufactured to meet BS89 and IEC51 standards, assuring quality and durability. The device has a robust operating temperature range from -25°C to +40°C, enabling it to function effectively in diverse ambient conditions.

Its panel cut out dimensions of 68 x 68 mm and 92 x 92 mm allow flexible mounting options in control panels. The 90° scale arc layout ensures clear and easy-to-read analogue display for operators. Overload capability is rated at 10 times the full scale deflection for up to 5 seconds, accommodating short-term current surges.

This ammeter is compatible with current transformers having 5A secondary current and is supplied with mounting brackets for convenient installation. Terminal covers are sold separately, enhancing installation safety.

Suitable for AC/DC current measurement applications in electrical, industrial automation, and process control systems. Incorporates CT operated DIN moving iron technology for reliable readings. Conforms to multiple international standards including IEC 51, BS 89, DIN 43700, and ES50-2.

Operating temperature range of -25°C to +40°C ensures versatile use conditions. Overload rating of 10x full scale deflection for 5 seconds increases equipment protection. Flame retardant UL 94 V0 case enhances user safety.

Panel cut out sizes support standard mounting dimensions. Supplied with mounting brackets for straightforward installation. Ideal for applications in electrical panels, industrial automation control systems, process control instrumentation, and other environments requiring accurate current monitoring.
